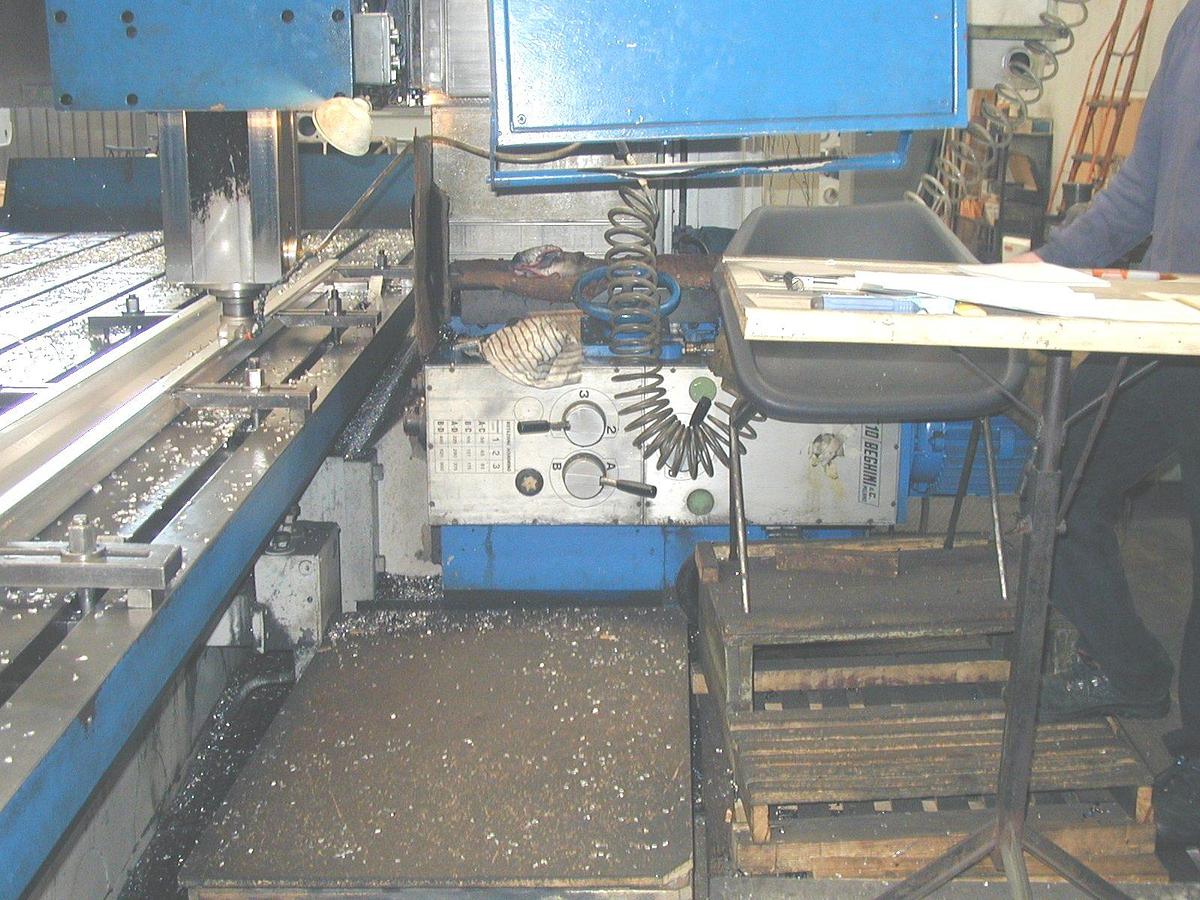

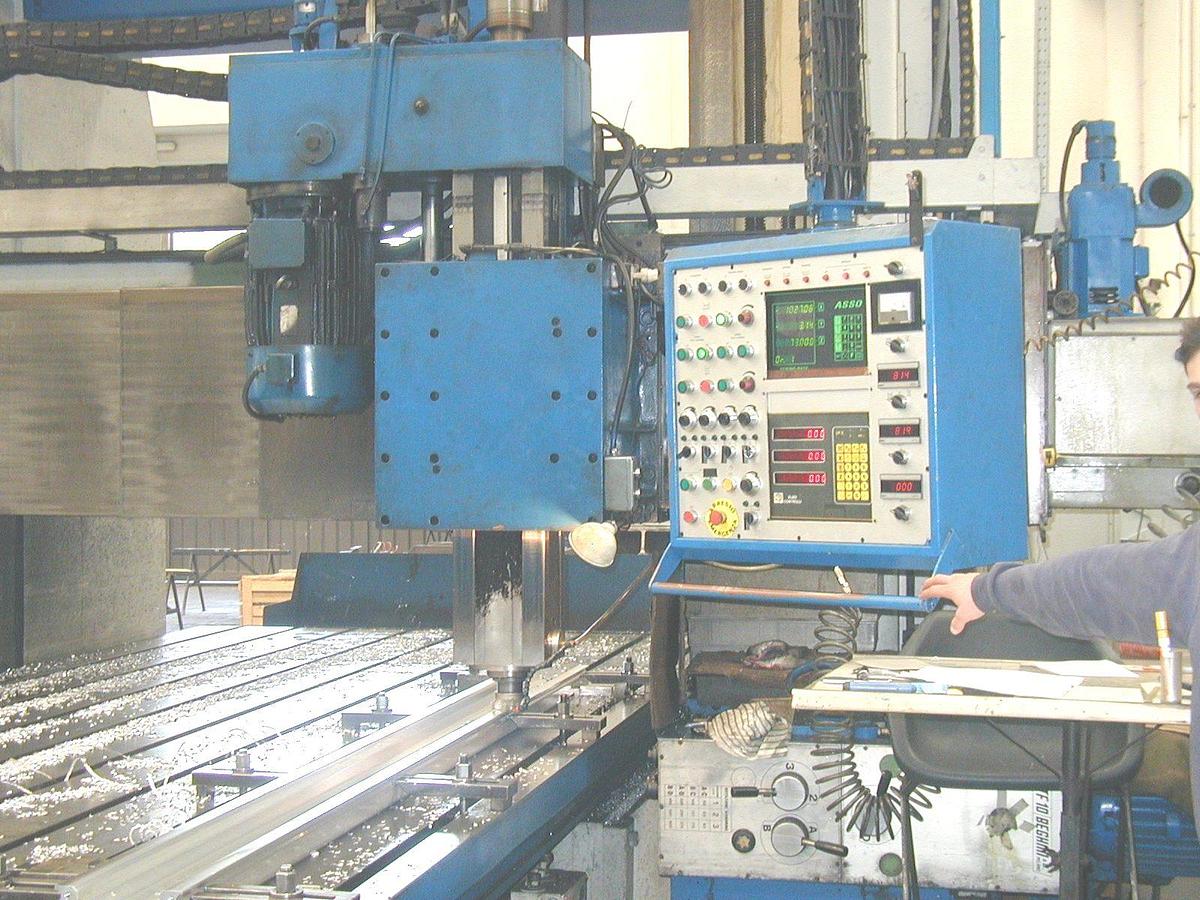

Plano Miller Pensotti

Displayed : 3 axes,

n° of vertical carriages: 1,

n° of lateral carriages : 1,

Vertical carriage head : RAM square,

Connection : ISO 50 hydraulic,

Spindle speed : 1000 rpm,

Direct current motor,

Distance between uprights : 2500 mm,

Distance between table spindle nose : 1900 mm,

Table : 6000 x 2350 mm,

Longitudinal stroke table : 7000 mm,

Vertical stroke (crossbar) : 1500 mm,

Square RAM stroke : 600 mm,

Hanging of control.
