500 tons Press Forging Hydraulic SIMPAC PH-500-HH
or
Call +919920651051

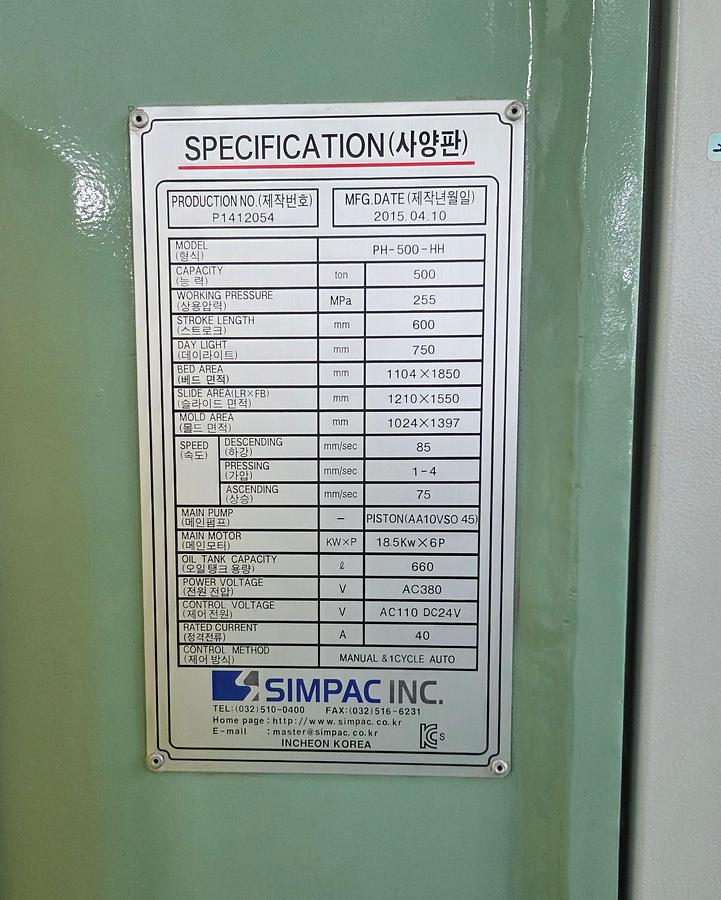

Specifications
| Manufacturer | SIMPAC |
| Model | PH-500-HH |
| Year | 2015 |
| Condition | New |
| Stock Number | MA3353 |
| Item condition | Installed under power, not working |
| Capacity tons | 500 |
Description
Capacity : 500 tons,
Working pressure : 255 MPa,
Stroke length : 600 mm,
Day light : 750 mm,
Bed area : 1104 x 1850 mm,
Slide area (LR x FB) : 1210 x 1550 mm,
Mold area : 1024 x 1397 mm,
Speed descending : 85 mm/sec,
Speed pressing : 1-4 mm/sec,
Speed ascending : 75 mm/sec,
Main pump : piston (AA10VSO 45),
Main motor : 18.5 Kw x 6P,
Oil tank capacity : 660 l,
Power voltage : AC380 V,
Control voltage : AC110 DC24V,
Rated current : 40 A,
Control method : manual & 1 cycle auto.
