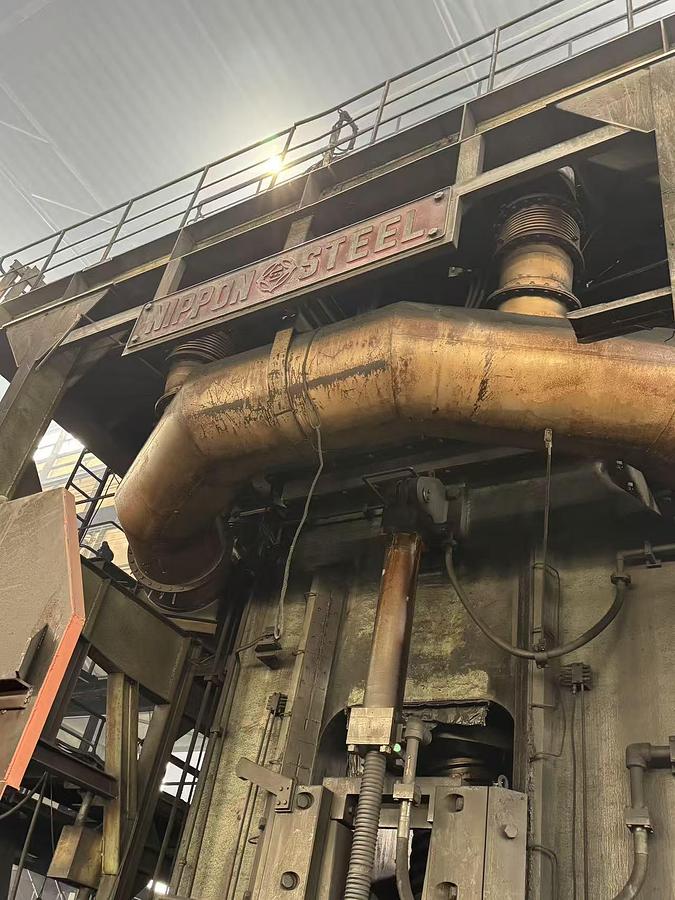

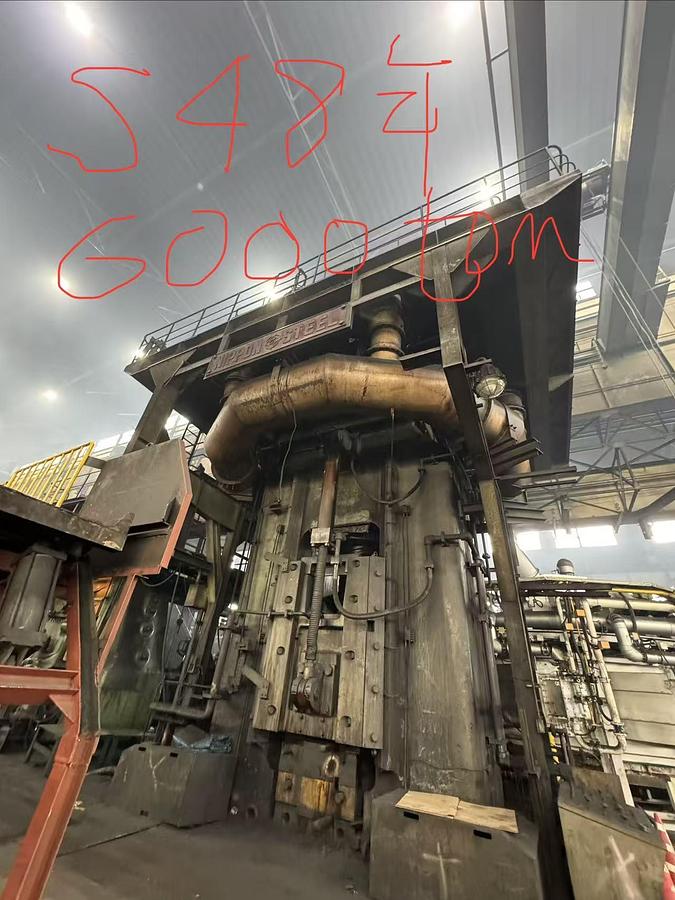

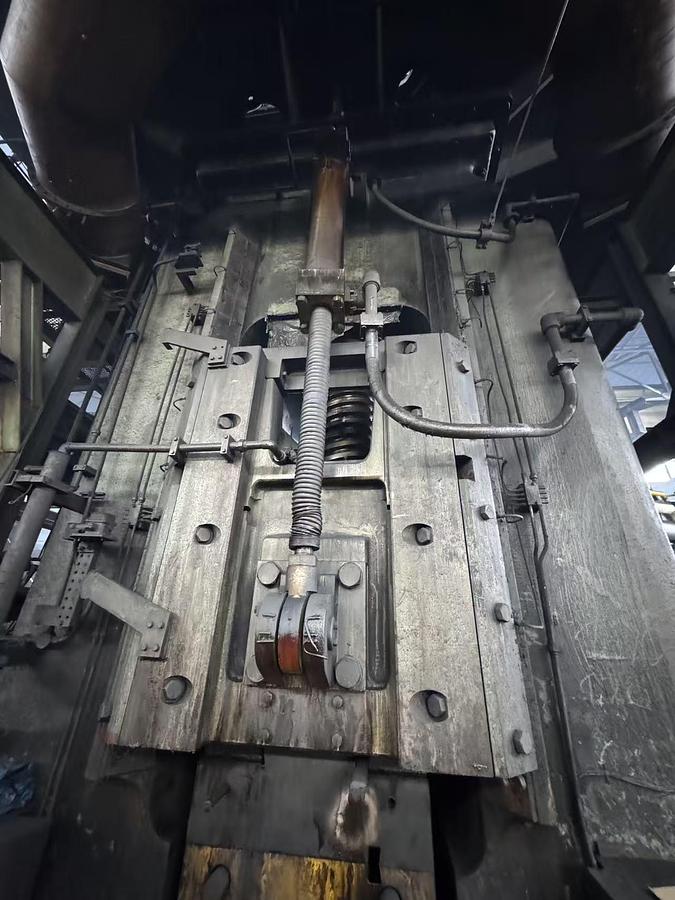

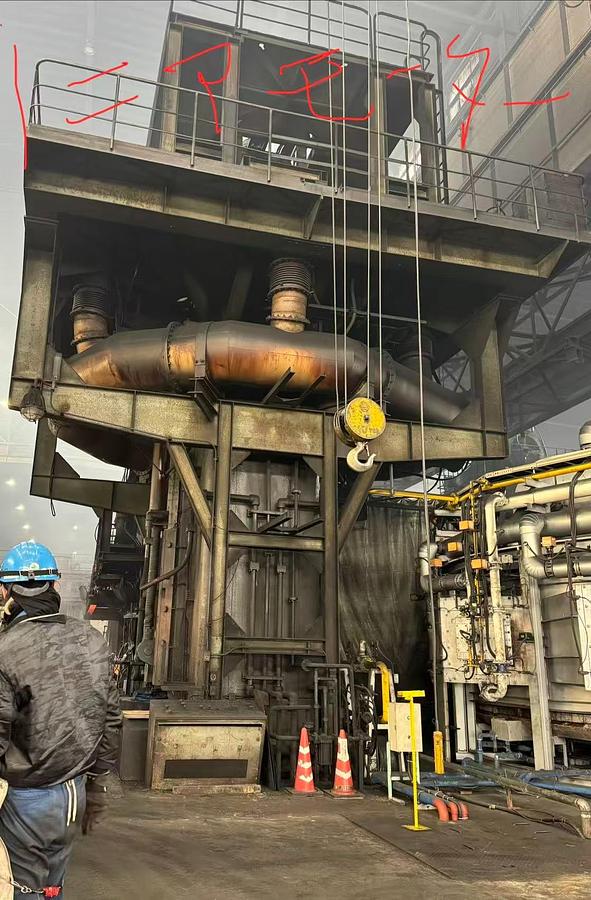

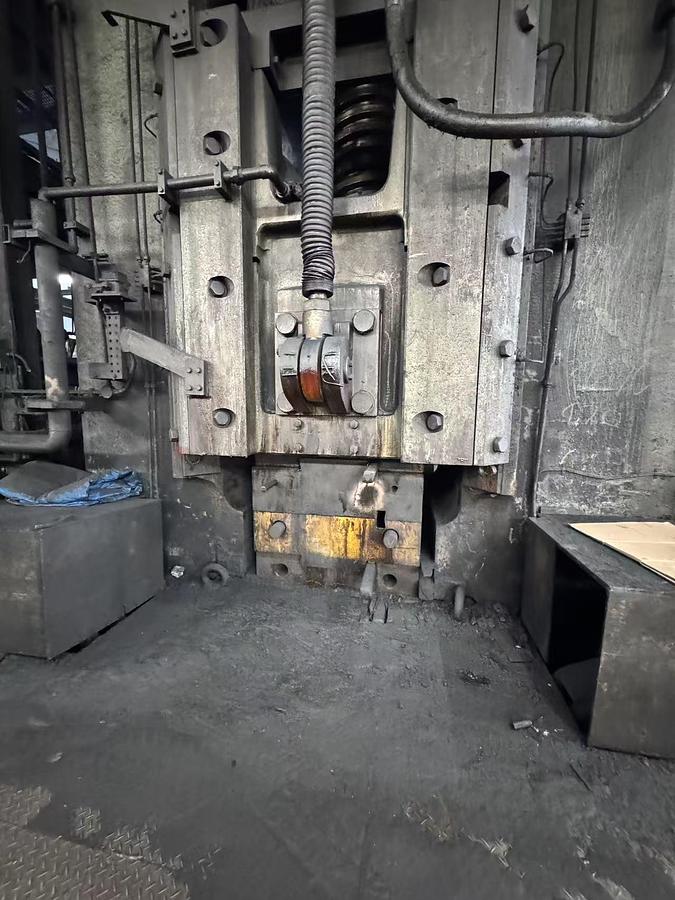

6000 tons Press Friction Screw Nippon Steel

Linear Motor-Driven Screw Press

Capacity : 6000 tons,

Screw Outer Diameter : 700 mm

Flywheel Energy : Max. 70 m-tons,

Ram Stroke : Max. 1200 mm,

Ram Downward Speed : Max. 0.45 m/sec,

Number of Strokes : 4 strokes/min (at max energy, continuous use)

Linear Motors : 475 kVA × 6 units,

Die Dimensions:

Upper Die : Max Width 1200 mm, Max Depth 1800 mm, Height 300–400 mm,

Lower Die : Max Width 1200 mm, Max Depth 1800 mm, Height 300–600 mm.
