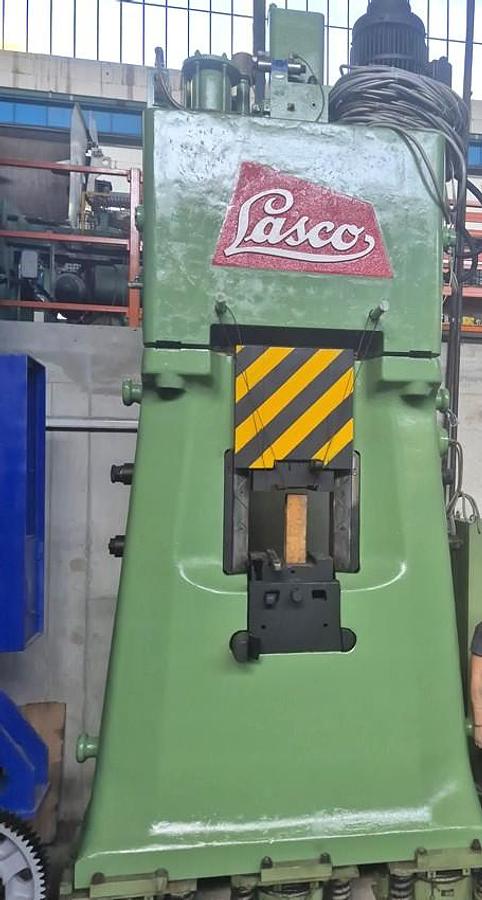

Hammer Forging Hydraulic Lasco HOU160

Energy of blow : 16 kJ,

Nominal weight of upper die : 100 kg,

Blow frequency at nominal capacity : 95 / 1 min,

Ram velocity : 5 m/s,

Ram depth 460 mm,

Ram weight : 1250 kg,

Ram stroke max. : 640 mm,

Ram stroke min. to reach max. blow energy : 480 mm,

Max. die height without dovetails : 320 mm,

Min. die height without dovetails : 160 mm,

Daylight between guides : 580 mm,

Width of frame base : 2290 mm,

Depth of frame base : 1250 mm,

Frame weight : 24 tons,

Main motor capacity : 37 kW,

Moving mass : 1350 tons,

Height above floor level : 4310 mm,

Total height : 5000 mm,

Total mass to be absorbed : 33 tons,

Total weight : 32.5 tons.
