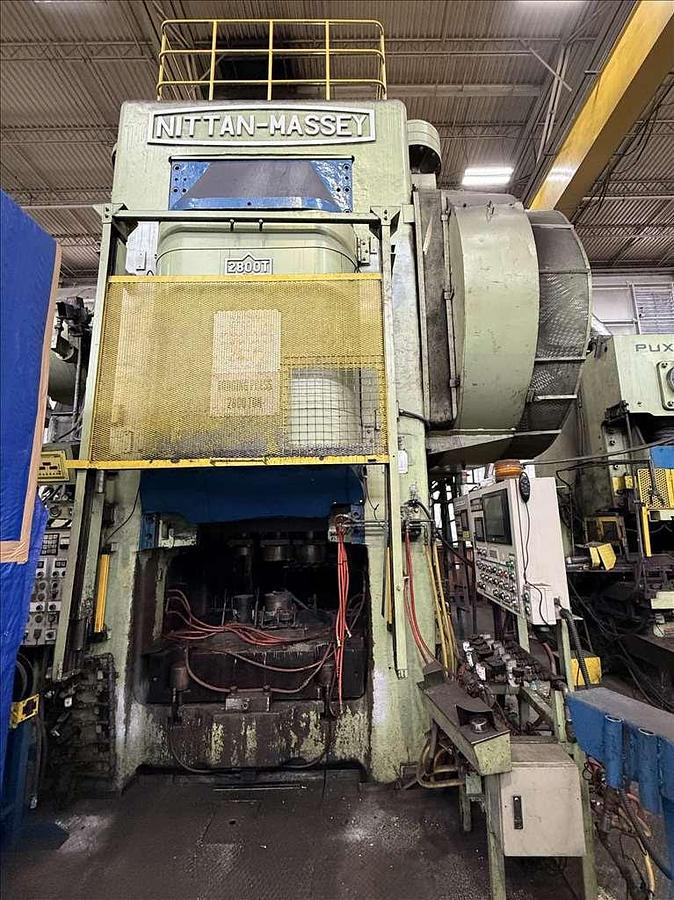

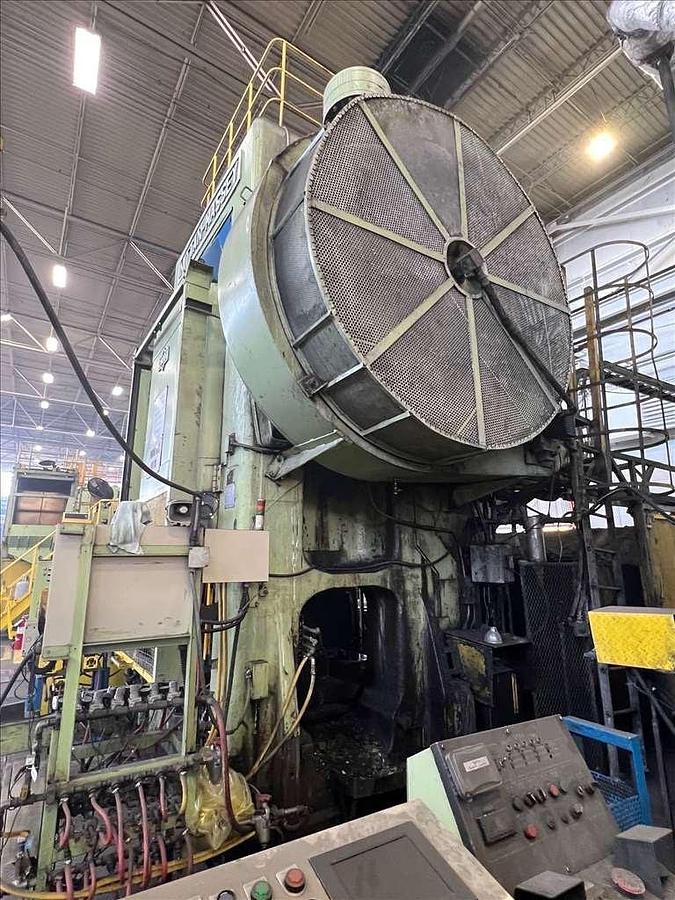

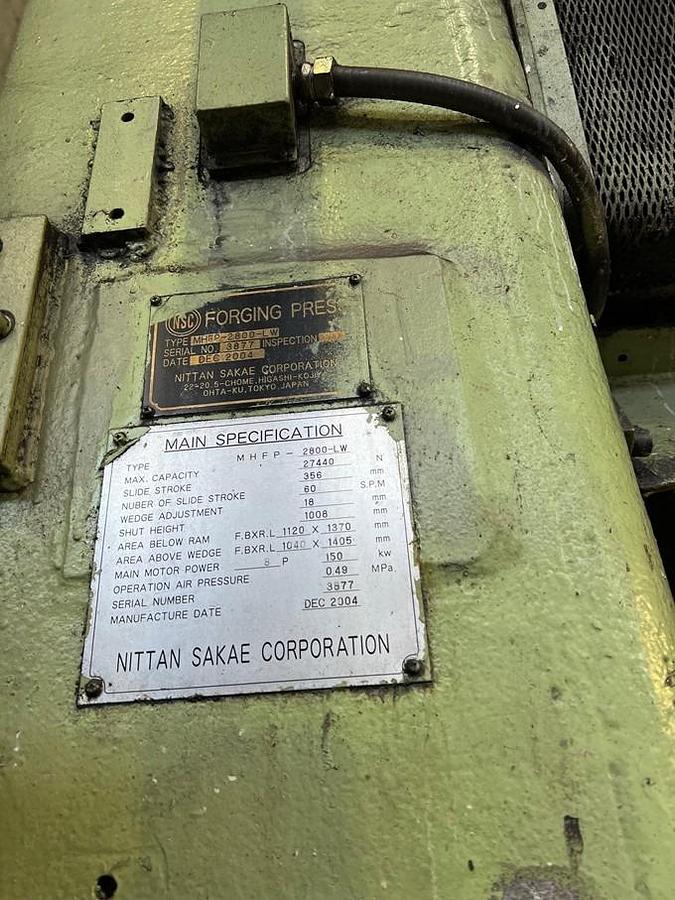

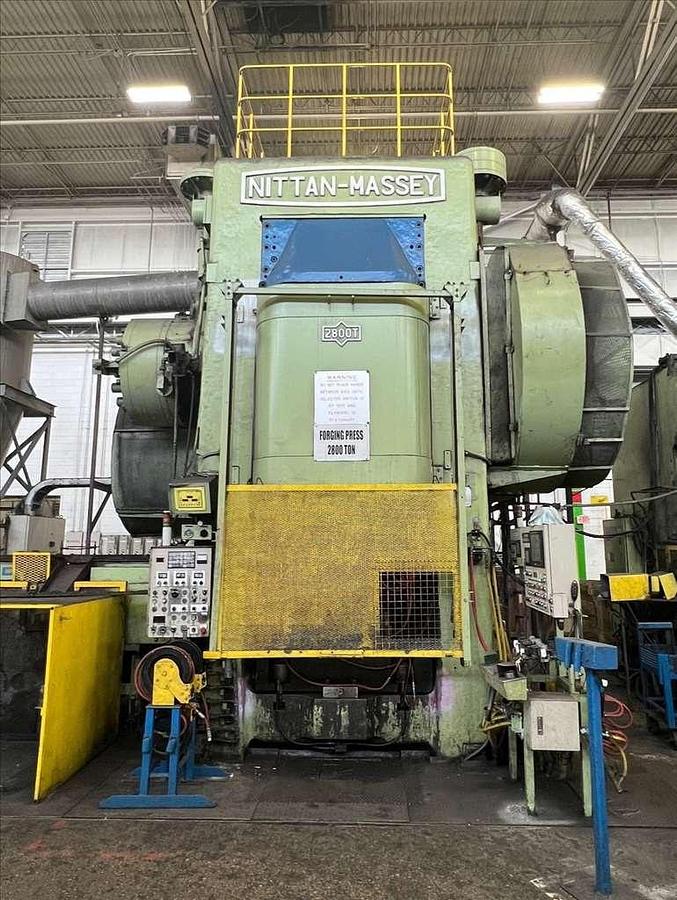

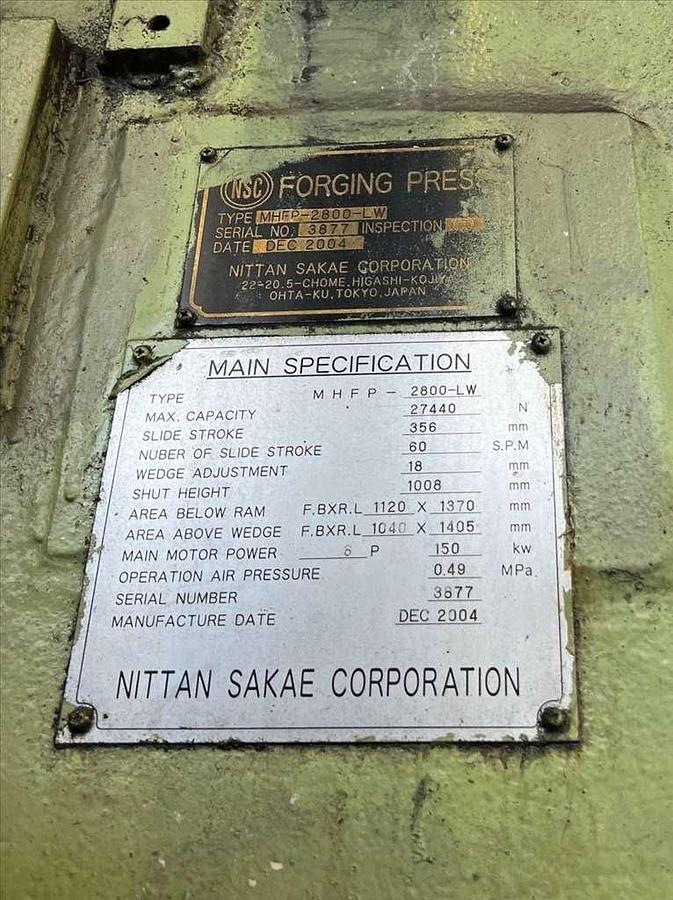

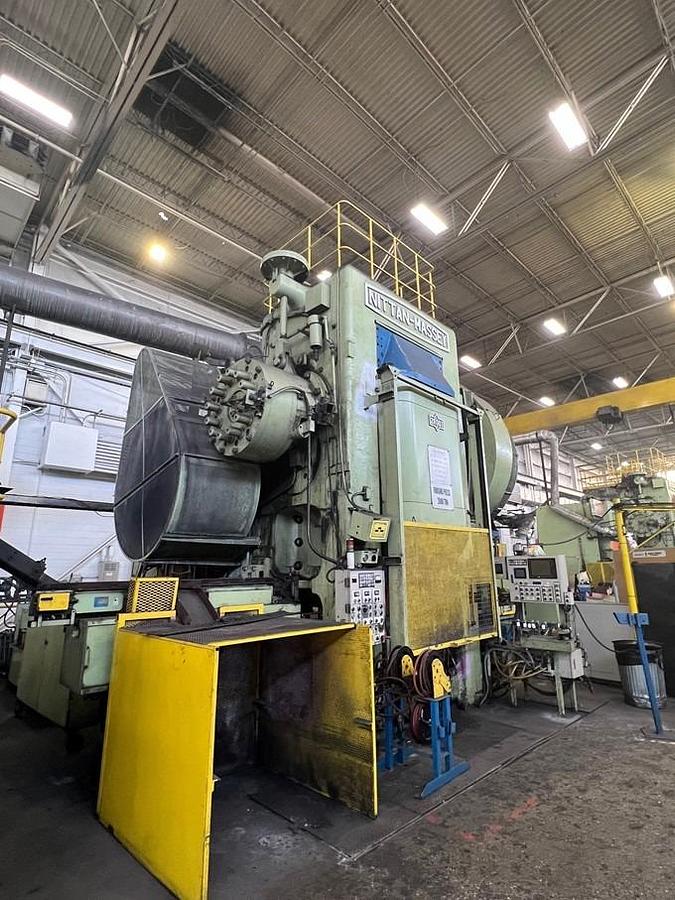

2800 tons Hot Forging Line Nittan Massey MHFP-2800LW

Capacity : 2800 tons,

Max Capacity : 27440 N,

Slide Stroke : 350 mm,

Number Of Slide Stroke : 60 SPM,

Pressing Speed : 20 RPM,

Idling Speed : 60 RPM,

Wedge Adjustment : 18 mm,

Shut Height : 990 mm,

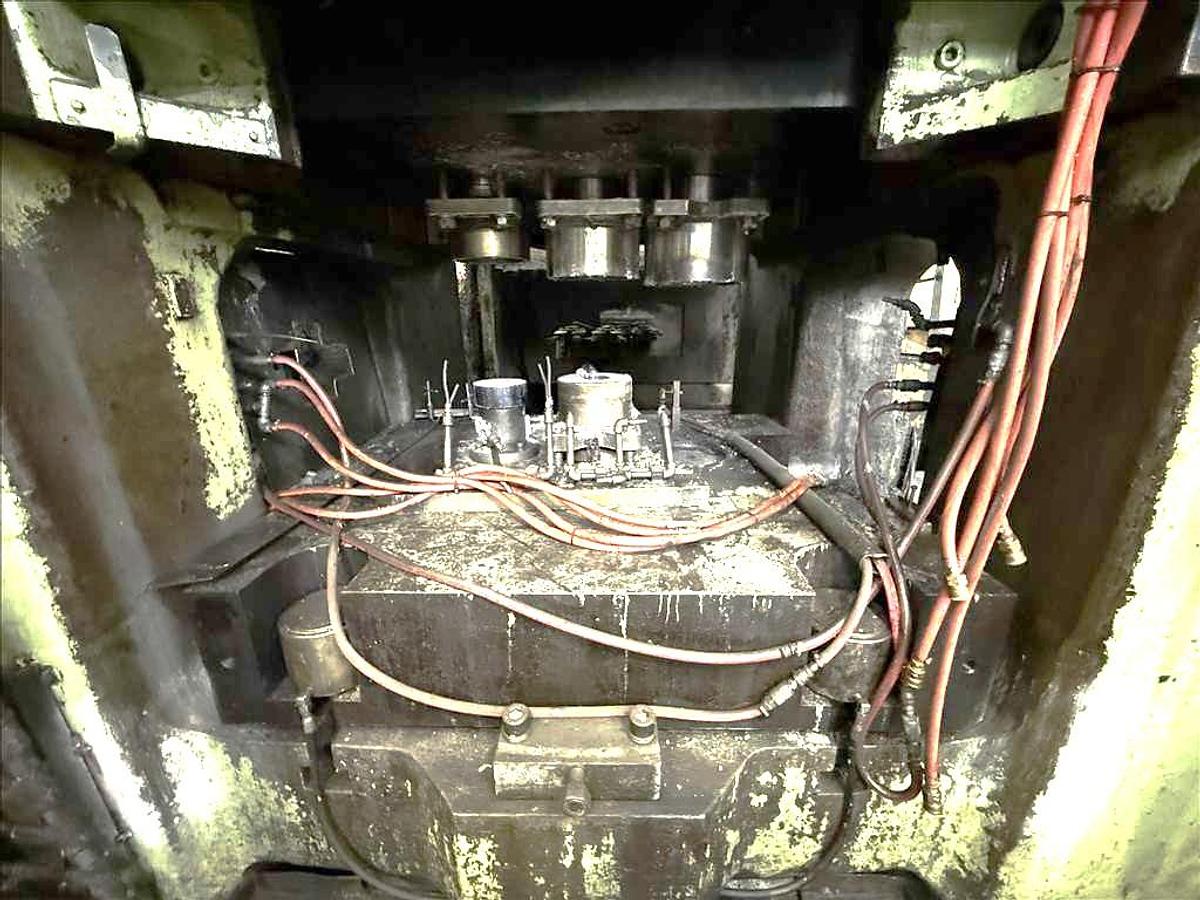

Area Below Ram (FB x RL) : 1120 x 1370 mm,

Area Above Wedge (FB x RL) : 1025 x 1385 mm,

Main Wedge Adjustment : 17.5 mm,

Upper Ejector Stroke : 35 mm,

Table Lot Ejector : 67.5 mm,

Motor : 201 HP,

Required air pressure : 0.49 MPa (5.0kg/cm²)

flywheel energy : 1901200 Nm (194000 kg.m)

Fully equipped machine weight : 183.2KN (187 tons)

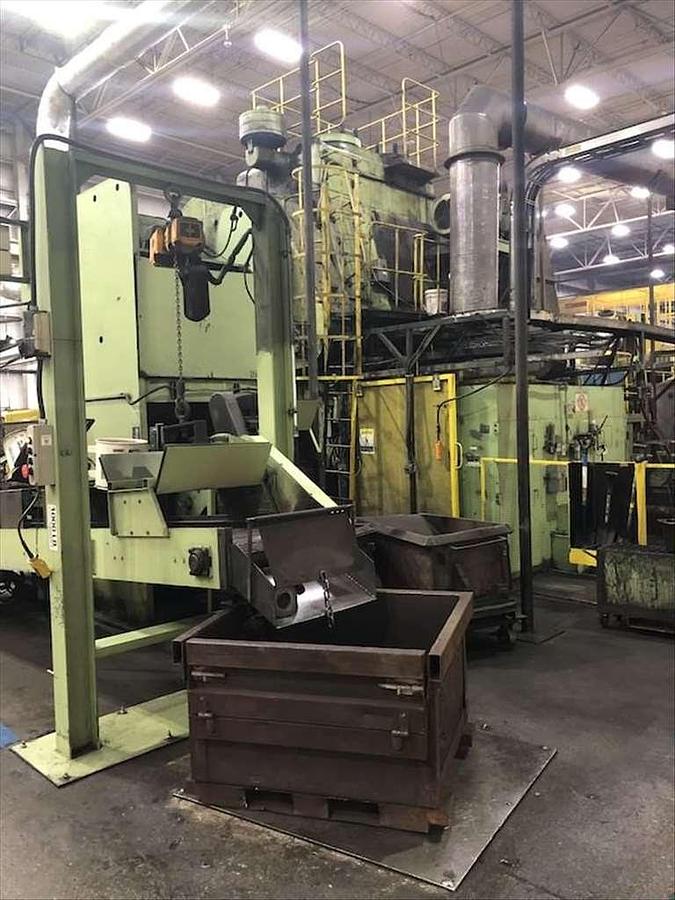

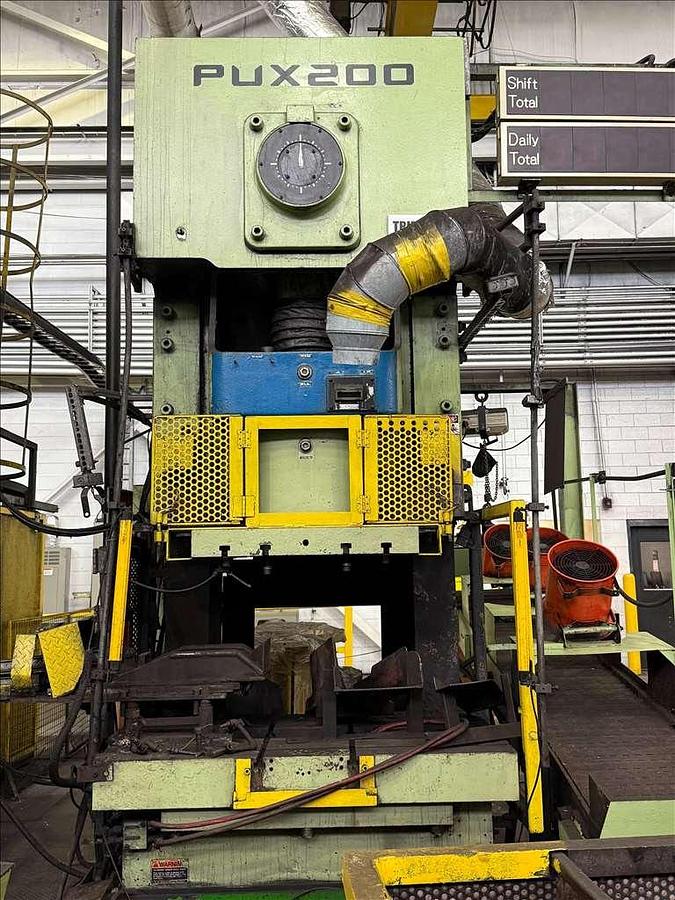

Trimming Press

Make : Amada,

Model : PUX 200,

Capacity : 200 tons.

Billet Loader

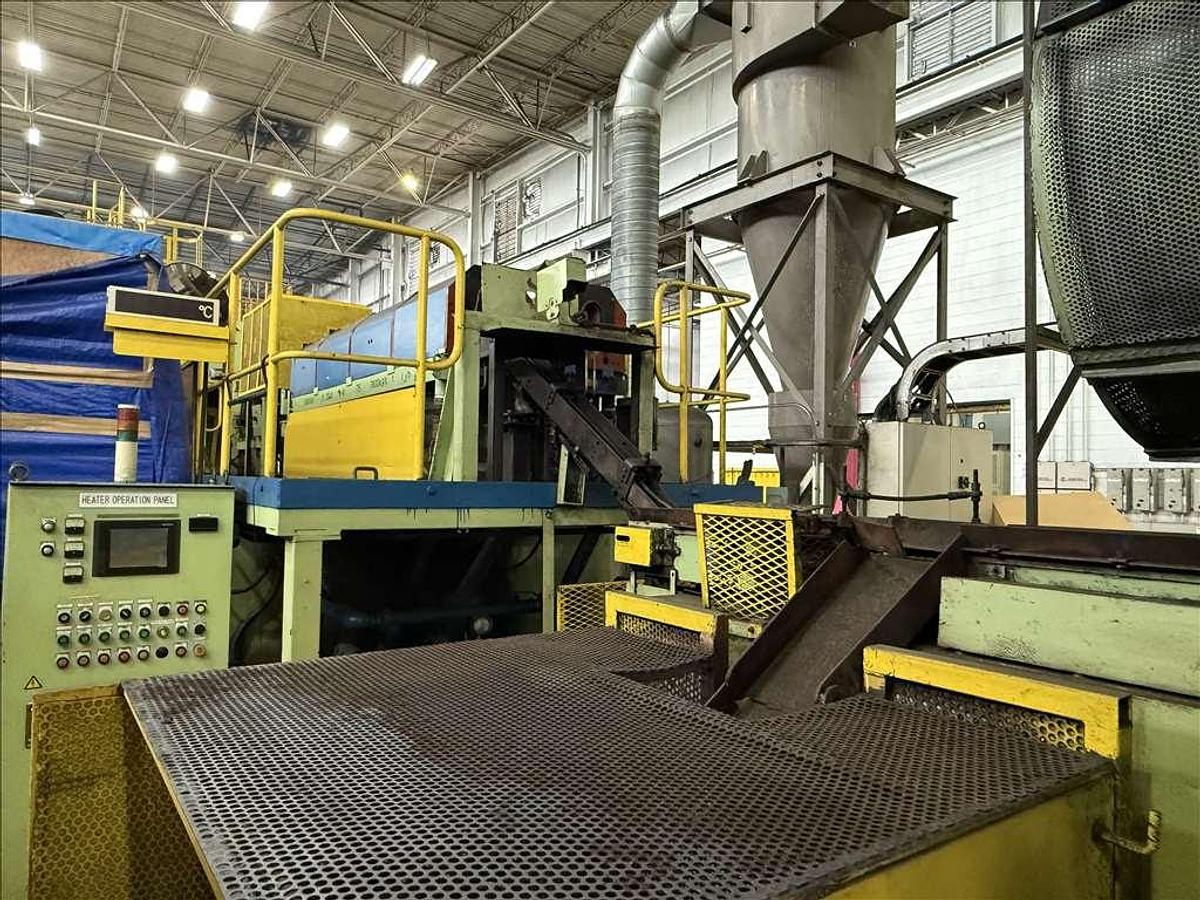

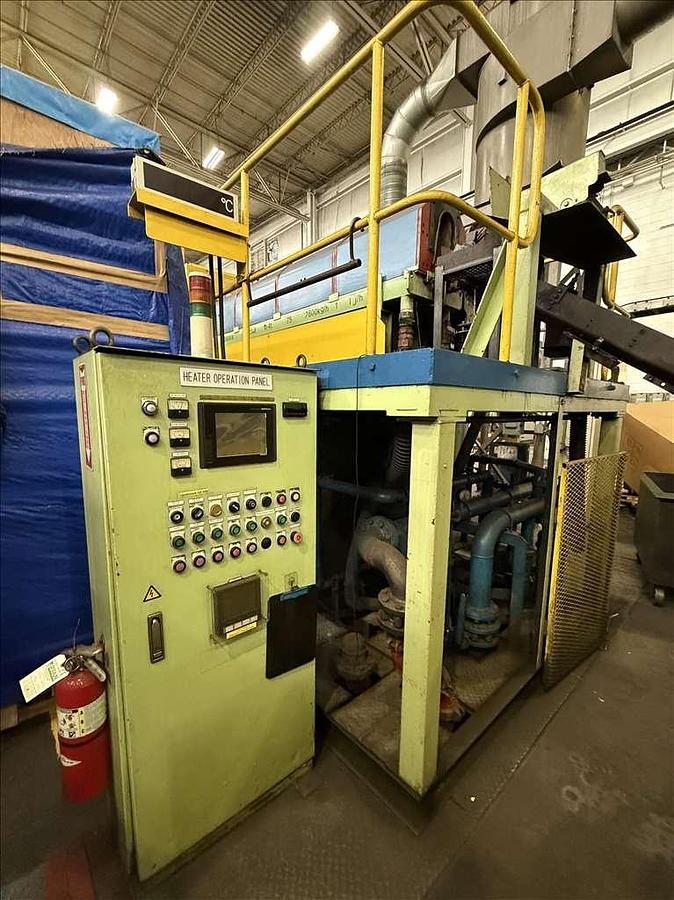

Mitsui-Elphiac 1000 kW Induction Heating Equipment

Manipulator

Cooling Conveyor
