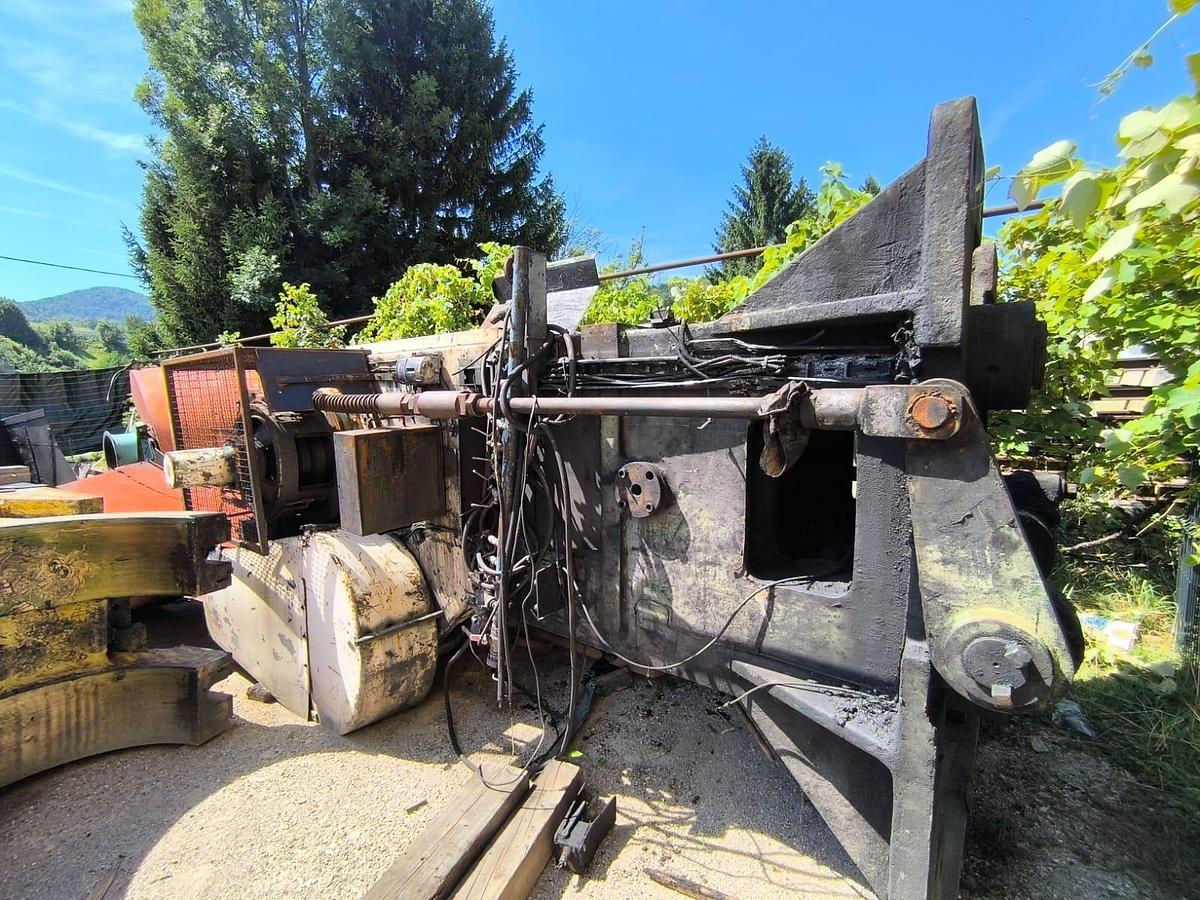

630 tons Press Friction Screw Hasenclever VEPE630-800-180

Capacity : 630 tons,

Eccentric shaft diameter at bearing journal : 265 mm,

Frame tie-rod diameter (thread M160x6) : 160 mm,

Max. clutch torgue : 22400 mkg,

Max. force at mid-stroke : 200 tons,

Clear distance between uprights (frame opening) : 850 mm,

Table surface :

Left to right : 800 mm,

Front to back :750 mm,

Ram Slide surface :

Left to right : 800 mm,

Front to back : 670 mm,

Ram stroke : 180 mm,

Height adjustability of table support surface : 20 mm,

Clear height between table plate and ram clamping surface at bottom dead center (minimum clear height)

Minimum (at highest table setting) : 560 mm,

Maximum (at lowest table setting) : 580 mm,

Number of strokes : approx. 118/min,

Motor power : approx. 40 PS,

Motor speed : approx. 1500 / min,

Requirement compressed air pressure for clutch operation : approx. 5.5,

Weight : approx. 29 tons.
