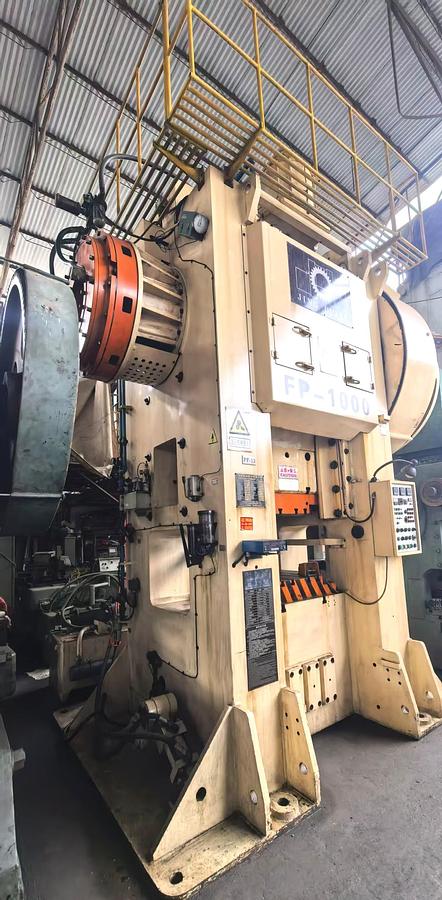

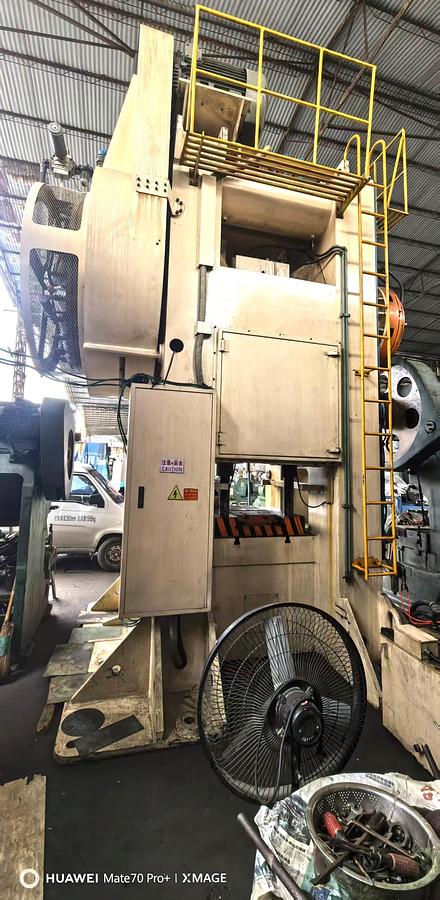

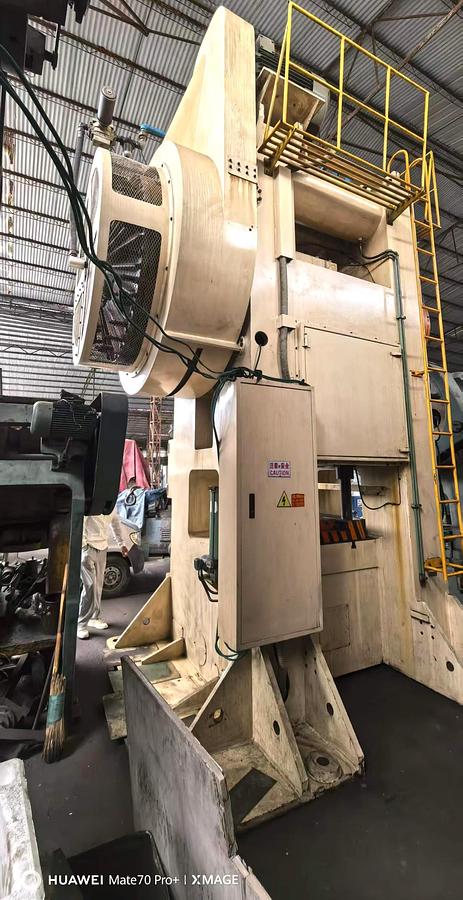

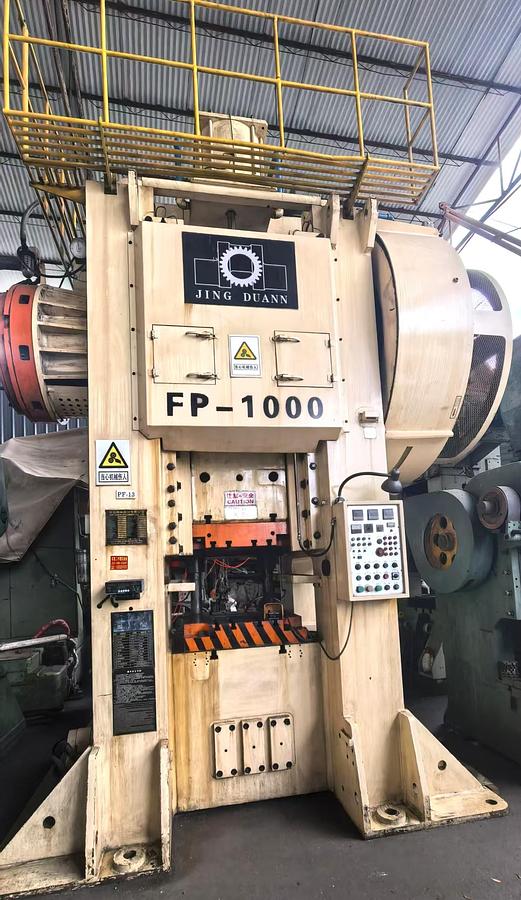

1000 tons Press Hot Forging Jing Duann FP1000

Capacity : 1000 tons,

Slide stroke : 250 mm,

Stroke per minutes : 85 SPM,

Effective working stroke : 18 SPM,

Slide adjustment : 10 mm,

Max. die height : 700 mm,

Rating point (tonnage point) : 5 mm,

Slide area (LR x FB) : 945 x 800 mm,

Bolster area (LR x FB) : 1100 x 1050 mm,

Side window size (LR x UD) : 700 x 650 mm,

Main motor : 75 hp x 8p HP,

Slide adjustment motor : 0.75kw x 4p kW,

Lubrication motor : 0.1kw x 4p kW,

Upper ejector capacity - stroke : 8 x 30 ton - mm,

Lower ejector capacity - stroke : 50 x 40 ton - mm,

Air pressure required : 5 kg/cm2,

Machine dimensions (L x W x H) : 2500 x 4100 x 5700 mm,

Machine weight : 72 tons.
