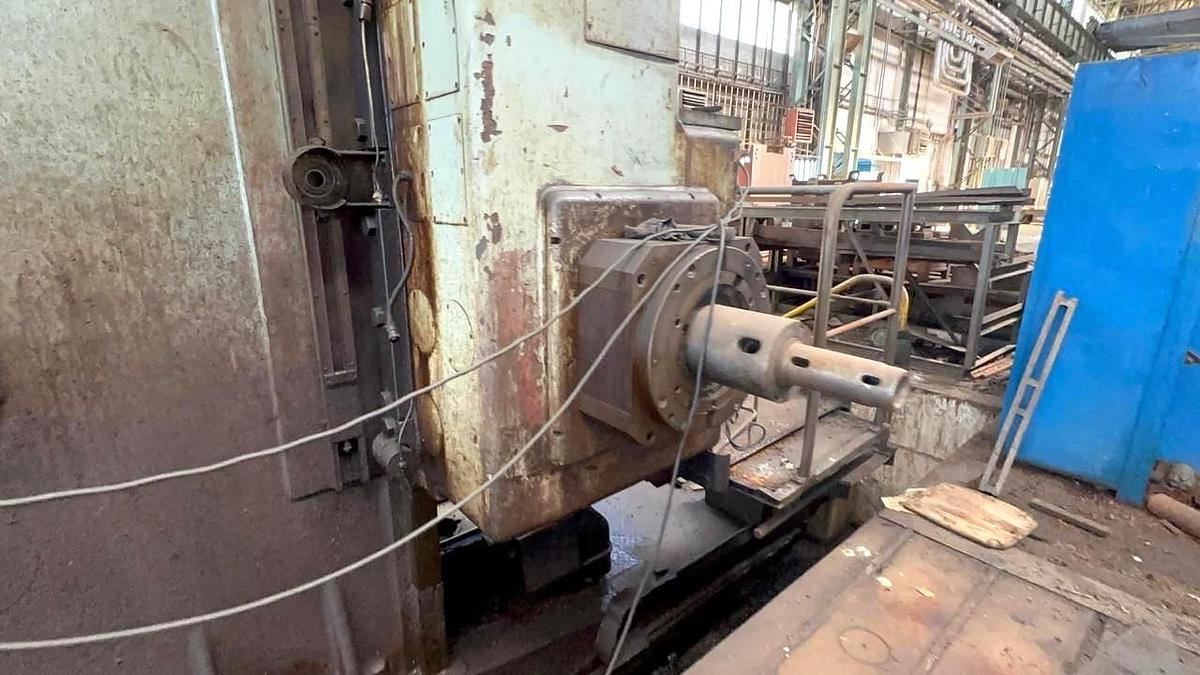

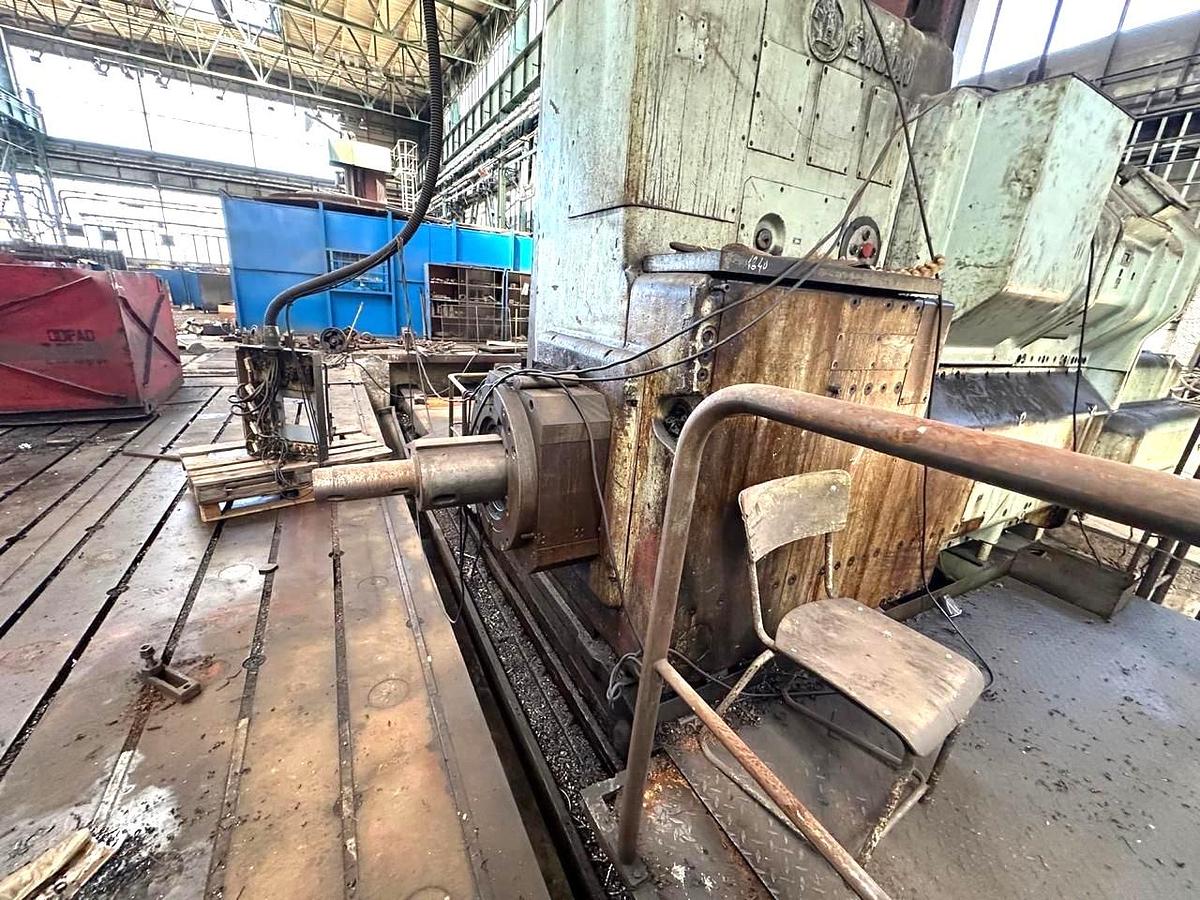

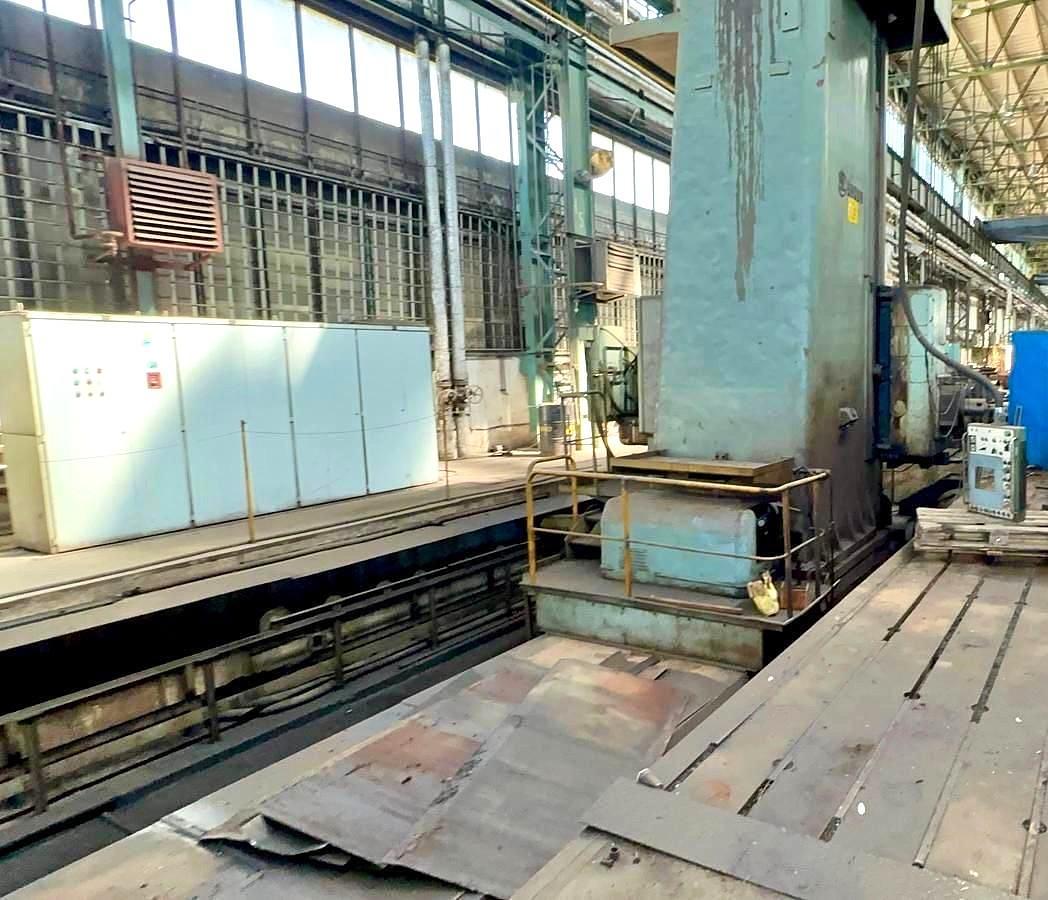

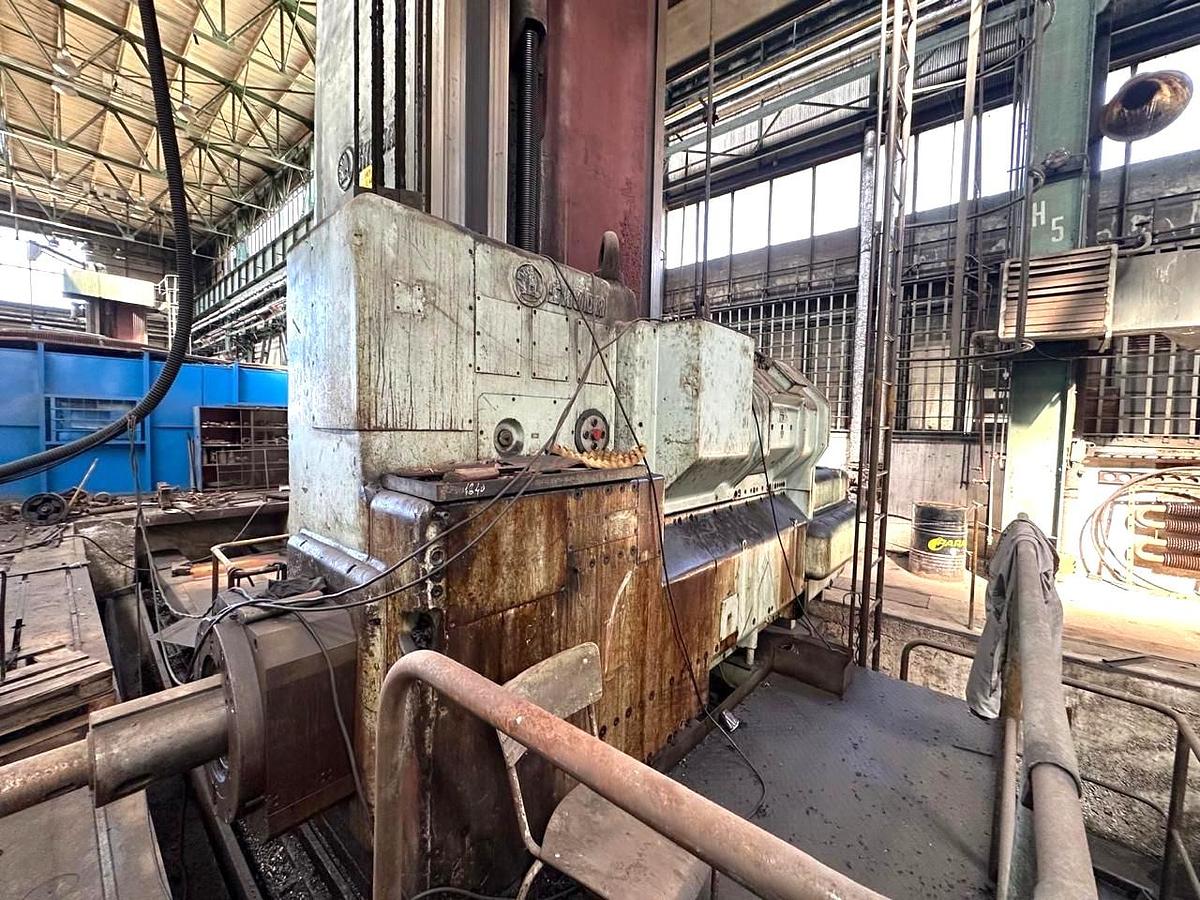

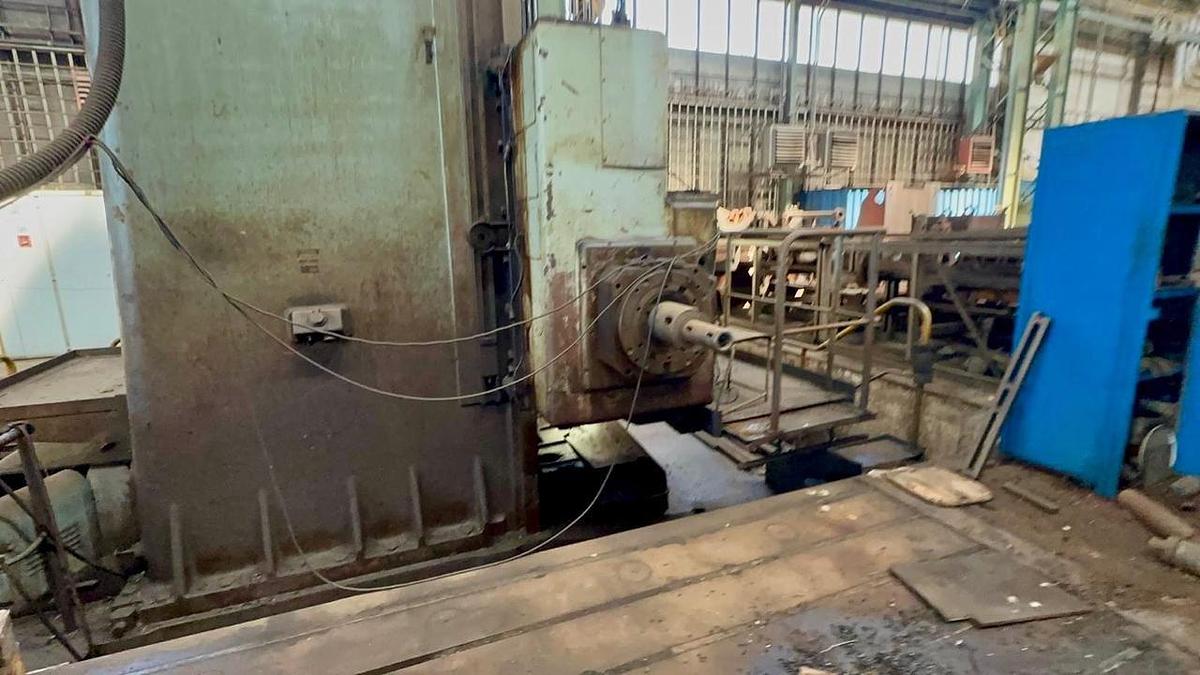

Borer Horizontal Ram Type W200G

Spindle diameter : 200 mm,

Cone Spindle ISO : 60,

X travel : 5000 mm,

Y travel : 3200 mm,

Z travel : 1250 mm,

Quill size (W x H) : 520 x 520 mm,

Maxim. depth mm boring spindle : 2000 mm,

Maxim. quill nomination : 1600 mm,

Spindle stock on the counter : 4000 mm,

Moving the rack on the frame : 40000-20000 (8000) mm,

The height of the frame : 550 mm mm,

Width rails bed : 2000 mm,

The width of the rack rails : 1700 mm,

Weight of the machine is mainly manufacturing : 86.2 tons,

The total capacity of the machine : 180 kVA,

Drive power : 77 kW,

Rotary table for horizontal boring machine E20,

Clamping surface of table : 2000 x 2000 mm,

Bed length : 3000 mm,

Width rails bed : 1430 mm,

Table height : 890 mm,

Table width : 2766 mm,

Moving the table on the frame : 1200 mm,

Traverse f mm 1450 mm / min

2,8-8-22,4 (50 G)  3,4-9,6-27,6 (60 G),

Rotational supply. mm / min.,

3,5-10,4-30,5 (50 G)   4,6-12,5-36,6 (60 G),

Accelerated longitudinal movement mm / min. 1265 (50 G)   1530 (60 G),

Accelerated rotational movement of £ 1,450 mm...mm / min : 1,665 (50 G)  2000 (60 G),

Electric motor for feed : 4 kW,

The speed of the motor rev / min : 1420 (50 G),

1720 (60 G)

Maximum table load : 20 tons,

Power: 83 kW,

Weight table : 100 tons.

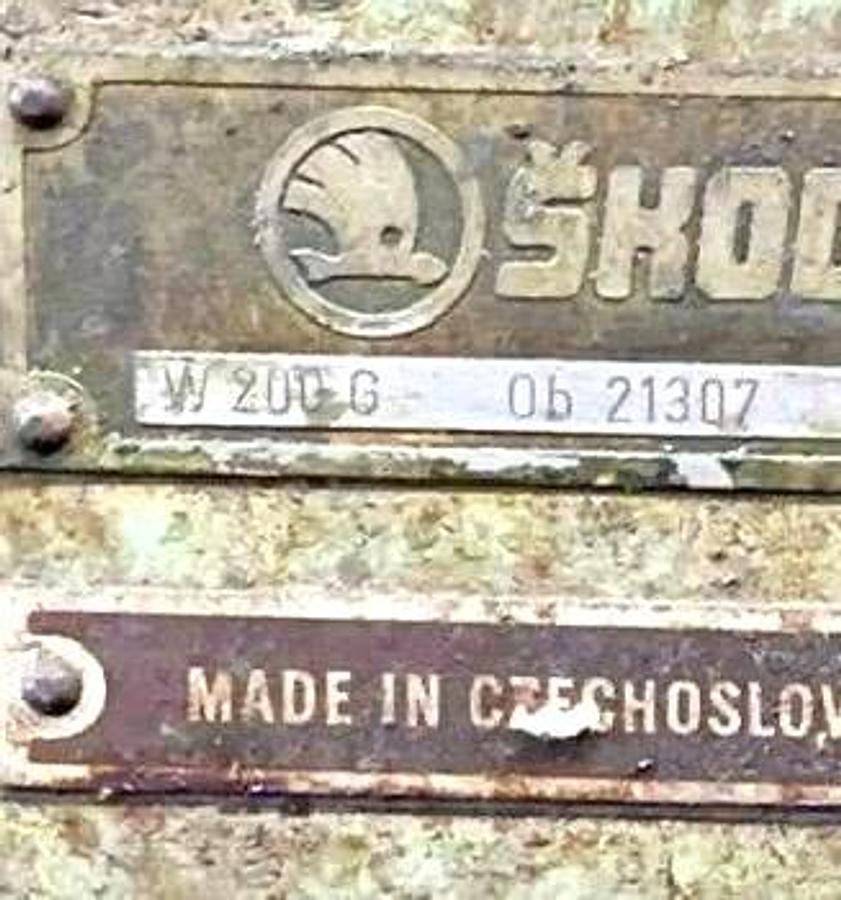

• Origin: Czechoslovakia

Suitable for heavy engineering, steel, railways, turbine, fabrication, and large machining operations
