Sheet Stamping Line Mechanical Kukil 300-300-400-300-400
Specifications
| Manufacturer | Kukil |
| Model | STD-400N |
| Condition | Used |
| Stock Number | MA3427 |
| Item condition | Good condition |
| Capacity tons | 400 |
Description

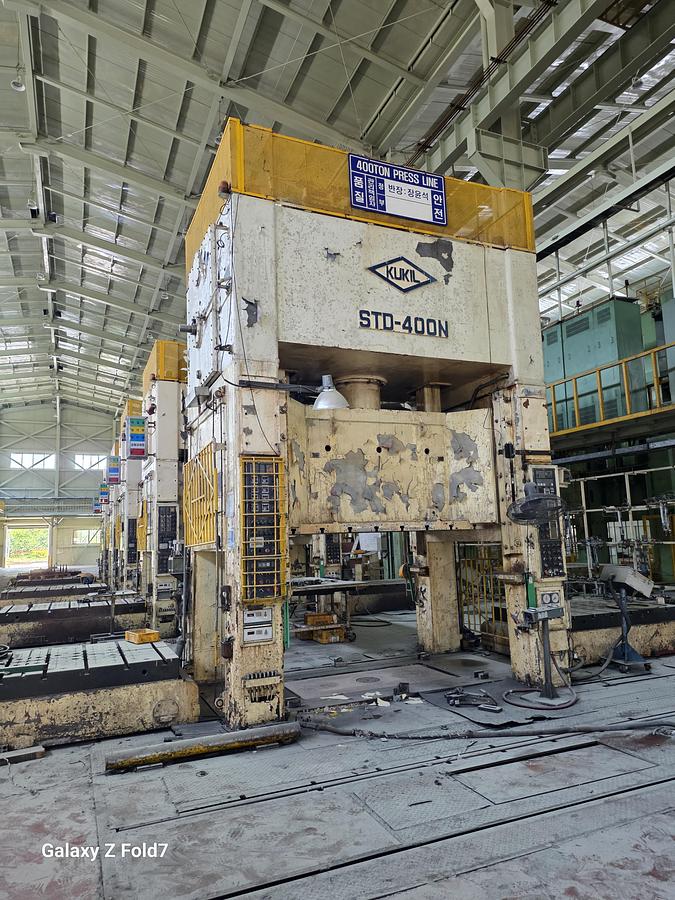

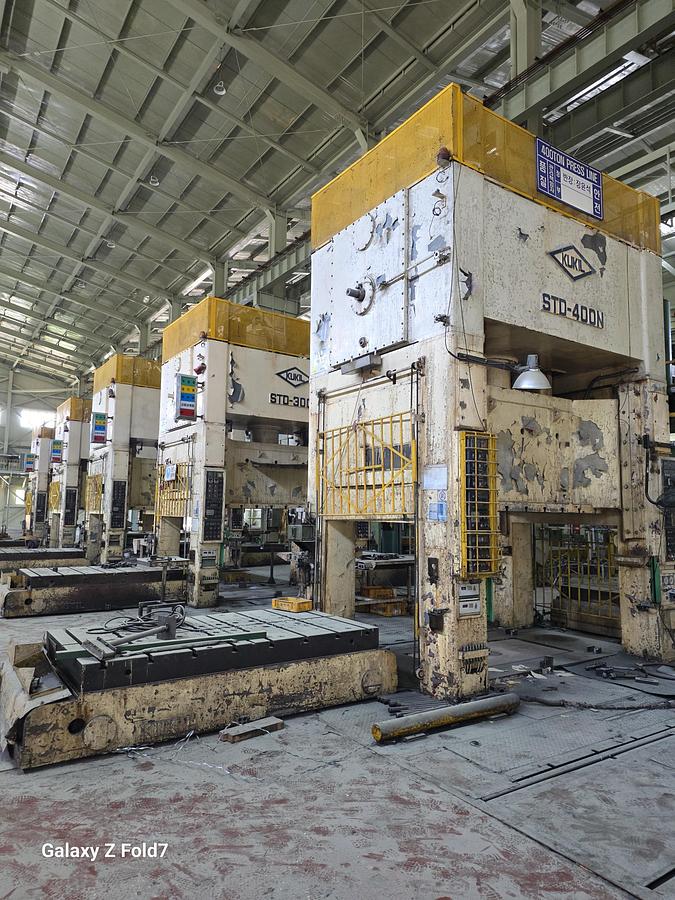

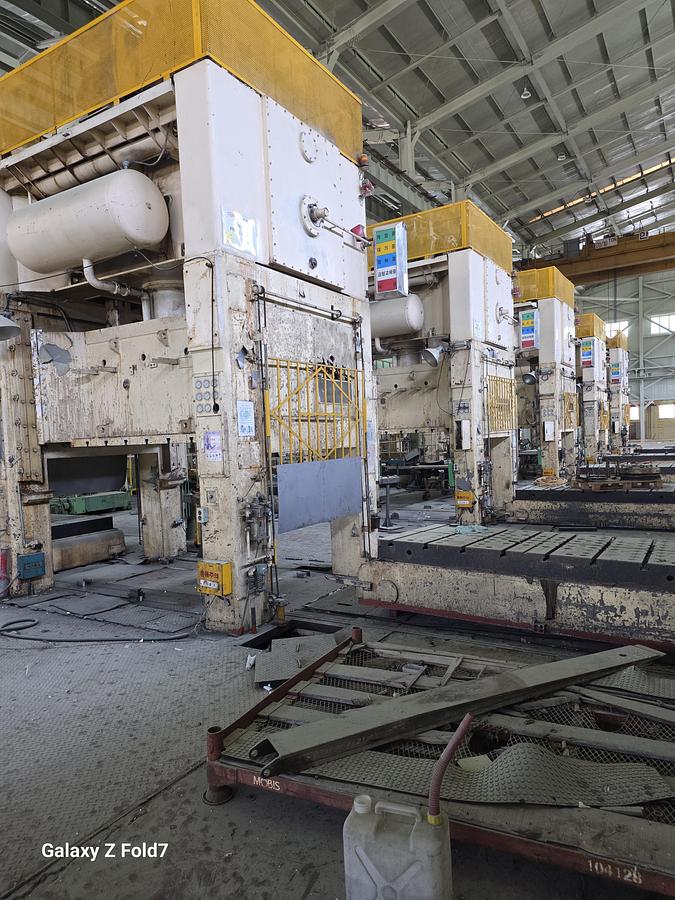

Kukil Tandem Line (300-300-400-300-400 Ton) with all existed accessories.

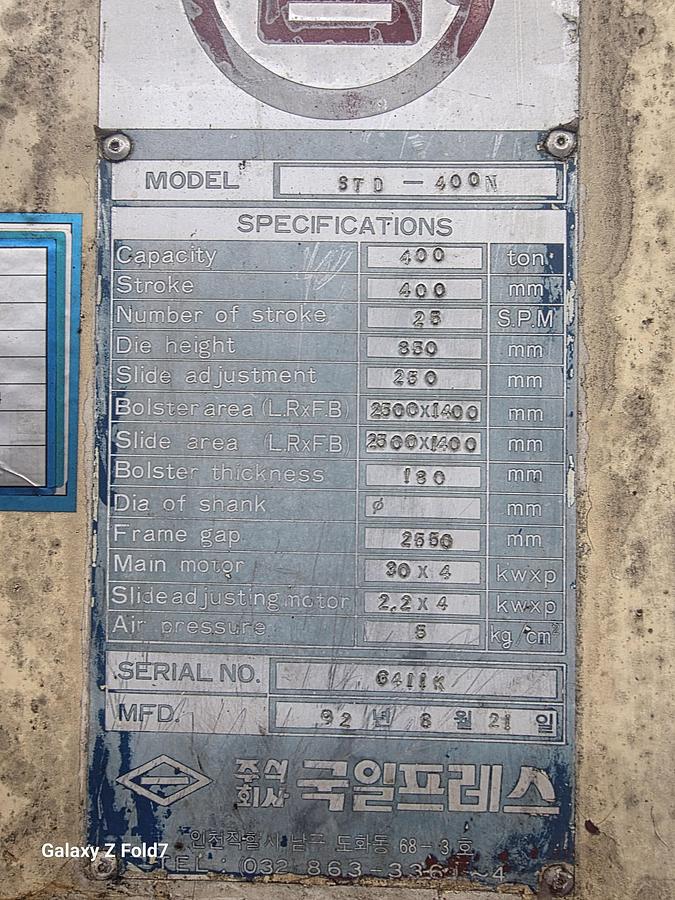

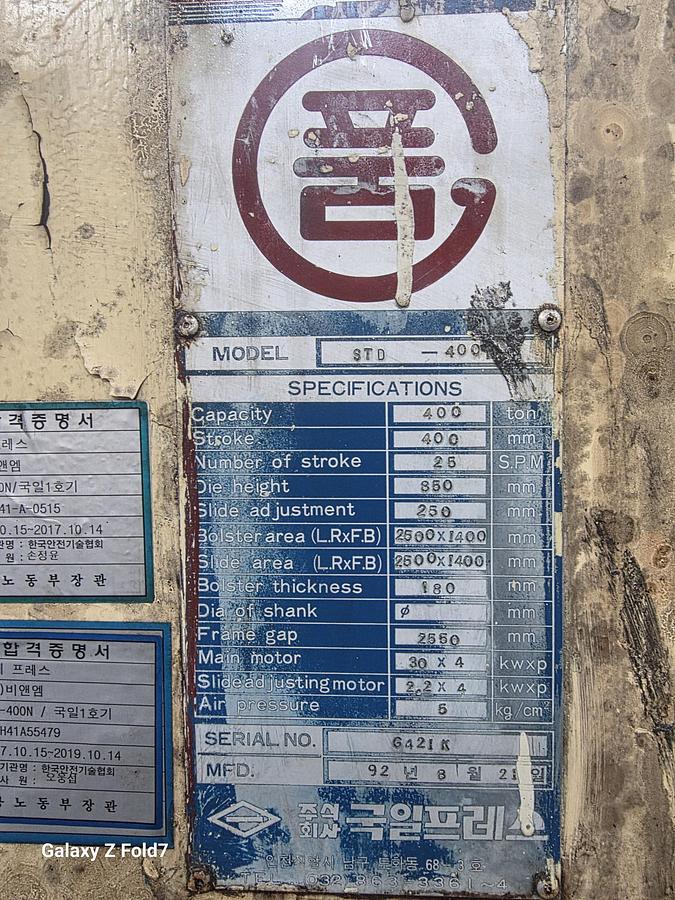

1. Capacity : 400 tons,
Model : STD-400N,
Stroke : 400 mm,
Stroke per minutes : 25 SPM,
Die height : 850 mm,
Slide Adjust : 250 mm,
Bolster area : 2500 x 1400 mm,
Bolster thickness : 180 mm,
Frame gap : 2550 mm,
Main motor : 30 x 4 Kw x p,
Slide adjusting motor : 2.2 x 4 Kw x p,
Air Pressure : 5 kg/cm2
2. Capacity : 400 tons,
Model : STD-400N,
Stroke : 400 mm,
Stroke per minutes : 25 SPM,
Die height : 850 mm,
Slide Adjust : 250 mm,
Bolster area : 2500 x 1400 mm,
Bolster thickness : 180 mm,
Frame gap : 2550 mm,
Main motor : 30 x 4 Kw x p,
Slide adjusting motor : 2.2 x 4 Kw x p,
Air Pressure : 5 kg/cm2

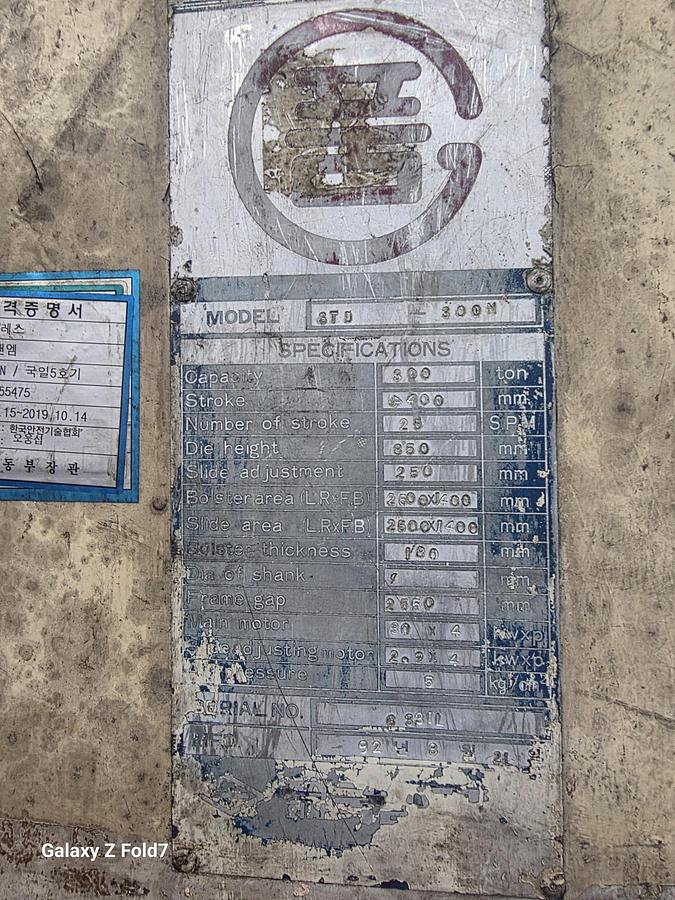

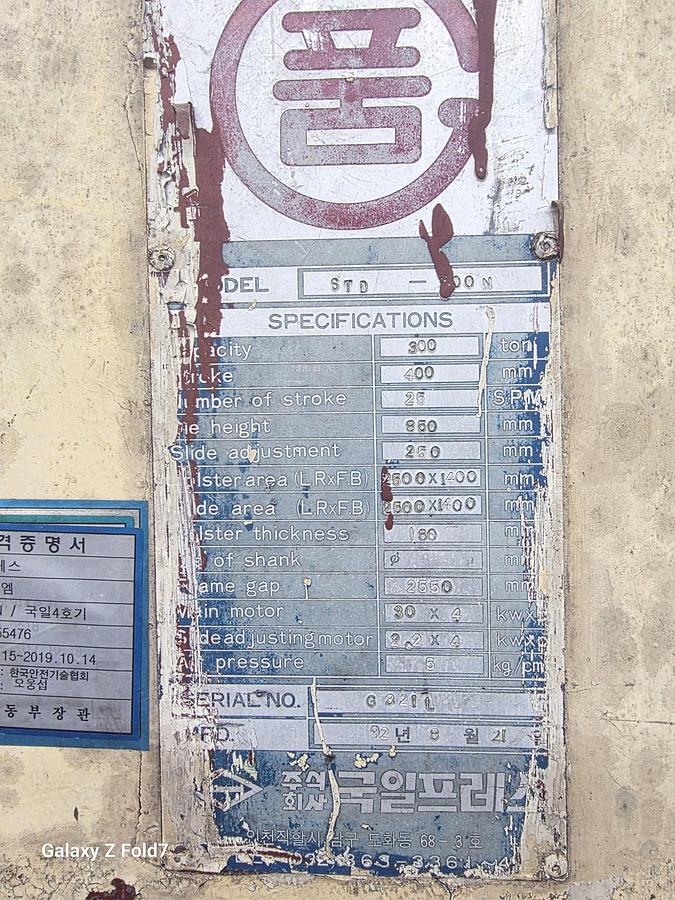

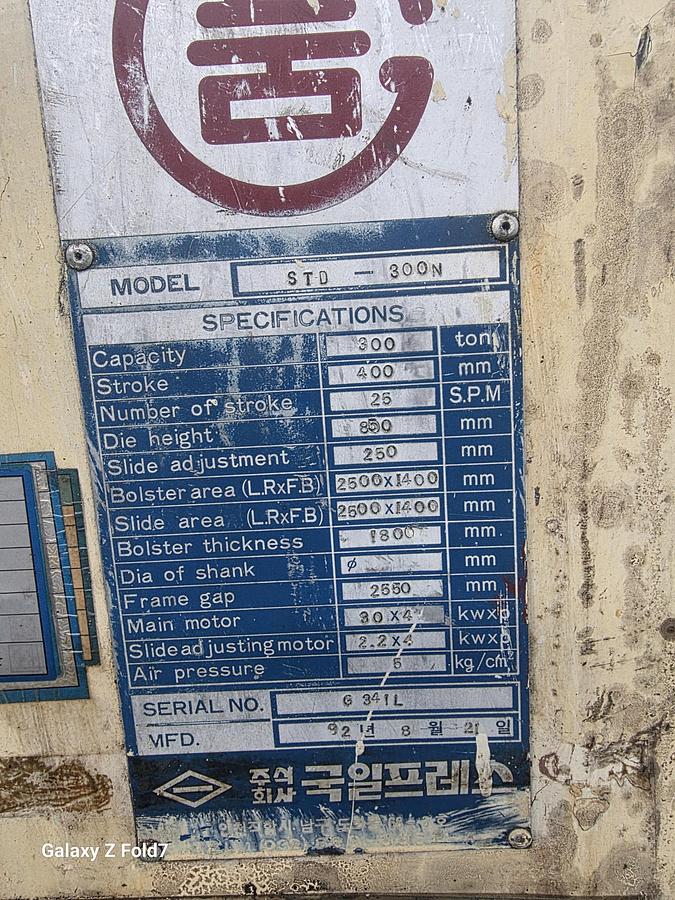

3. Capacity : 300 tons,
Model : STD-300N,
Stroke : 400 mm,
Stroke per minutes : 25 SPM,
Die height : 850 mm,
Slide Adjust : 250 mm,
Bolster area : 2500 x 1400 mm,
Bolster thickness : 180 mm,
Frame gap : 2550 mm,
Main motor : 30 x 4 Kw x p,
Slide adjusting motor : 2.2 x 4 Kw x p,
Air Pressure : 5 kg/cm2
4.Capacity : 300 tons,
Model : STD-300N,
Stroke : 400 mm,
Stroke per minutes : 25 SPM,
Die height : 850 mm,
Slide Adjust : 250 mm,
Bolster area : 2500 x 1400 mm,
Bolster thickness : 180 mm,
Frame gap : 2550 mm,
Main motor : 30 x 4 Kw x p,
Slide adjusting motor : 2.2 x 4 Kw x p,
Air Pressure : 5 kg/cm2
5. Capacity : 300 tons,
Model : STD-300N,
Stroke : 400 mm,
Stroke per minutes : 25 SPM,
Die height : 850 mm,
Slide Adjust : 250 mm,
Bolster area : 2500 x 1400 mm,
Bolster thickness : 180 mm,
Frame gap : 2550 mm,
Main motor : 30 x 4 Kw x p,
Slide adjusting motor : 2.2 x 4 Kw x p,
Air Pressure : 5 kg/cm2
Technical manuals not available.
