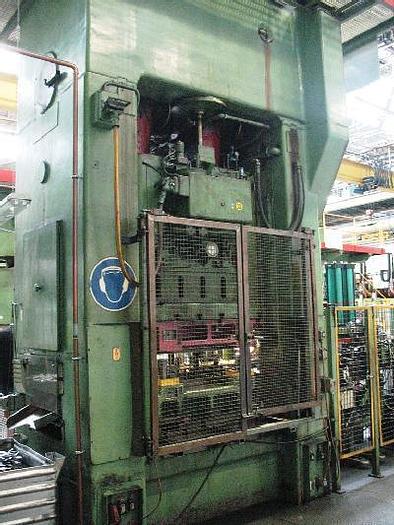

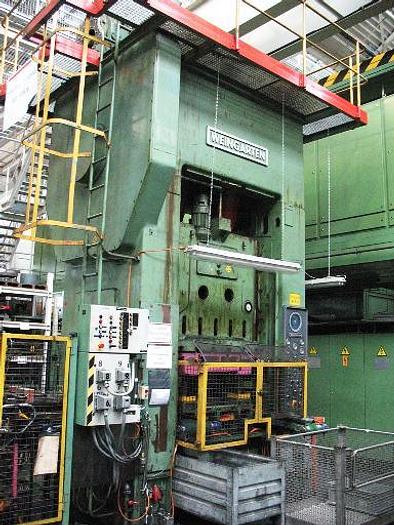

Press Trimming DX630-16-25

Double Connecting Rod,

Capacity : 630 tons,

Distance between columns : 1600 mm,

Stroke : 250 mm,

No of stroke : 20 min,

Distance table /ram, max stroke up adjustment up : 900 mm,

Table surface area : 1150 x 1200 mm,

Pressure of drawing cushion in table : 50 ton,

Stroke of drawing cushion in table : 100 mm,

Table height over floor : 800 mm,

Side window : 620 mm,

Ram surface : 1360 x 1200 mm,

Ram adjustment : 160 mm,

Height over floor : 59 m,

Height beneath floor : 06 m,

Power requirement : 320 kW,

Dimension W x D x H : 367 x 22 x 65 mm,

Machine Weight : 59 tons.

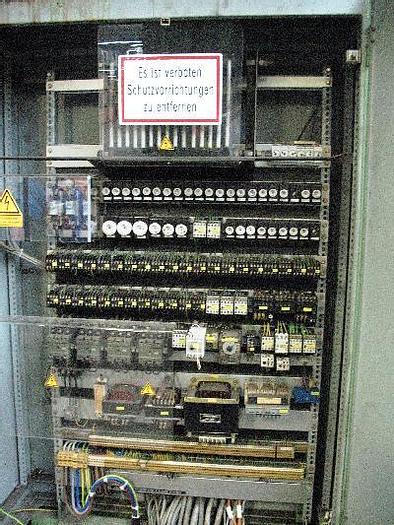

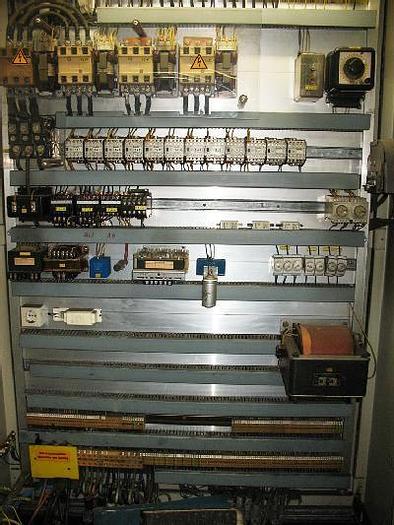

With motor, back gears, air-friction clutch, drawing cushion in table, hydraulic overload protection in ram, motorisch ram adjustment, pneumatic ram counterbalance, control cabinet.
