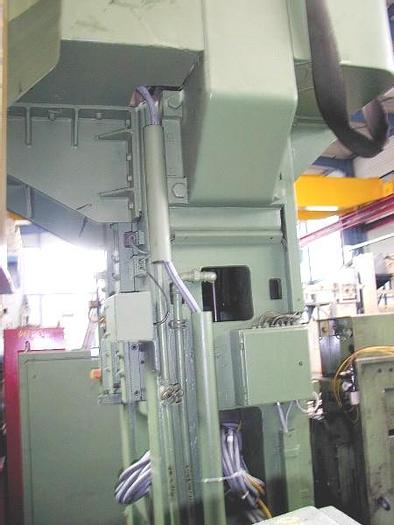

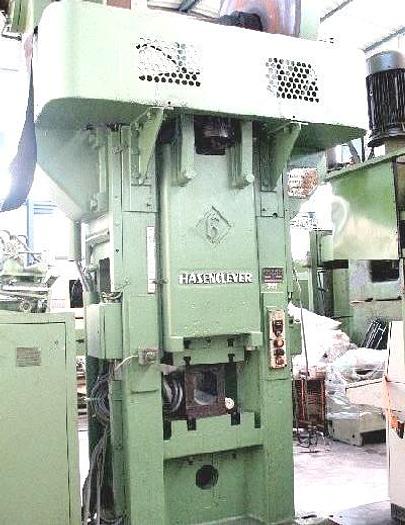

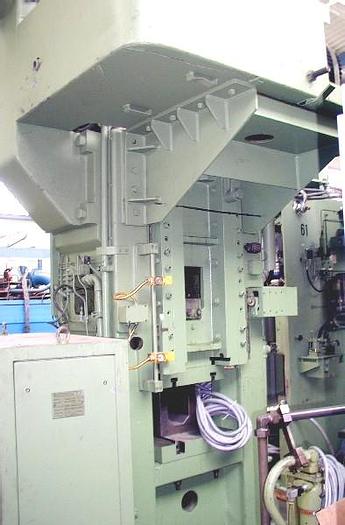

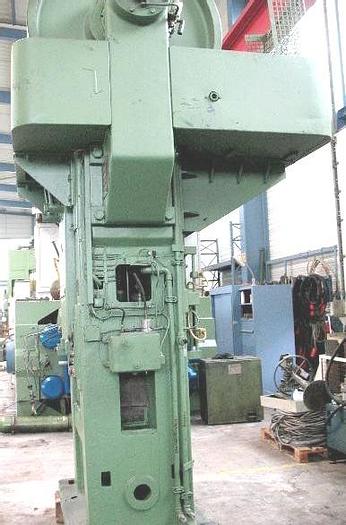

350 tons Press Friction Screw Hasenclever FPPN180/540/300/750

Permanently permissible maximum force : 500 tons,

Nominal force : 350 tons

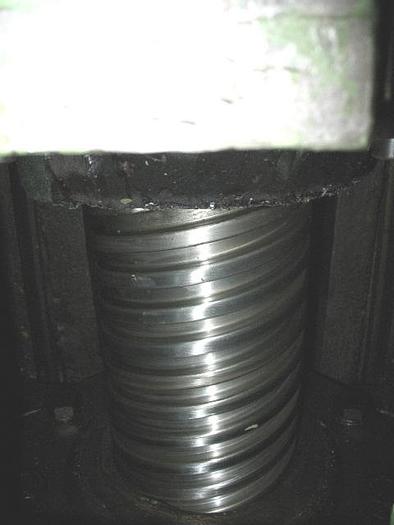

Diameter of screw : 180 mm

Stroke : 200-300 mm,

No of stroke per minutes : 36,

Distance between columns : 540 mm,

Distance table/ram, max stroke up, adjustment up : 750 mm,

Table surface area : 530 x 630 mm,

Ram surface : 450 x 560 mm,

Blow die to die : 630 tons,

Power requirement : 25 kW,

Dimensions of the machine : 2500 x 2000 x 400 mm,

Weight : 13 tons,

Control: conventional.

Technical Manual is available.
