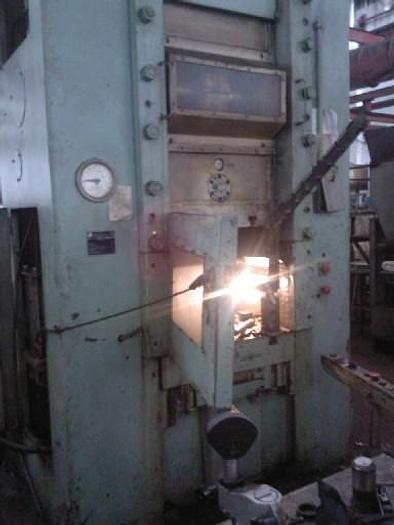

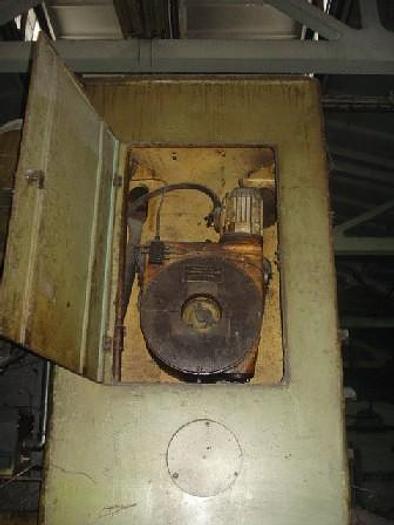

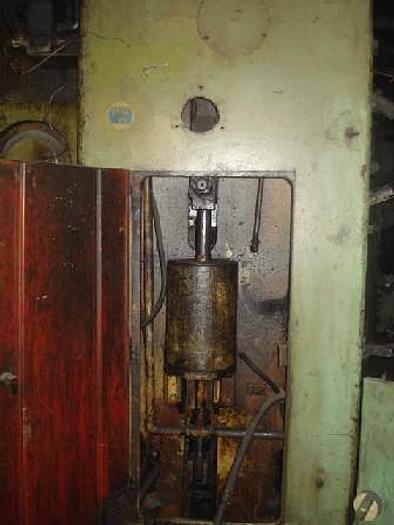

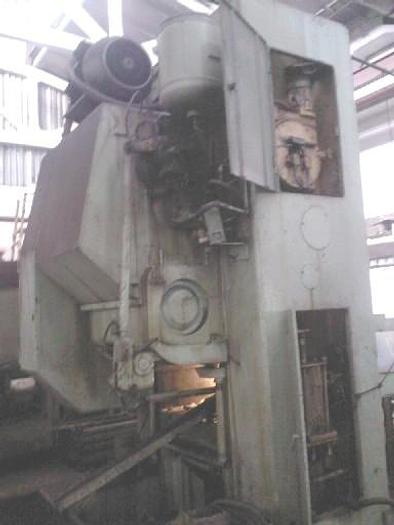

Press Knuckle Joint Coining K8340

Capacity : 1000 tons,

Slide stroke : 170 mm,

Ram stroke per minute : 32,

Max. distance from bed to slide (stroke down) : 630 mm,

Adjustment of distance from bed to slide : 15 mm,

Bed size : 800 x 1000 mm,

Bolster plate thickness : 160 mm,

Lower knockout stroke : 100 mm,

Upper knockout stroke : 15 mm,

Total power of drive : 40 kW,

Overall dimensions :

Left to Right : 2000 mm,

Front to Back : 2000 mm,

Height 3500 mm,

Weight approx. : 25.7 tons.
