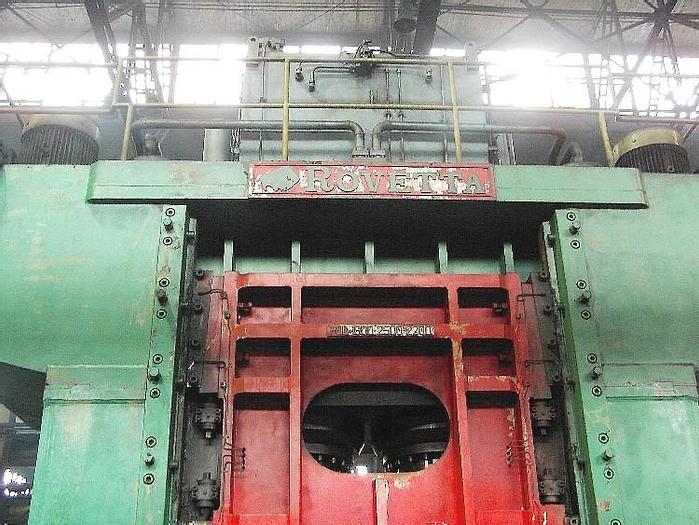

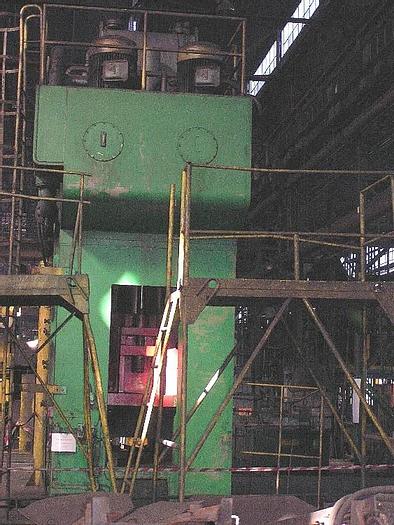

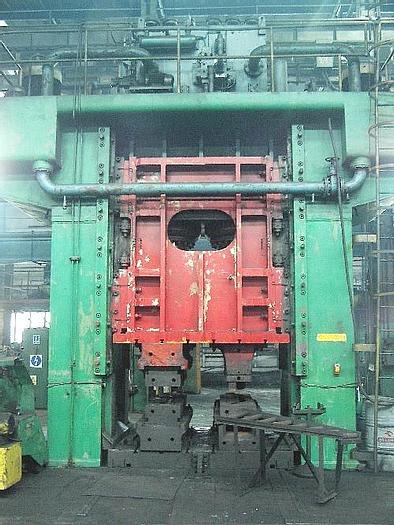

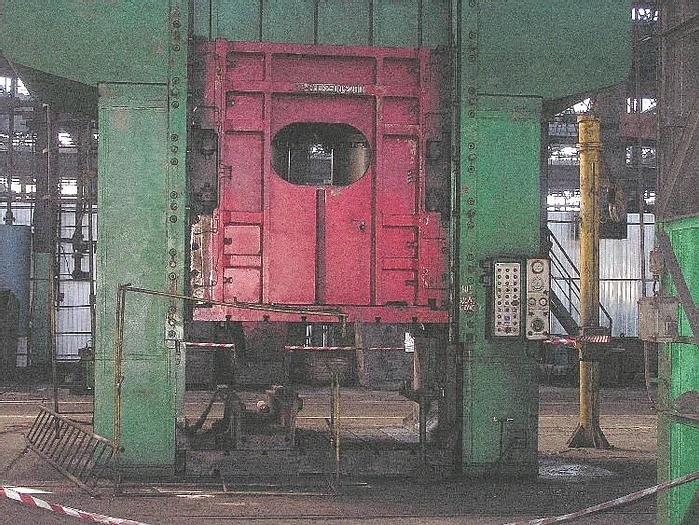

Press Sheet Stamping Hydraulic POD1600-2500-2200

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerRovetta,Italy
ModelPOD1600-2500-2200
Year1977
ConditionUsed
Stock NumberMA0076
Item conditionGood working condition
Capacity tons1600

Description

Working force : 1600 tons,

Stroke : 800 mm,

Max. Height of enclosed press : 1200 mm,

Power of engine pumps : 100+4 KM,

Traverse speed : 350 mm/sec,

Return speed : 250 mm/sec,

Working speed : 35 mm/sec,

Return power of reverse stroke : 80 T,

Eccentricity clearance nominal power : 700 mm,

Maximum torque : 1120 Tm,

Clearance in stands : 900 mm,

Table stroke extension : 2200 mm,

Load capacity table : 35 T,

The height of the press above the hall level : 6775 mm,

The depth of the press at the hall level : 2020 mm,

Width : 6050 mm,

Horizontal depth : 3625 mm,

Weight of the press : 190 tons,

Maximum gap between table and slider : 1810 mm,

Dimensions of working table : 2500 x 2200 mm,

Maximum permissible pressure : 320 bars,

The pressure for continuous operation : 240 bars,

Maximum efficiency of single-pump : 440 l/min from.

Quantity - 2 presses.
