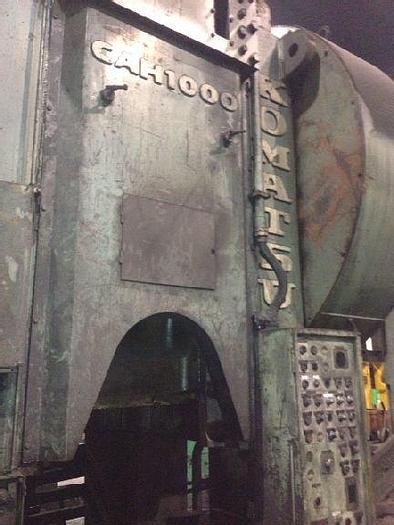

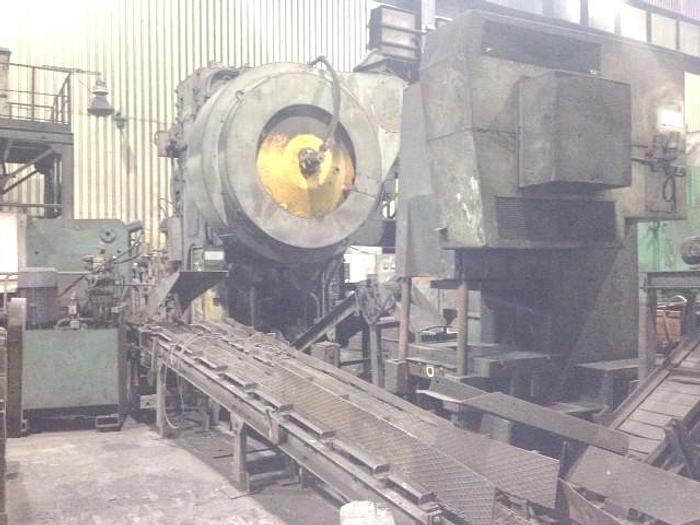

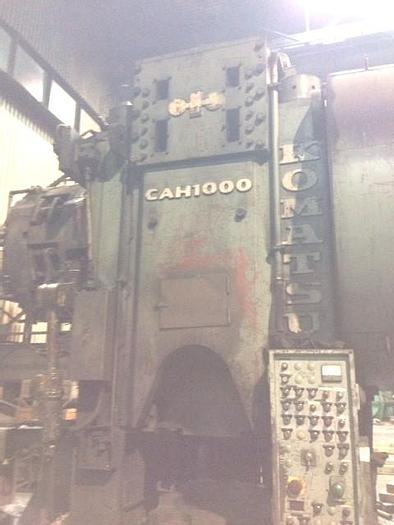

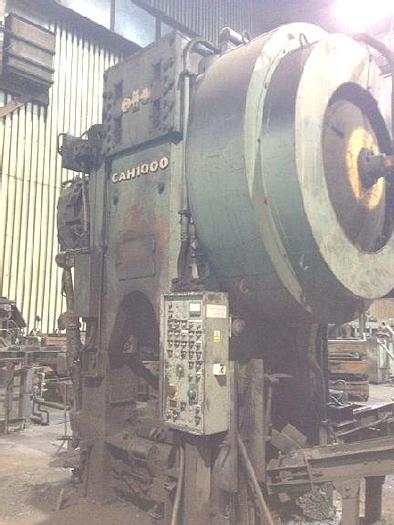

Press Hot Forging CAH1000

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerKomatsu
ModelCAH1000
Year1977
ConditionUsed
Stock NumberMA0082
Item conditionGood Condition
Capacity tons1000

Description

Max. capacity : 1000 tons,

Slide stroke : 240 mm,

Shut height (max.) : 650 mm,

(from main wedge top face to slide bottom face),

Wedge adjustment : 10 mm,

Number of slide stroke : 100 rpm,

Slide bottom face size (left to right x front to back) : 800 x 800 mm,

Bed top face size (left to right x front to back ) : 900 x 1000 mm,

Balncer capacity : 1.3 tons

(max weight of upper die set and dies at air pressure of 5 kg/cm2G),

Slide knockout

Type : Mechanical with 2 knockout pins

Capacity : 6 tons,

Stroke : 50 mm,

Diameter of knockout pin : 40 mm,

Bottom knockout

Type : Mechanical and pneumatic with 3 knockout pins

Capacity : Mechanical 10 tons,

        pneumatic 100 kg,

Stroke : Mechanical 30 mm,

      Pneumatic (full stroke) 60 mm,

Diameter of knockout pin : 50 mm,

Air pressure supplied min : 5 kg/cm2G,
