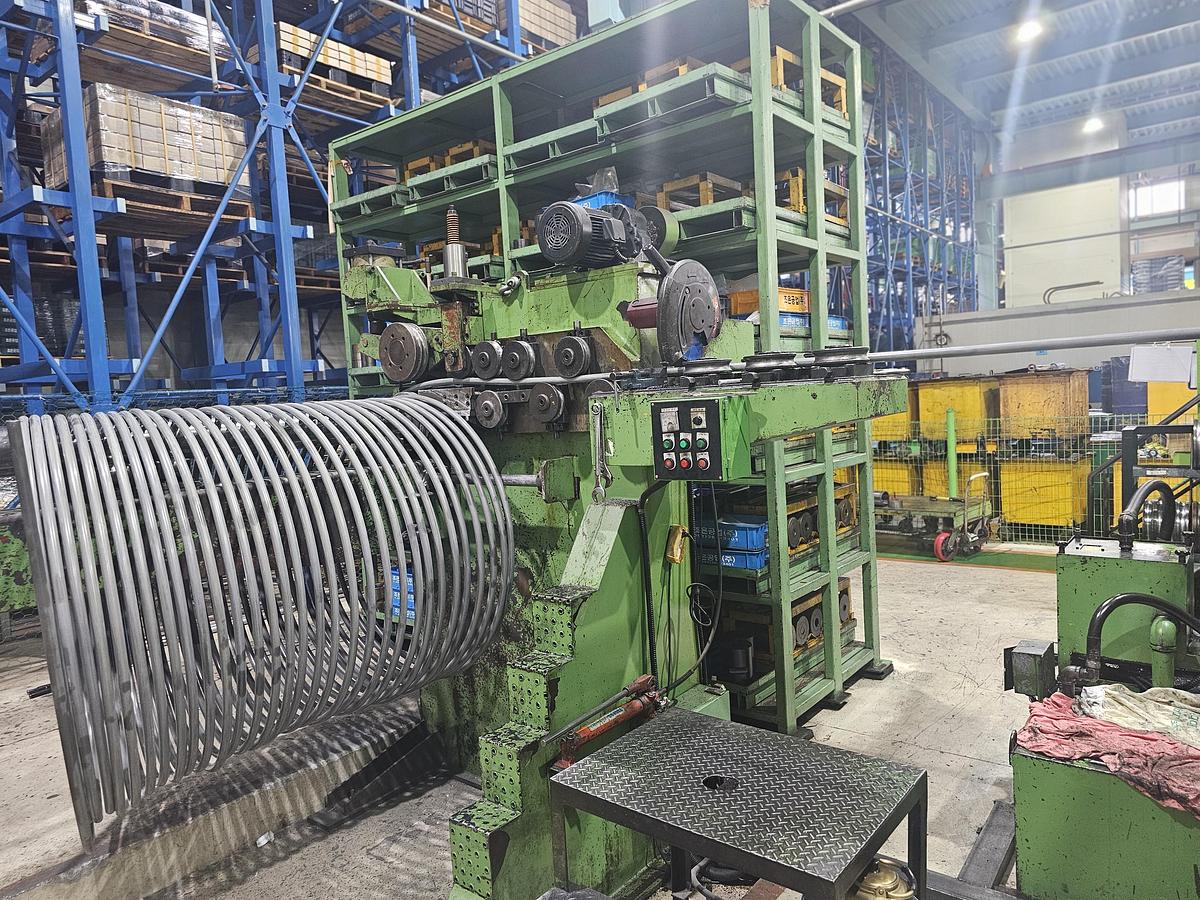

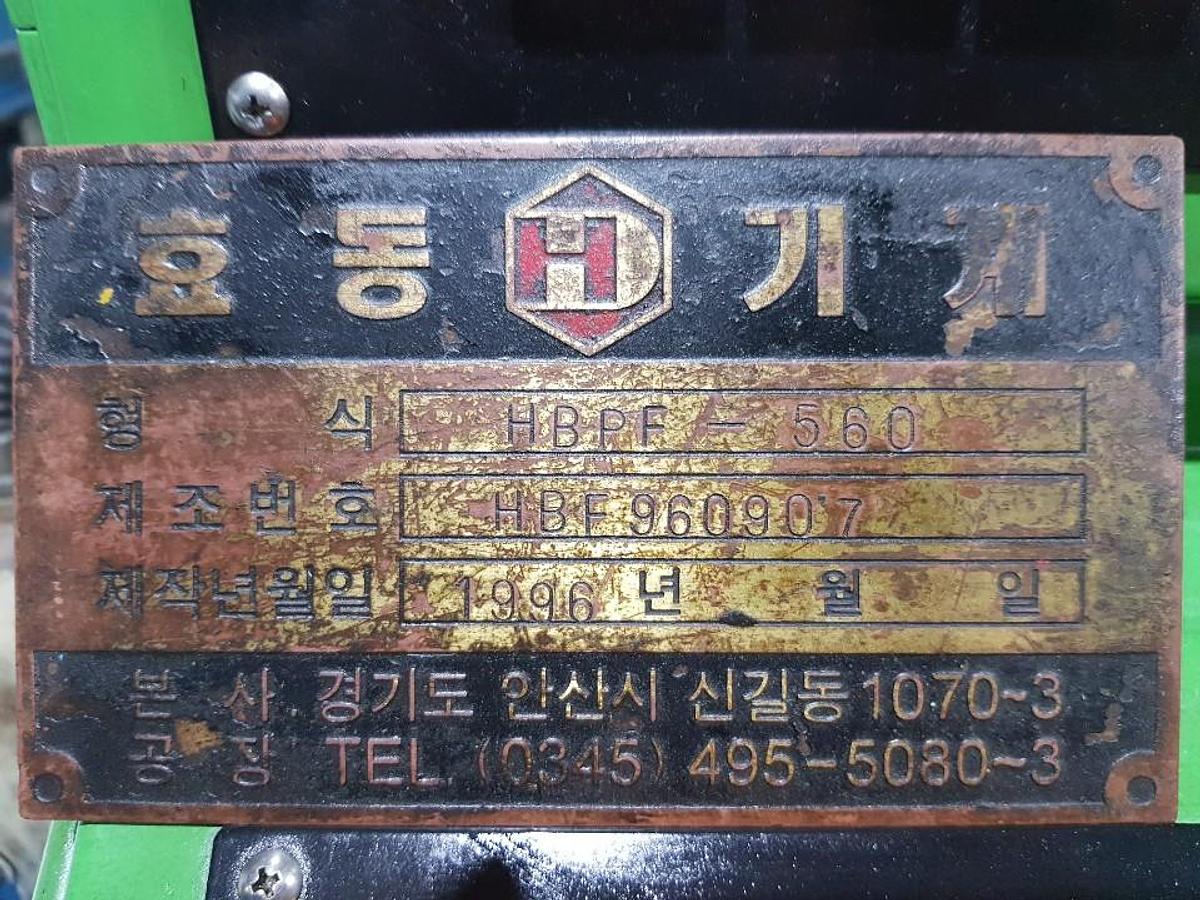

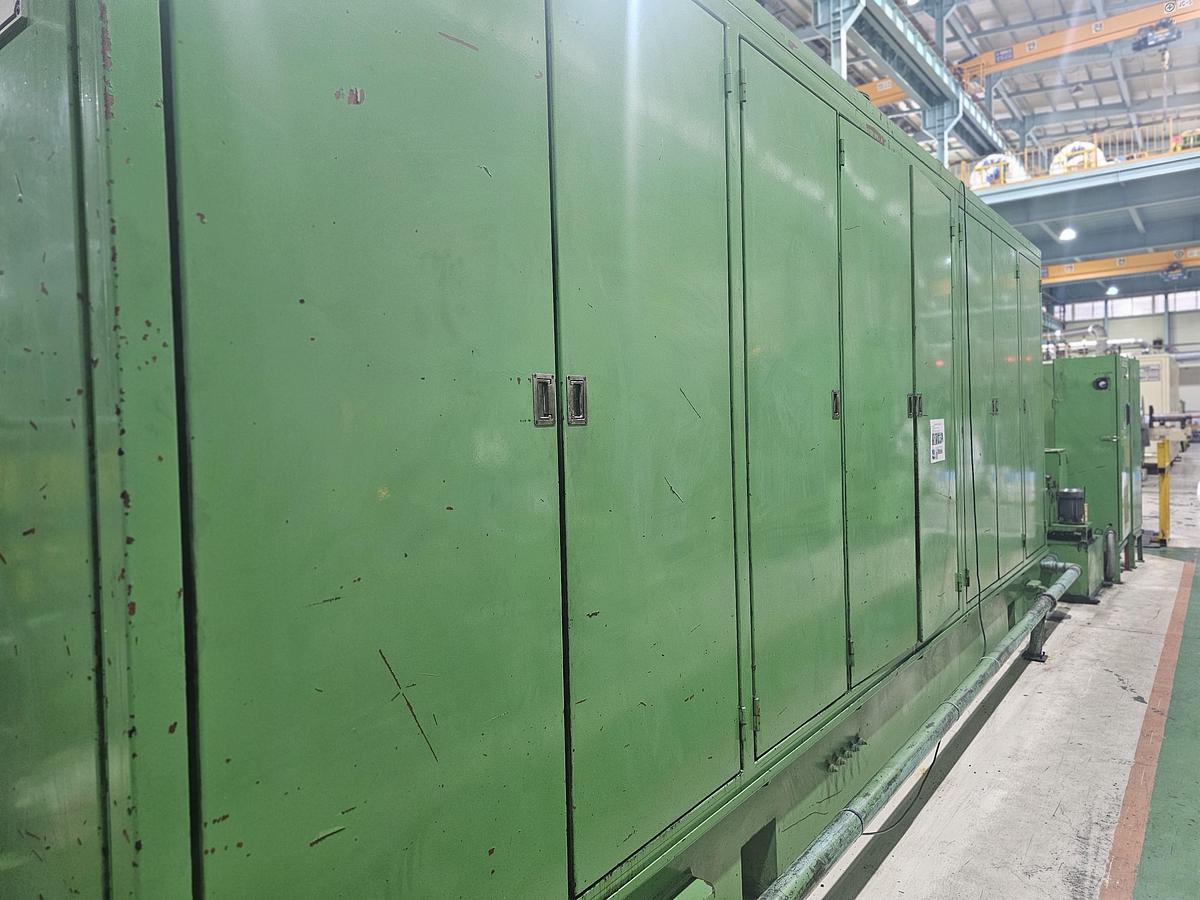

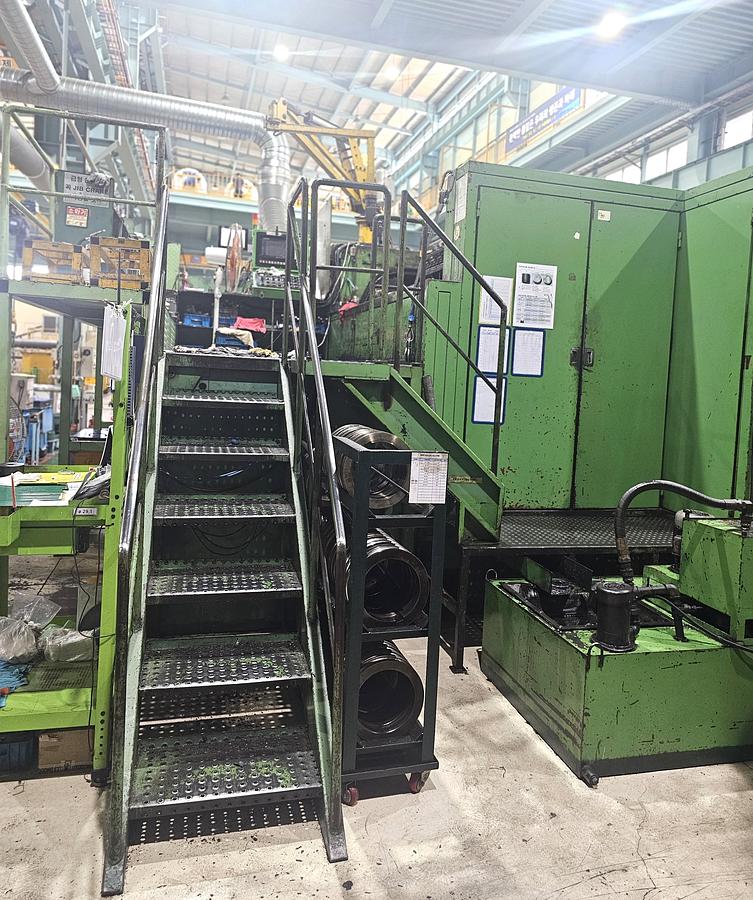

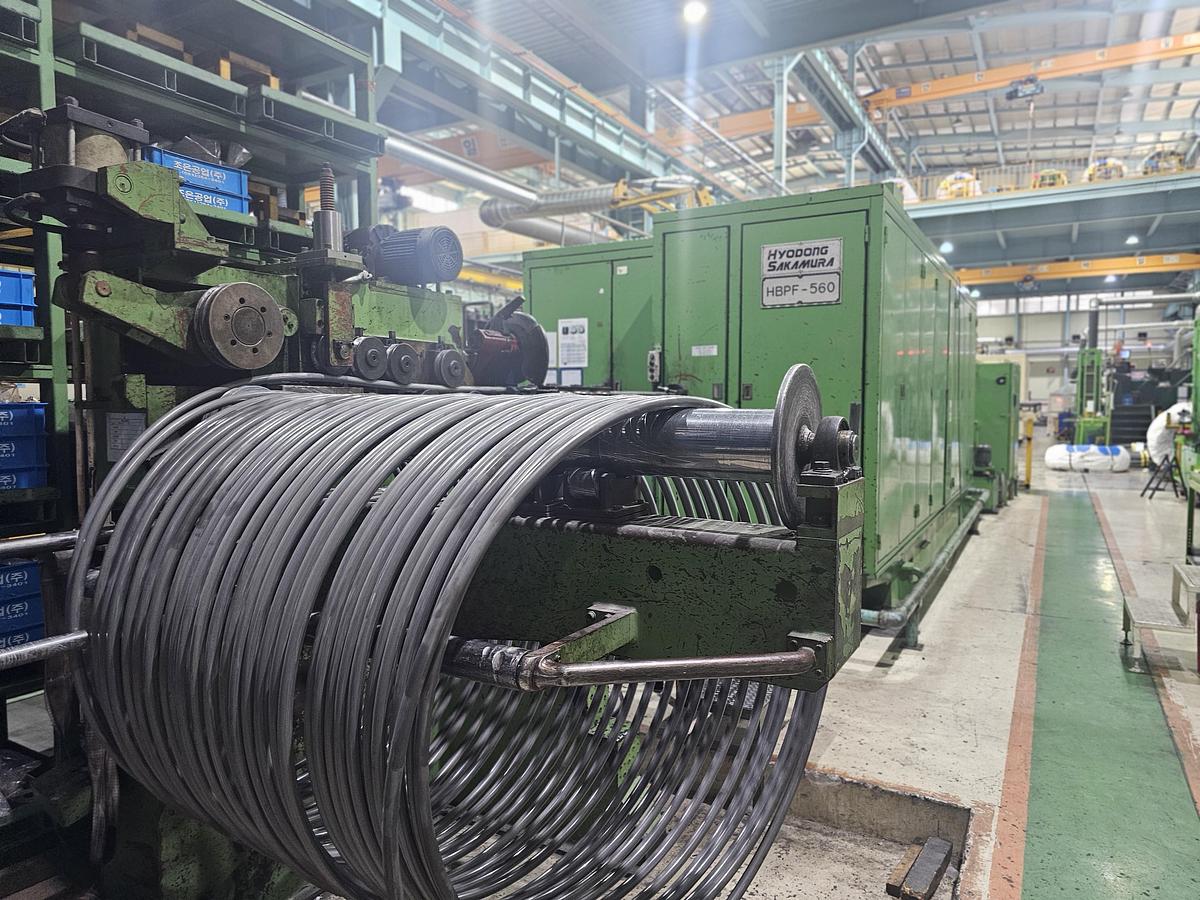

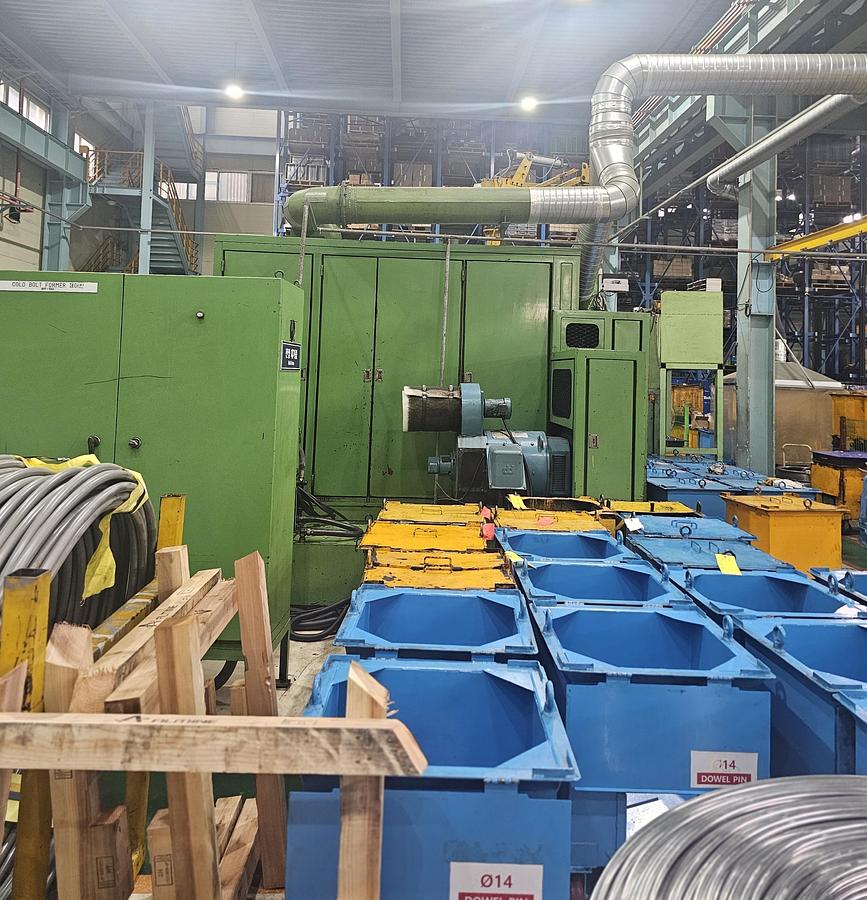

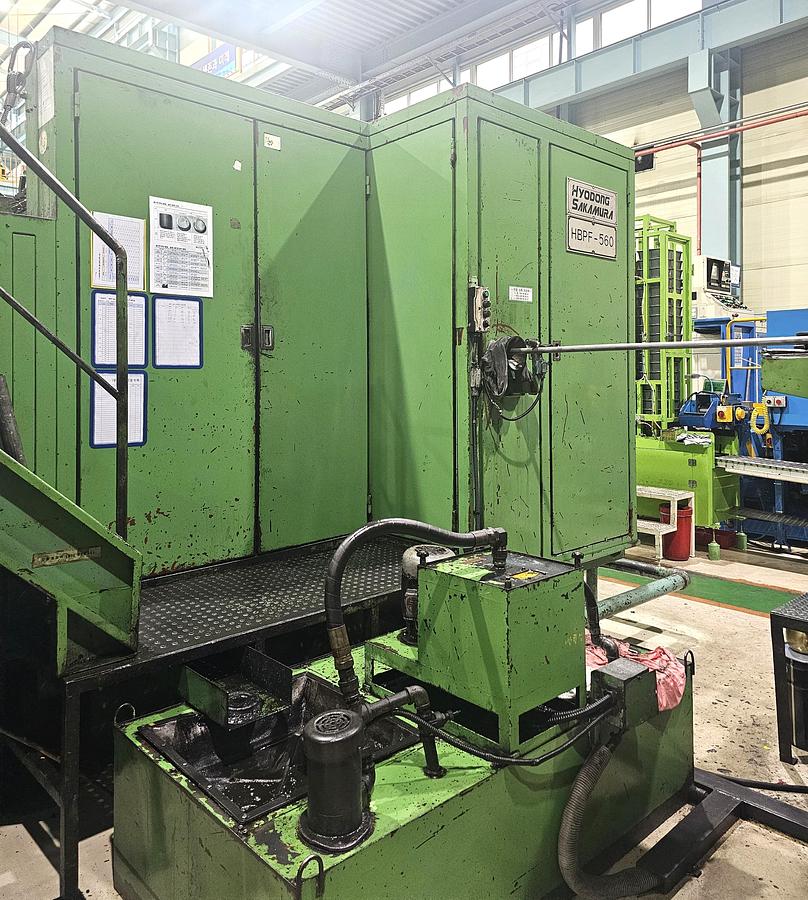

Part Former Cold Hyodong Sakamura HBPF-560

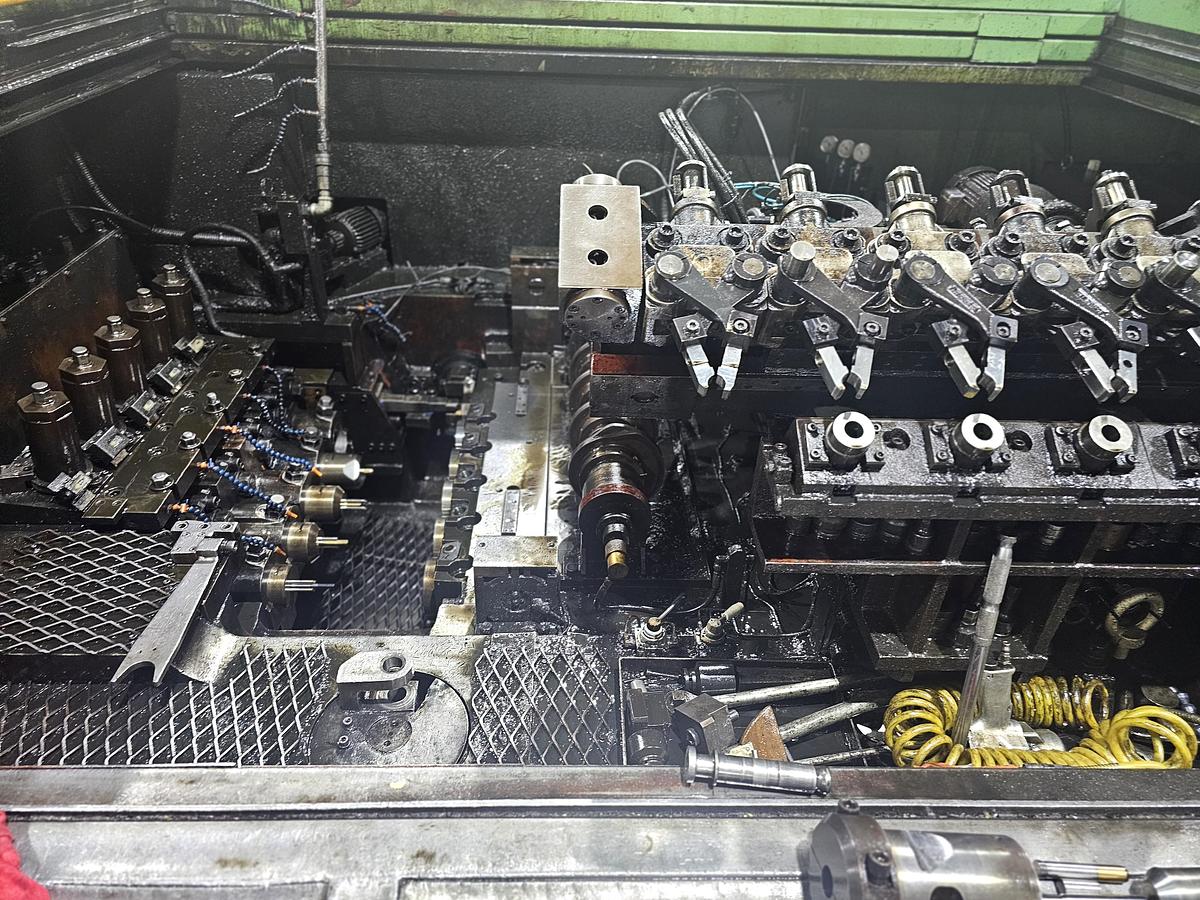

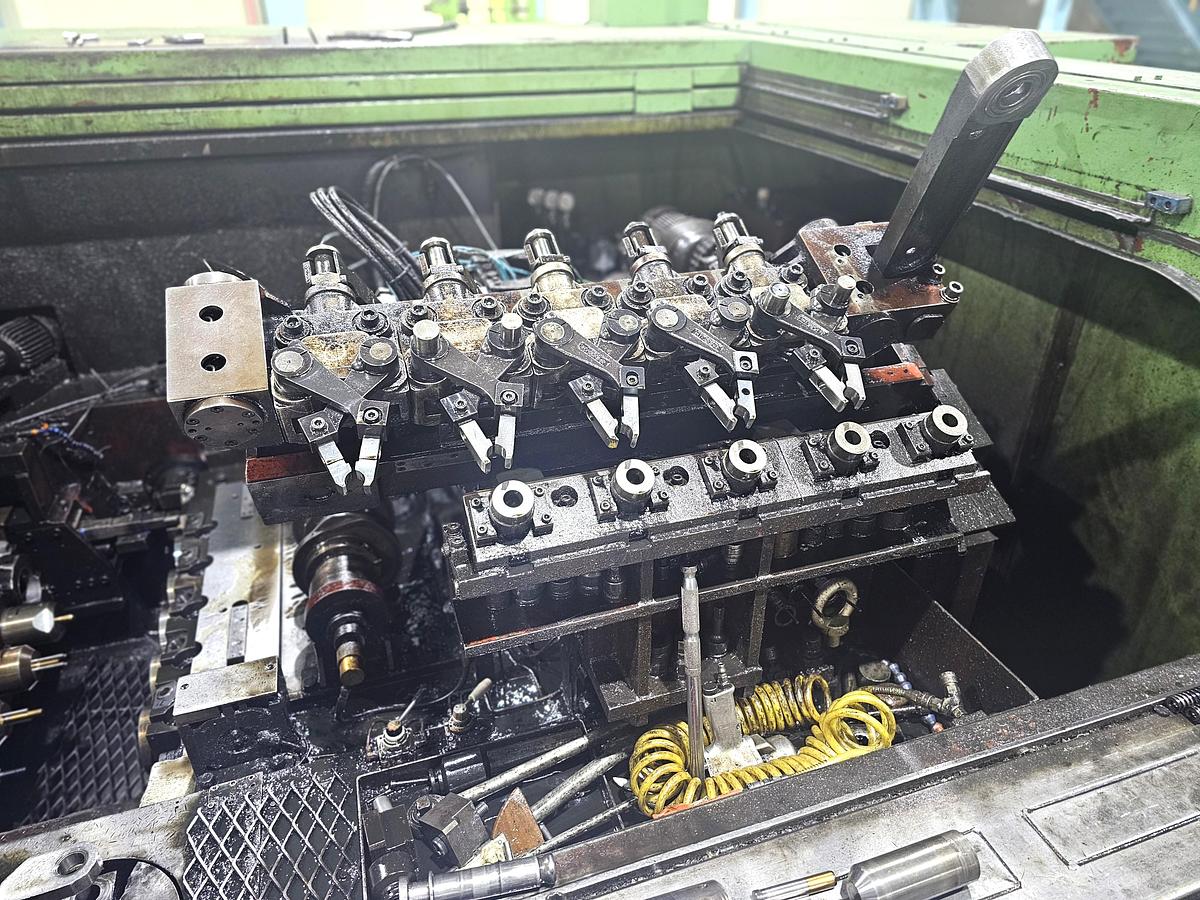

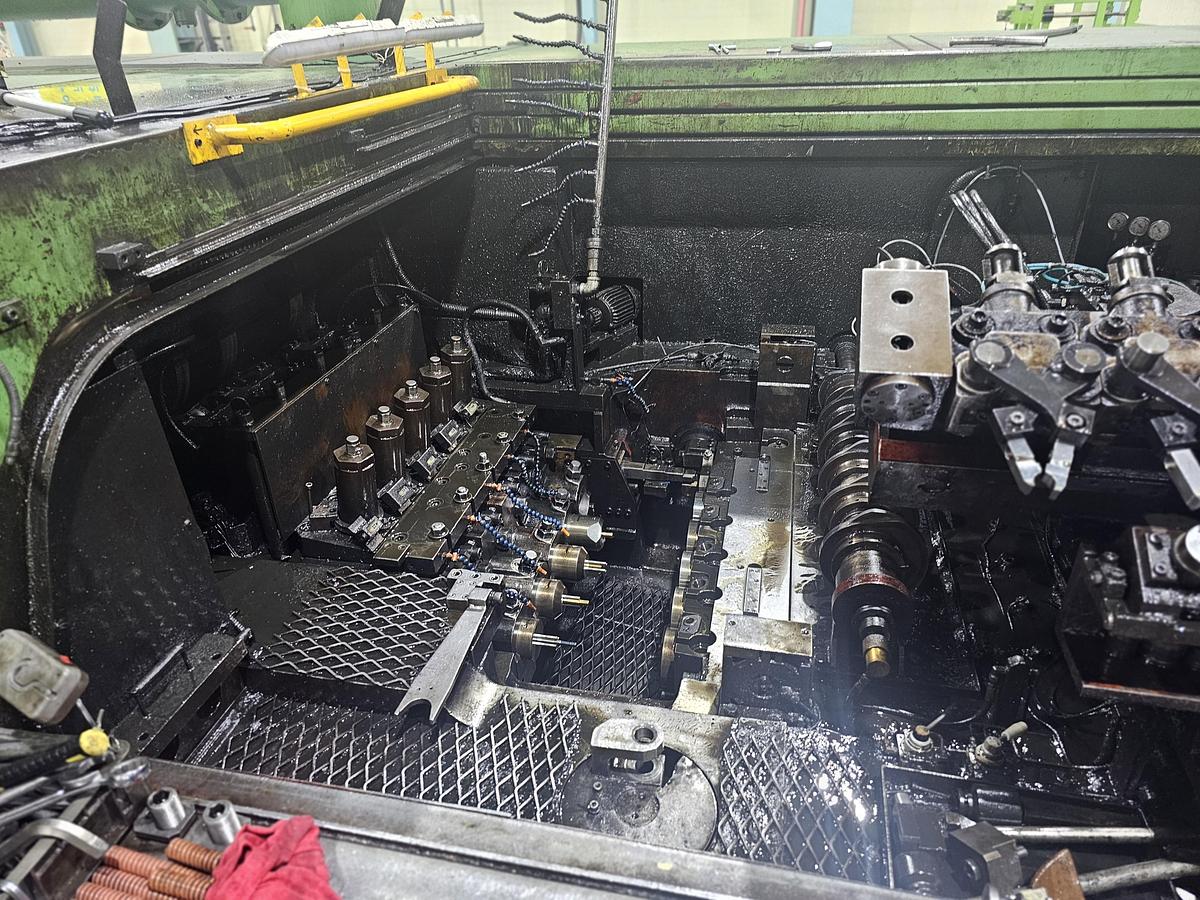

Forging station : 5 station,

Forging dia : 33 mm,

Forging NUT size (M) : 24 mm,

Openup dia : 46 mm,

Shank length : 50 - 150 mm,

Forging load tonnage : 400000 kgf,

Cut off dia : 33(29) mm,

Cut off length : 17-210 mm,

Cut off knife size : 10 x 34 mm,

Cut off quill size : 100 x 150 mm,

Punch cavity : 110 x 300 mm,

Die dia. : 150 x 300 mm,

Die and die center size : 168 mm,

P. K. O . stroke : L5C 50(64) mm,

K. O stroke : H(hammer type) 60 (180) mm,

Ram stroke : 350 mm,

Crank dia. : 470 mm,

Output / min. (depending upon part's design) : 80 pcs/min,

Main motor : 110 (6) kw,

Machine dimensions (W x L x H) : 3900 x 7900 x 2800 mm,

Eelectric cavity : 150 KVA,

Air cavity : 4.0 L/J,

Oil cavity : 500 L,

Coolant oil cavity : 700 L,

Die block size : 300 mm,

Quill & Pusher size : 75 mm,

Punch holder size : 220 mm,

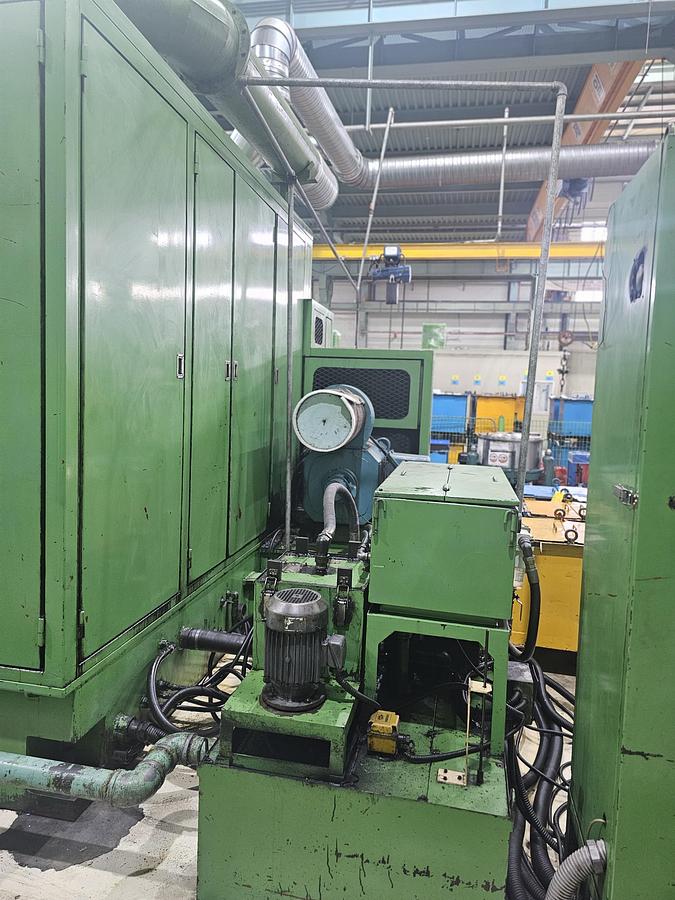

Lubrication pump cavity : 1.5 kw,

Coolant pump cavity : 1.5 kw,

Technical manuals available.

With the existed accessories.
