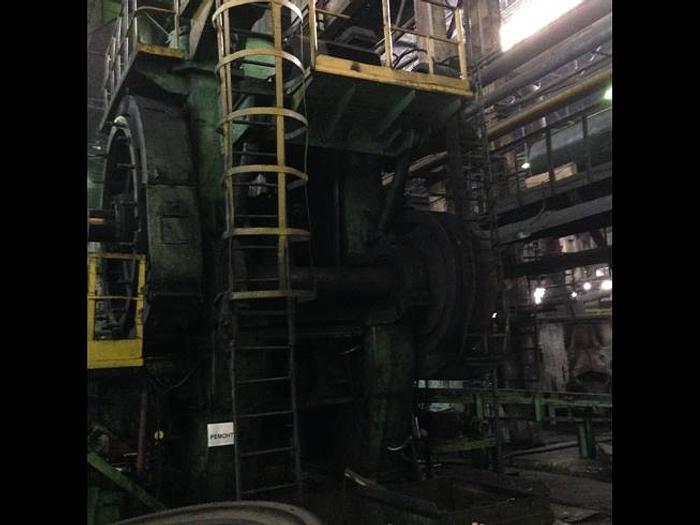

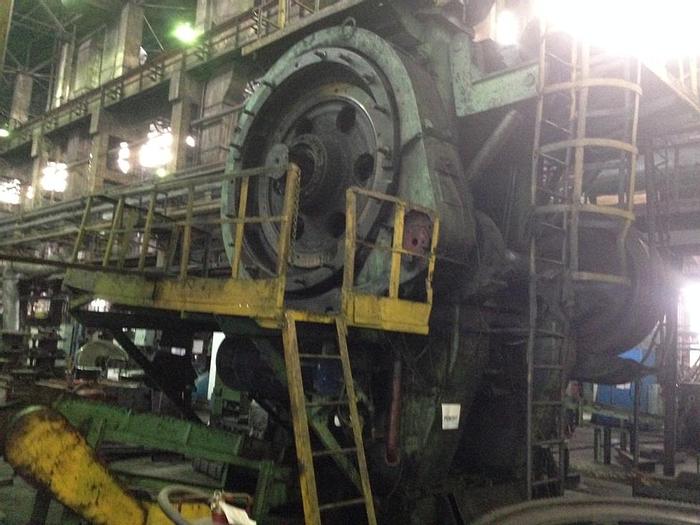

Press Hot Forging K8544

Sold

Specifications

ManufacturerTMP Voronezh Russia
ModelK8544
Year1972
ConditionUsed
Stock NumberMA0092
Item conditionGood working condition
Capacity tons2500

Description

Capacity : 2500 tons,

Ram stroke : 350 mm,

Table dimensions :-

L to R : 1200 mm,

F to B : 1400 mm,

Continuous stroke per minute : 60 N°,

Single stroke per minute : 14 N°,

Connecting rod : 1 N°,

Die space : 890 mm,

Die Space adjustment in the table : 10 mm,

Space between uprights : 1320 mm,

Ram dimensions :-

L to R : 1070 mm,

F to B : 1120 mm,

Upright opening dimensions :-

Width :720 mm,

Height : 890 mm,

Upper knockout :-

Power 6 tn,

Stroke : 50 mm,

Pushers : 1 N°,

Lower knockout,

Power : 10 tn,

Stroke : 50 mm,

Pushers : 1 N°,

Main motor power : 132 kw,

Overall dimensions :-

L to R : 5350 mm,

F to B : 4680 mm,

Height above floor level : 6840 mm,

Press weight : 198 tons.
