Sheet Stamping Line Hydraulic

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerCavenaghi & Ridolft
ConditionUsed
Stock NumberMA0096
Item conditionGood Condition
Capacity tons1000

Description

Purpose manufactured press line for the production of Sinks – Bowls and Single Drainers.


There is a free stand 1000T press line, plus all the usual handling and transfer equipment, plus the final polishing lines. Material is de-coiled, cut into blanks, top and bottom of the blank is polished, and protected, it is pressed into the product, polished, wrapped and packed.

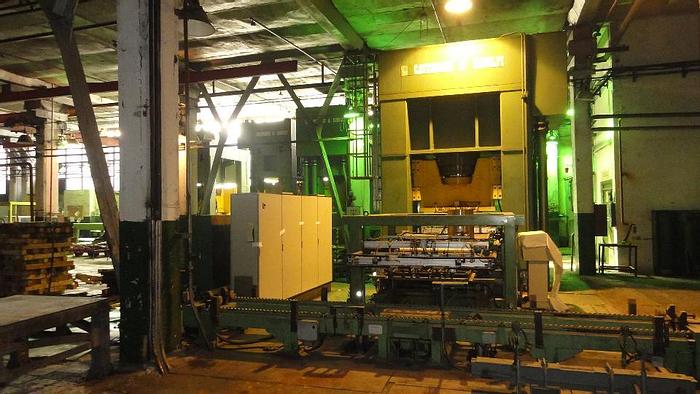

The photographs show these lines. The press line consists of 1 x 1000t. 1 x 400t. 1 x 230t, and is complete with transfers mechanism, and die changers. The final lines are for de-burring and polishing the plug/tap holes/and sides of the sinks and draining boards.

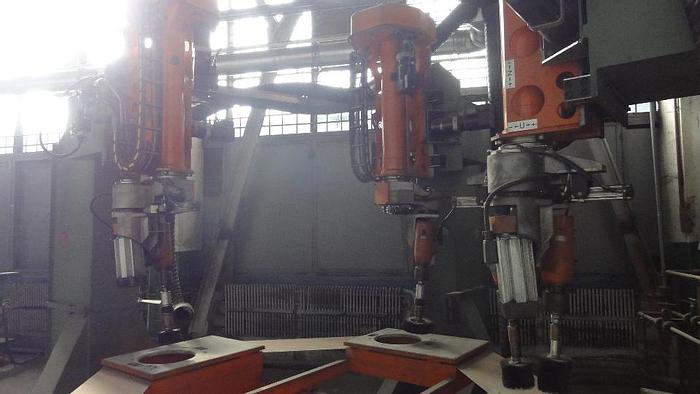

Line 1 is a 3 spindle fully automatic polishing/de-burring machine built by Sillem of Milan, automatic pick and place loading and unloading, 3 position working stations.

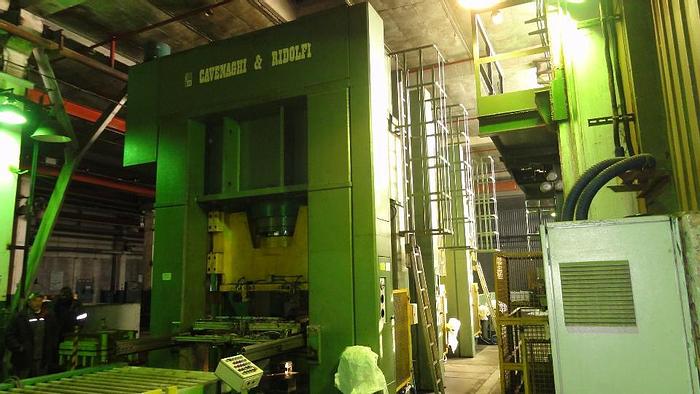

Line 2 is a horizontal single spindle polishing and de-burring machine with automatic load and unloading. The second press line is a standalone 1000t double action hydraulic built by Cavenaghi & Ridofi Left to right rolling bolster, auto die clamping, parts ejector and Hyrdomex air operated loading and unloading system.


CAVENAGHI & RIDOFI Hydraulic. Left to Right Rolling Bolsters. Automatic die clamping. Hydraulic Overloads. Part Ejector. Hydromac Air Operated Transfer Mechanism.

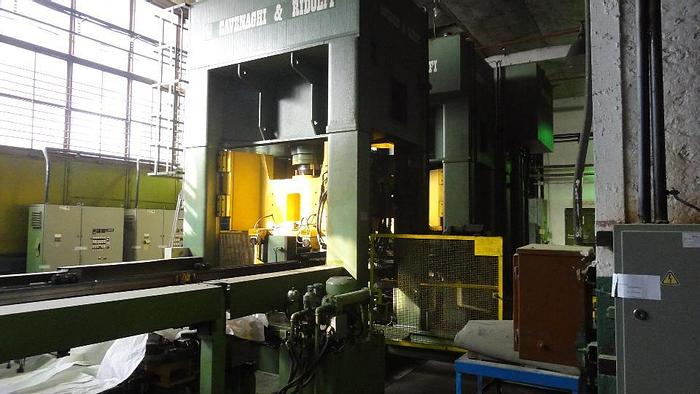

Line consists of the following: 1000t Double action press – 400t Calibrating and sizing press – 230t trimming press.


    Линия производства кухонных моек из нержавеющей стали

Line for production of kitchen sinks from stainless steel


1.  Линия производства кухонных моек из нерж.стали предназначена для глубокой вытяжки изделий. Line for production of kitchen sinks from stainless steel

with deep drawing of components.

Линия по производству моек состоит из 4-х прессов производства COVENAGHI&RIDOLFI, Италия: пресс 1000тн-2шт, пресс 400тн -1шт; пресс 230тн- 1шт и подающего устройства. Пресса 1991 года выпуска.

Line consists of 4 presses manufactured by COVENAGHI&RIDOLFI, Italy of 1991

1000 tons capacity – 2 nos.

400 tons press capacity – 1 no.

230 tons press capacity – 1 no. with loading conveyors


2.  Линия подготовки заготовок для кухонных моек

Линия подготовки заготовок для кухонных моек предназначена для резки, шлифовки, наклейки пленки и укладки заготовок.

Line for manufacturing blanks like cutting, polishing, sticking of film and stacking of blanks


3.  Агрегат полной офланцовки и гибки мойки

Агрегат предназначен для полной офланцовки и гибки мойки.

Machine for bending and folding the edges.


4.  Агрегат для полировки кромок

Агрегат предназначен для полировки кромок торцевых плоскостей.

Machine for polishing of the bended and folded edges.


5.  Агрегат полировки плоскости

Агрегат предназначен для полировки плоскости 800x1000мм.

Machine for polishing of the flat surfaces 800x1000 mm


6.  Система вытяжки пыли

Система предназначена для вытяжки пыли.

System for dust extraction after polishing


7.  Карусельная установка полировки дна

Карусельная установка с ЧПУ предназначена для полировки изделий глубокой вытяжки.

Rotary CNC unit for polishing deep drawing parts of the sink


8.  Установка ККП-Б с комплектом автоматики

Установка ККП-Б с комплектом автоматики предназначена для поддержания заданой температуры.

Unit PAC-B with complete set of automation designed to maintain the predetermined temperature.


9.  Агрегат сварки уголков

Агрегат предназначен для контактно-точечной сварки изделий.

The unit is designed for spot welding parts.


10.  Прессовое устройство

Прессовое устройство предназначено для формирования сливного отверстия мойки.

Pressing device is intended to form the drain system.


11.  Штамповая оснастка для круглой мойки

Штамповая оснастка предназначена для глубокой вытяжки мойки.

Die tooling is designed for deep drawing sink.


12.  Устройство для сварки уголков

Агрегат предназначен для контактно-точечной сварки изделий.

The unit is designed for spot welding parts.
