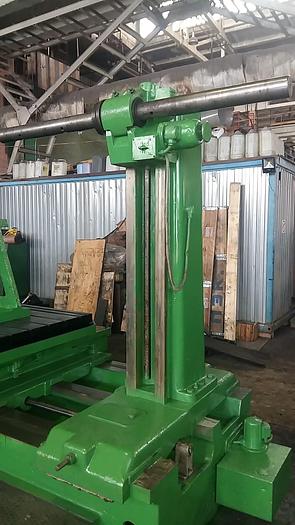

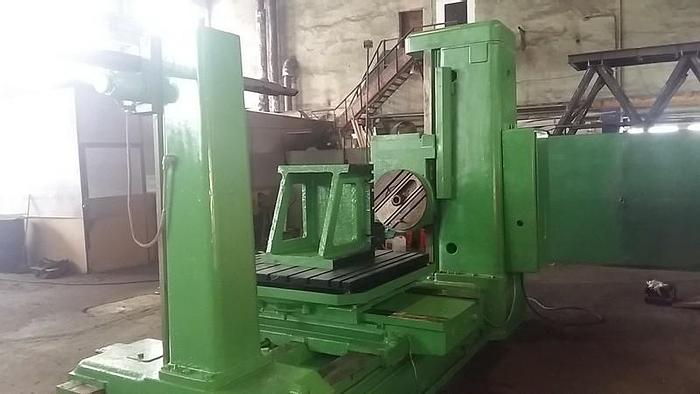

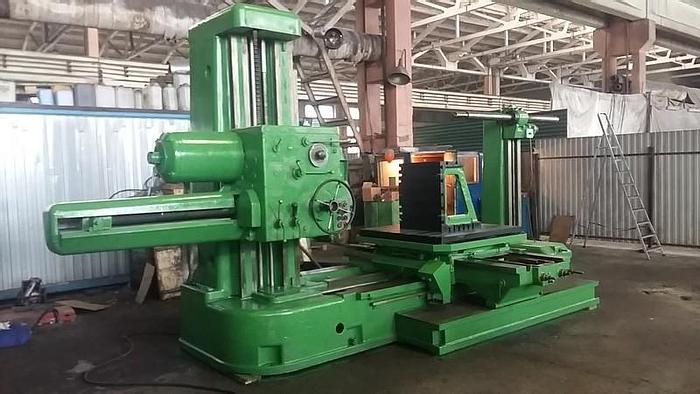

Borer Horizontal Table Type W100

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelW100
Year1968
ConditionUsed
Stock NumberMA0116
Item conditionGood working condition
Capacity tons100

Description

Spindle diameter : 100 mm,

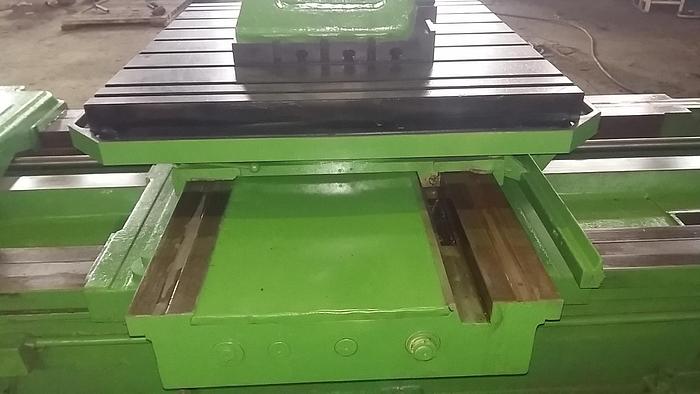

Rotary Table : 1250 x 1250 mm,

Spindle speeds range : 7.1 - 1120 rpm,

Cross table travel : 1250 mm,

Longitudinal table travel : 1600 mm,

Vertical travel : 1120 mm,

Spindle taper : Morse 6,

Planning Shield : 600 mm,

Planning Shield Speeds : 7,1-224 rpm,

Max. weight of work piece : 3000 kg,

Main motor power : 10 W,

Dimensions : 3000 x 6015 x 3000 mm,

Weight of machine : 15.5 tons,

The machine full complete with Face plate.
