Borer Horizontal Ram Type W250H
Specifications
| Manufacturer | Abe Seiki,Japan |
| Model | W250H |
| Year | 1984 |
| Condition | Used |
| Stock Number | MA0123 |
| Item condition | Good Condition |
| Capacity tons | 250 |
Description
Workspindle dia : 250 mm,
Spindle taper : 140 metric,
Spindle torque max : 34300 mm,
Width of bed guideways : 2500 mm,
Height of bed from the floor level : 600 mm,
Ram cross section : 520 x 520 mm,
Column cross travel X : 7000 mm,
Headstock vertical travel Y : 4150 mm,
Ram travel Z : 2000 mm,
Spindle stroke W : 1600 mm,
Minimum distance between main spindle and bed guideways : 1475 mm,
Spindle speed range : 0.8-630 rpm,
Feeds X,Y,Z,W,V : 0,63-1250 mm/min,
Rapid traverse for X : 20 meters,
Rapid traverse for Y : 4150 mm,
Rapid traverse for Z: 2000 mm,
Rapid traverse for W : 1600 mm,
Main motor power : 77 kW,
Total motor power : 77 kW,
Total power consumption : 180 kVA,
Ichnography of machine : 6400 x 14300 mm,
Height of machine : 9320 mm,
Total machine Weight : 115.3 tons.

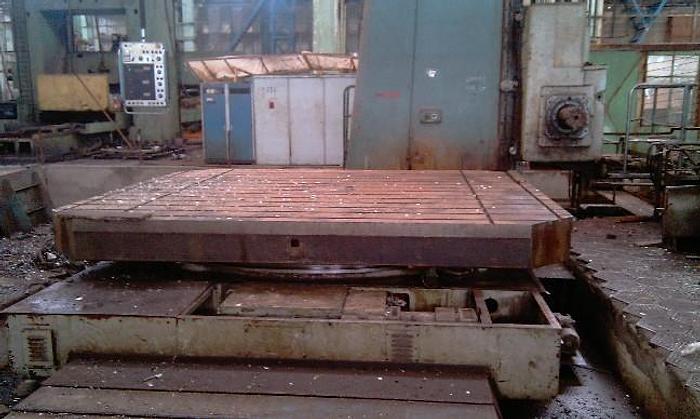

With Rotary table skoda Model S80B
Clamping surface : 4100 x 3100 mm,
Workpiece load max : 80 tons,
Total weight approx : 40 tons.
