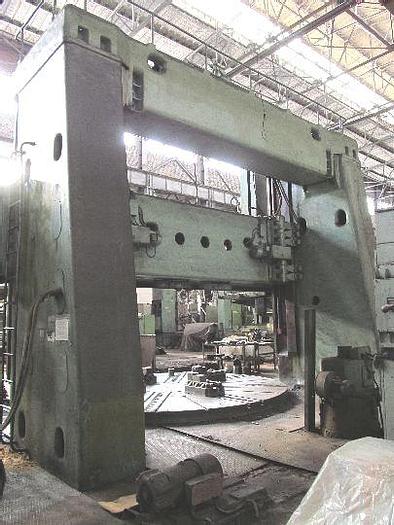

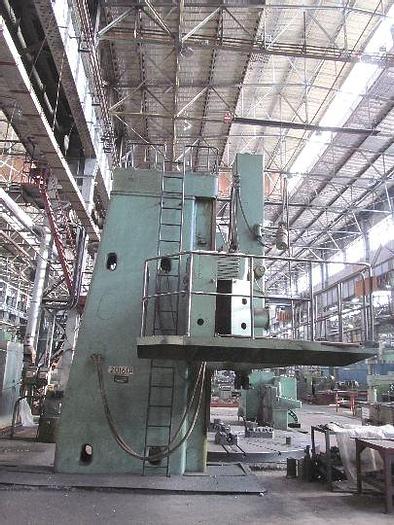

Lathe Vertical Turning
Specifications
Manufacturer | Kolomna, Russia |
Model | 1550 |
Year | 1968 |
Condition | Used |
Stock Number | MA0129 |
Item condition | Good condition,under power |
Description
Max. diameter of job : 5000 mm,
Max. height of job : 2500 mm,

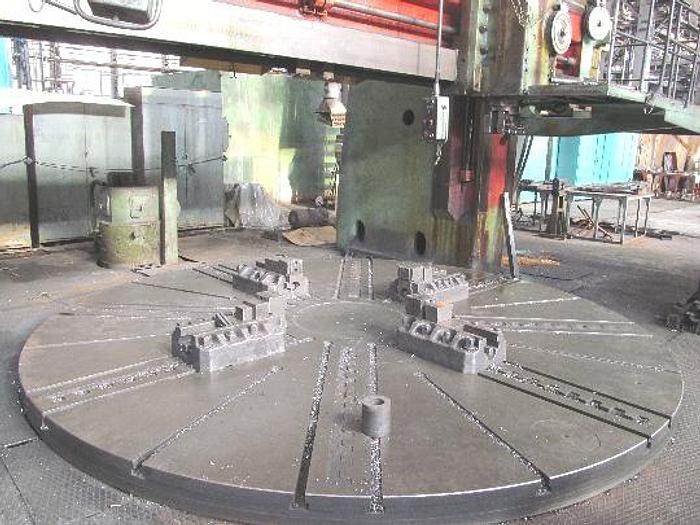

Chuck diameter : 4500 mm,
Max. shift of vertical supports : 1600 mm,
Turn angle of vertical supports : -15 to +40 degrees,
Max weight of work piece : 63 tones
Max. effort of cutting by two supports : 12500 kN,
Max. moment of cutting at chuck : 20 000 kNm,
Speed of chuck turning : 0.34 - 31.2 turn/minute,
Vertical and horizontal feed : 0.0435 - 352 mm/turn,
Main motor power : 125 kW,
Dimensions :
Height : 8400 mm,
Width : 11400 mm,
Length : 6600 mm,
Weight : 140.5 tons.
