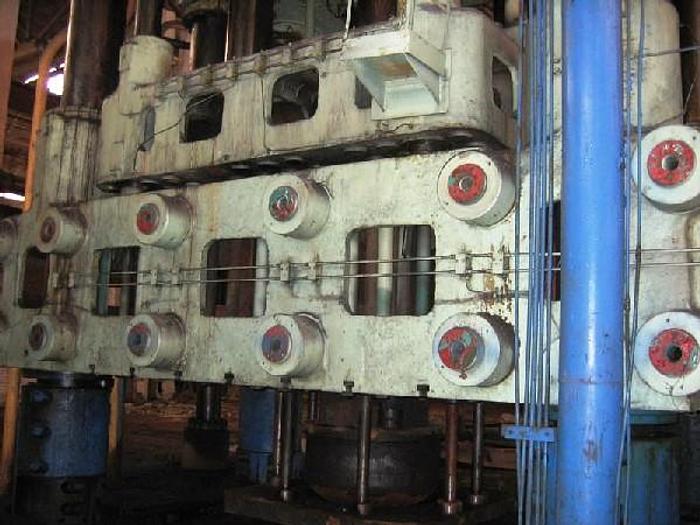

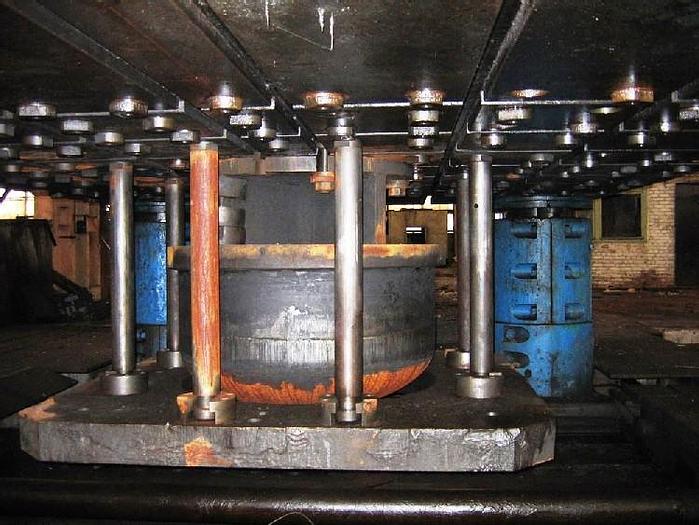

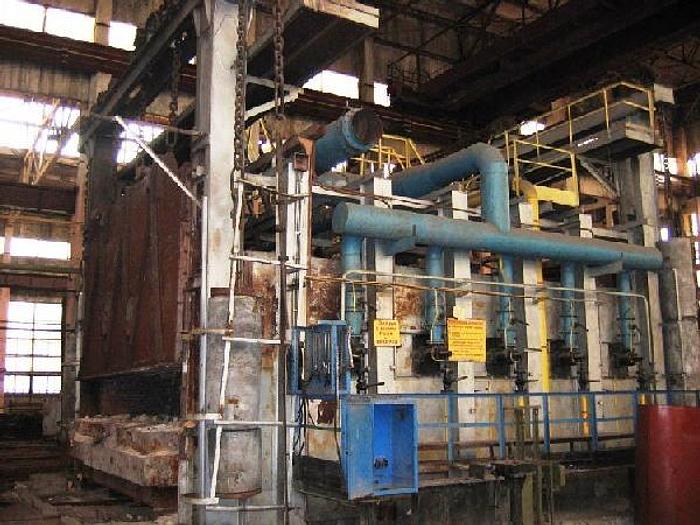

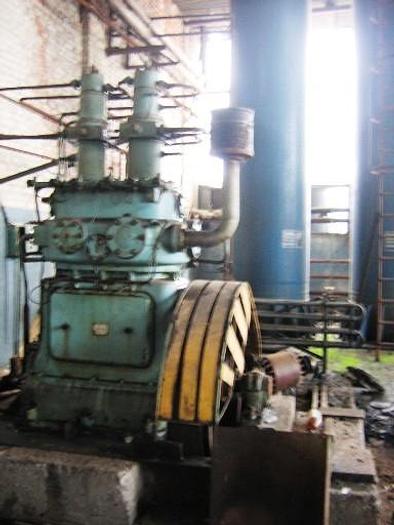

Press Sheet Stamping Hydraulic P239A

Hydraulic stamping press double action

Rated force of outtake slider:

I level 1000 tons ,

II level 2000 tons ,

III level 3150 tons ,

Rated force of pressure-exerting slider:

I level 1000 tons,

II level 2000 tons ,

Rated force of pickup stripping cylinders : 630 tons ,

Stroke of outtake slider : 1700 mm,

Stroke of pressure-exerting slider: 1700 mm,

Max Distance between table and outtake slider : 3100 mm,

Bed dimensions :

Left-Right : 4300 mm,

Front-Backward: 4300 mm,

Distance in a light between stroke limiters:

Left-Right :4500 mm,

Front-Backward : 2400 mm,

Max possible eccentricity of application of load

Simple action 150 mm,

Double action : 200 mm,

Bed stroke : 4350 mm,

Rated force of hydro pillow of a central extractor : 1000 tons ,

Stroke of a hydro pillow of a central extractor under bed : 500 mm,

Rated force of a side extractor : 125 tons ,

Stroke of side extractor under bed : 500 mm,

Pressure of operating fluid 320 kg/cm2,

Overall dimensions : 24300 x 12600 x 17105 mm ,

Height under floor level : 10205 mm,

Overall weight : 1145 tons ,

Diameter of a main cylinders : 650 mm,

Press weight : 1076 tons.
