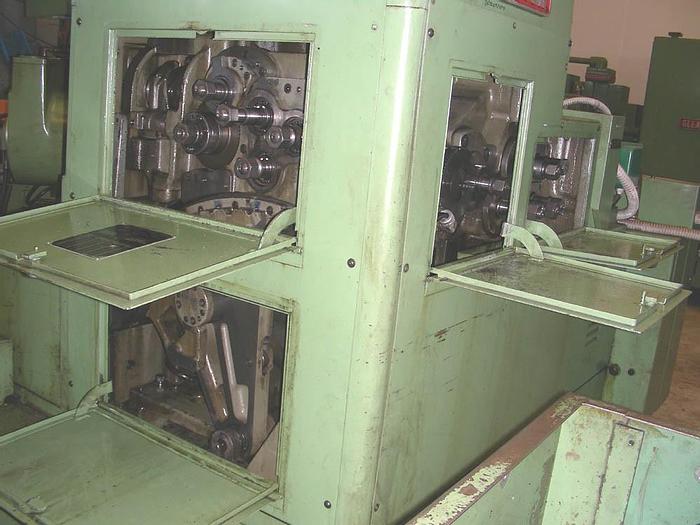

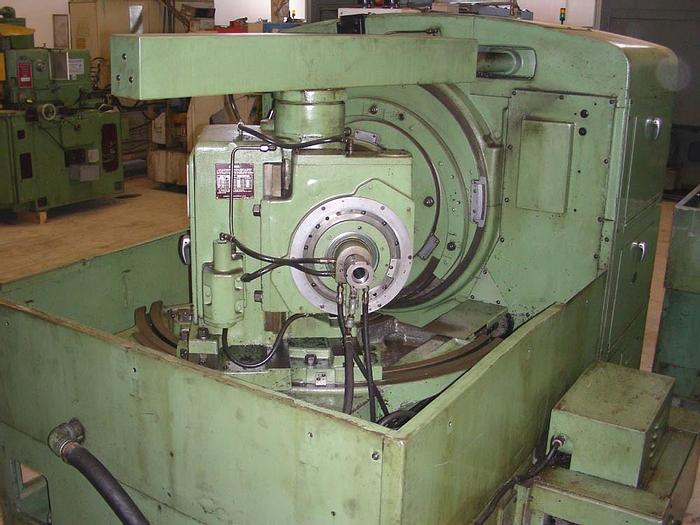

Gear Generator Spiral Bevel & Hypoid 106

Price

Contact us for price

orCall +91 9920651051

Specifications

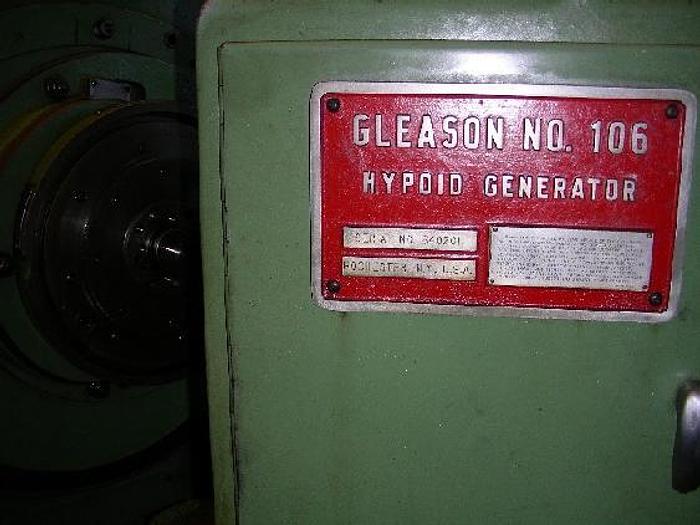

ManufacturerGleason USA
Model106
ConditionUsed
Stock NumberMA0162
Item conditionGood Condition
Capacity tons0

Description

Max.cone distance : 107 mm,

Max. pitch diameter (30° spiral angal) :

10 to 1 ratio : 215 mm,

2 to 1 ratio : 190 : mm,

1 to 1 ratio : 152 mm,

Max. face width: 31.7 mm,

Max depth : 15.8 mm,

Diametral pitch, coarsest : 6.35 Mod. ,

WORK SPINDLE

Diameter of taper hole at large end: 23 mm

Taper per foot : 15.5 mm,

Depth of taper: 152.4 mm,

Diameter of hole through spindle: 61.9 mm

Work Head Settings

Offset above center, maximum :76.2 mm,

Offset below center, maximum : 76.2 mm,

Distance from machine center to nose of spindle (maximum) : 31.7 mm,

ELECTRICAL EQUIPMENT

Main motor: 1500 RPM

Hydraulic motor : 1500 RPM

Coolant pump: 1½ horsepower, 3600 rpm (3000 rpm for 50 cycle),

Miscellaneous

Floor space : 2133 X 1549 mm,

Height : 1676 mm,

Net weight : 1676 mm,

Size of case : 1981 mm,
