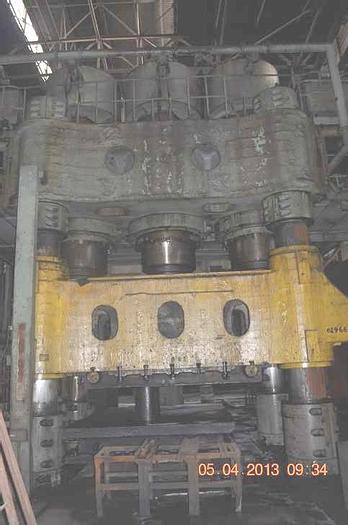

Press Sheet Stamping Hydraulic P3847

Hydraulic plate metal forming single action press

Nominal force:

 -1st stage : 16000 kN,

 -2nd stage : 31500 kN,

 -3rd stage : 50000 kN,

Slide stroke : 1100 mm,

Slide speed:

 -Idle down stroke: 150 mm/s,

 -Working stroke at 1 stage of force : 25,6 mm/s,

 -Working stroke at 2 stage of force : 12,8 mm/s,

 -Working stroke at 3 stage of force : 8,5 mm/s,

 -Return stroke: 100 mm/s,

Max distance between table and slide (daylinght) : 2300 mm,

Table dimensions:

 -Left-to-right : 3500 mm,

 -Front-to-back : 2800 mm,

Table stroke : 2850 mm,

Table speed : mm/s,

 -Out of press : 270 mm/s,

 -Into press : 270 mm/s,

Max tolerable at 3 stage of force:

 -Left-to-right : 200 mm,

 -Front-to-back : 100 mm,

Nominal pressure of working fluid : 15 MPa,

Overall press dimensions:

 -Left-to-right : 11600 mm,

 -Front-to-back : 16000 mm,

Height above floor level : 8640 mm,

Total power of electric motors : 425 kW,

Press weight : 800 tons.
