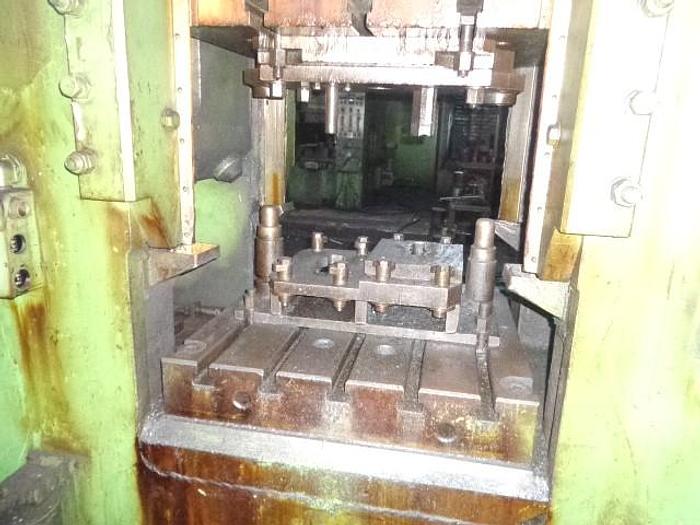

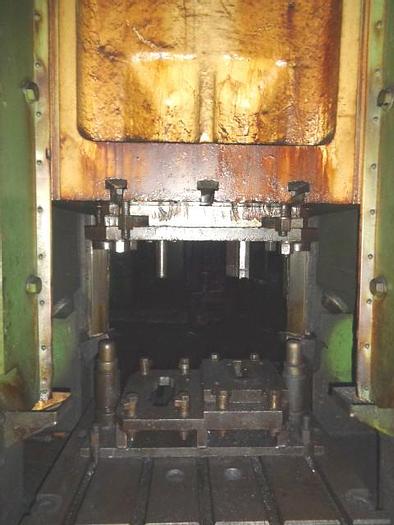

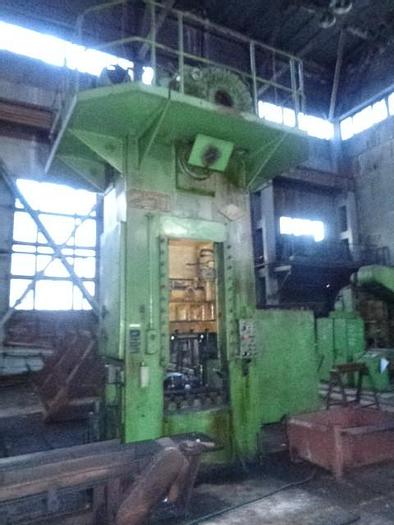

Press Trimming KB9534

Sold

Specifications

ManufacturerTMP Voronezh Russia
ModelKB9534
Year1978
ConditionUsed
Stock NumberMA0225
Item conditionGood Condition
Capacity tons250

Description

Capacity : 250 tons,

Slide stroke : 280 mm,

Ram continuous stroke number in minute : 32,

Ram single stroke number in minute : 24,

Ram size : 650 x 650 mm,

Table size : 800 x 800 mm,

Aperture in table : 500 x 500 mm,

Max distance between bolster and ram : 390 mm,

Adjustment : 140 mm,

Bolster size : 850 x 850,

Bolster thickness : 140 mm,

Main motor : 27 kW,

Dimensions - Length : 3260 mm,

Width : 2970 mm,

Height : 5180 mm,

Machine weight : 25.8 tons.
