Press Sheet Stamping Mechanical PKZVIII500.1FS

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerWMW Erfurt,Germany
ModelPKZVIII500.1FS
ConditionUsed
Stock NumberMA0226
Item conditionGood Condition
Capacity tons500

Description

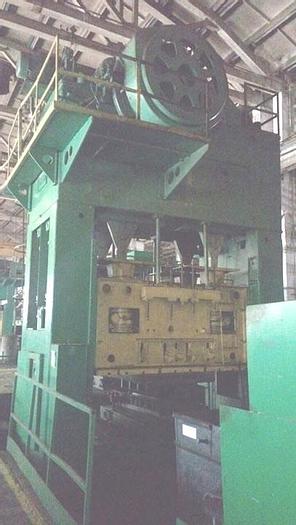

Straight side single action mechanical press :

Max. pressing force of slide (at 12,5 mm distance to the lower dead point) : 500 tons,

Max. pressing force of slide (at 200 mm distance to the lower dead point) : 160 tons,

Number of single strokes at continuous work per minute : 20,

Distance between side columns : 2800 mm,

Slide stroke : 500 mm,

Slide adjustment : 500 mm,

Max. extract depth : 200 mm,

Max. shut height between bolster plate and slide (stroke down, adjustment up) : 1200 mm,

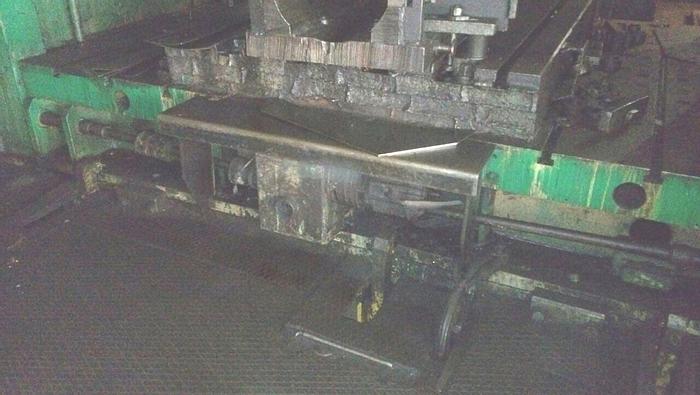

Height of pull-out table : 500 mm,

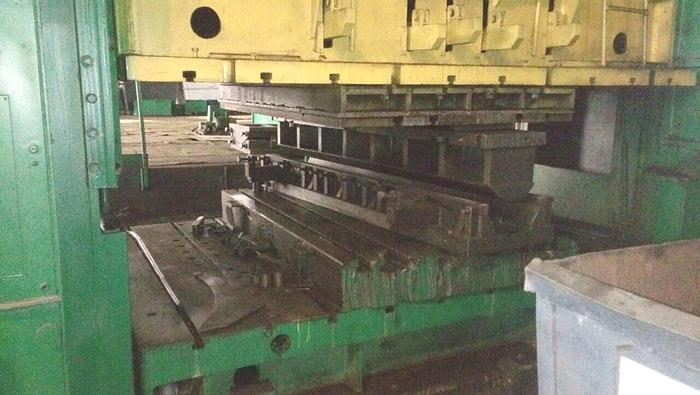

Bed area (width x depth) : 3150 x 2100 mm,

Slide area (width x depth) : 3150 x 2100 mm,

Opening in the bed (width x depth) : 2500 x 1600 mm,

Main motor power : 75 kW,

Number of no-load strokes per minute : 20,

Cushion force in the bolster : 100 tons,

Cushion stroke : 200 mm,

Cushion plate dimensions : 2480 x 1580 mm,

Height above floor : 7200 mm,

Lower ejector is available.

Equipped with a mechanical overload protection.
