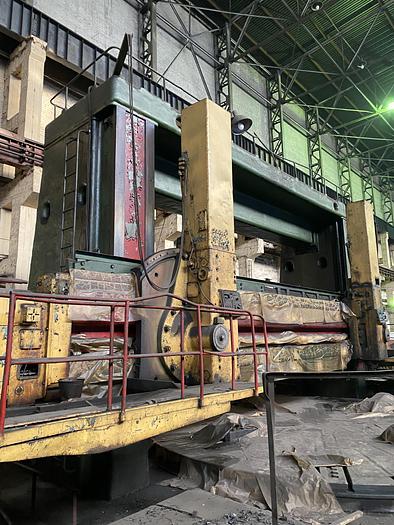

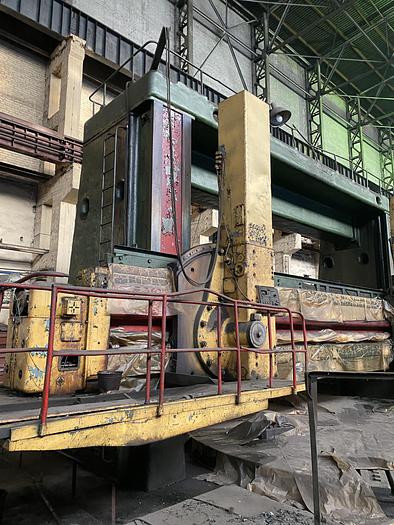

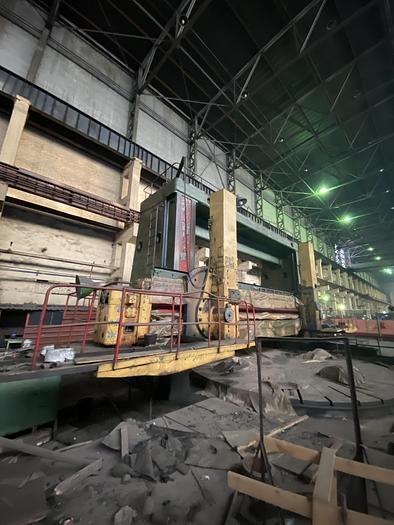

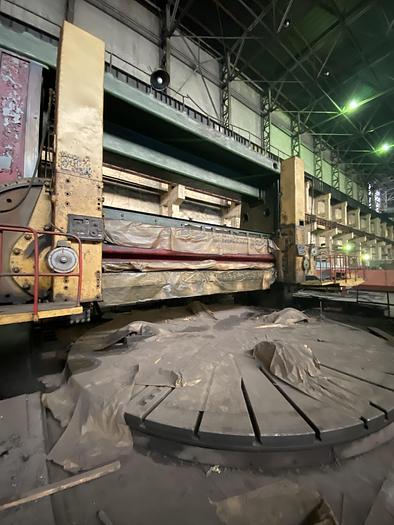

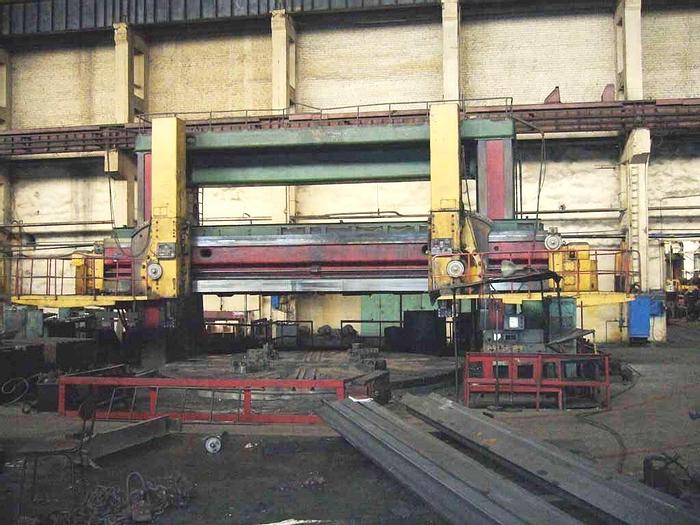

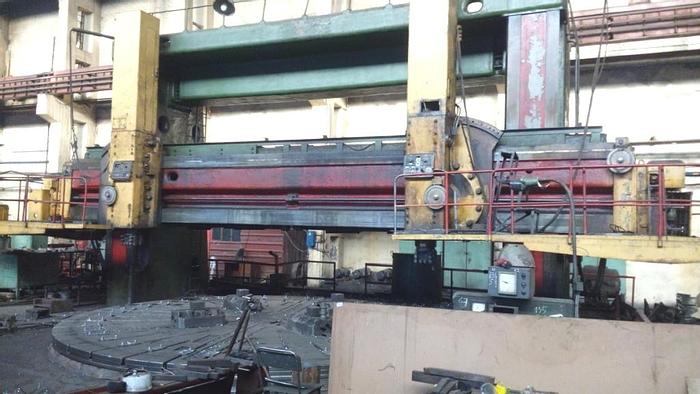

Lathe Vertical Turning 1580L
or
Call +919920651051
Specifications
| Manufacturer | Kolomna, Russia |
| Model | 1580L |
| Year | 1970 |
| Condition | Used |
| Serial Number | Very good working condition |
| Stock Number | MA0233 |
| Item condition | Good condition, under power |
Description

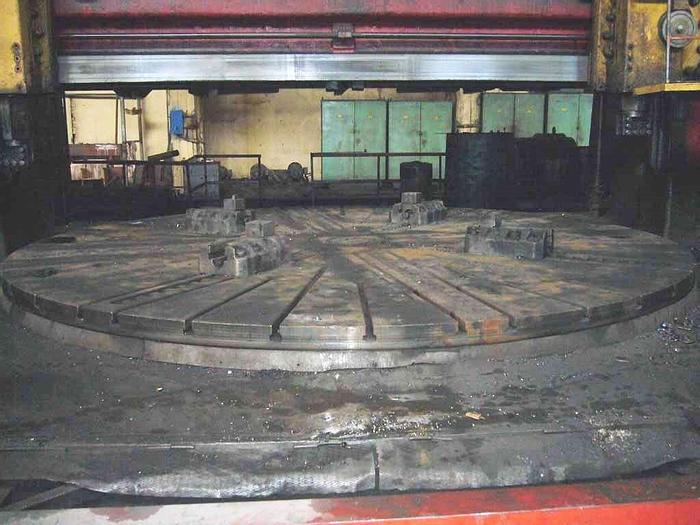

Face plate diameter : 7100 mm,
Max. work piece diameter : 8000 mm,
Max. work piece height : 3200 mm,
Max. work piece weight : 125 tons,
Max. travel of vertical supports : 4275 mm,
Max. slider movement : 2000 mm,
Supports possible work angle : - 15... +30 deg,
Chuck speed : 0,22...18,3 rpm,
Movement of vertical and horizontal feeds : 0,0352...285 mm/min,

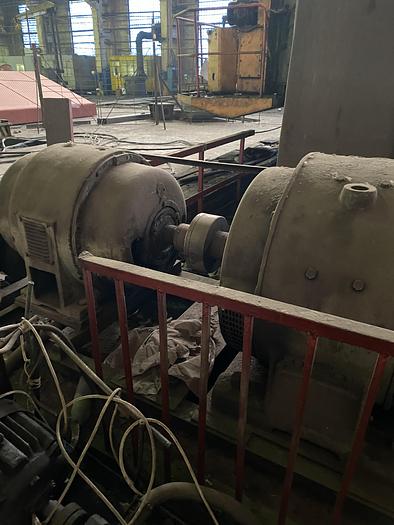

Main electric motor power : 132 kW,
machine overall dimensions : 8615 x 17600 x 9800 mm,
Height above floor level : 8300 mm,
Max. work-piece weight: 125 tons,
Machine weight : 257 tons.
Machine full complete and very nice working condition.
