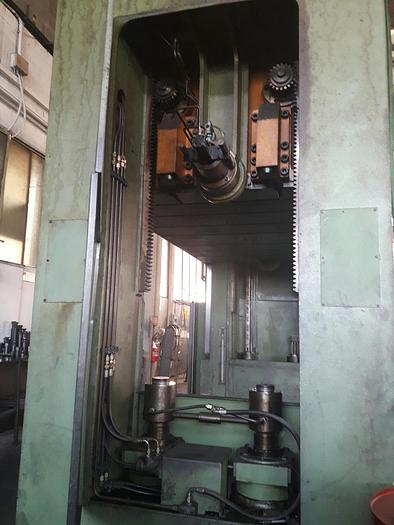

Press Sheet Stamping Hydraulic P400

Double upright and double cylinder

Capacity : 400 tons,

triple effect,

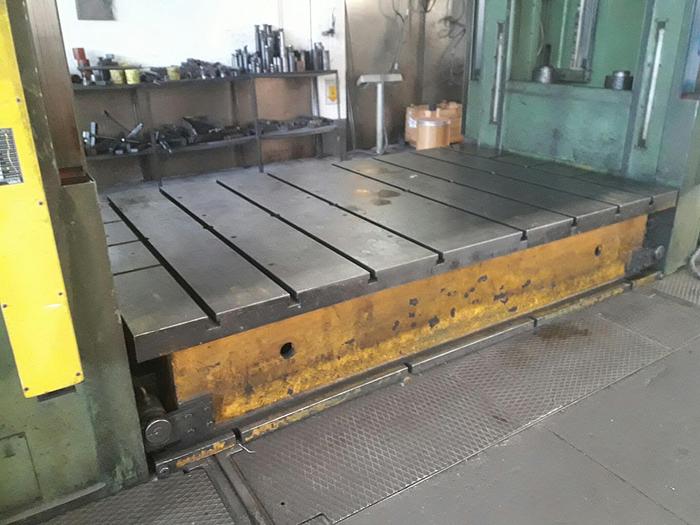

working table : 3000 x 1800 mm,

passage between Shoulders : lateral with cutting cylinders,

passage between uprights : 3000 mm,

lower die cushion : 200 ton, 350 mm,

upper die cushion : extraction 80 ton,

slide stroke : 1250 m (max. distance 1800 mm),

modem bolster

installed power : 42 Kw,

approaching speed : 125 mm/sec,

working speed : 8-12,5 mm/sec,

return speed : 80 mm/sec,

Technical manuals are available
