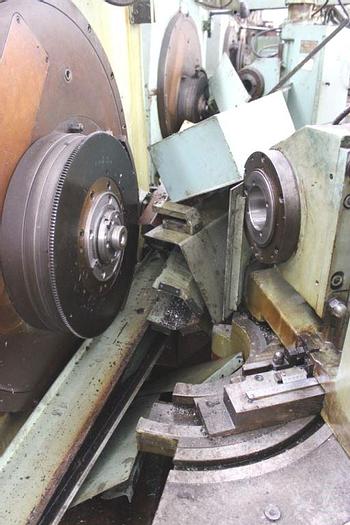

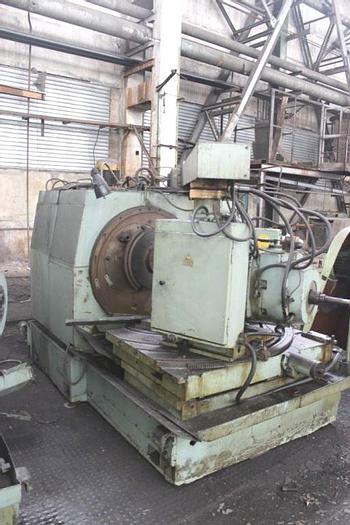

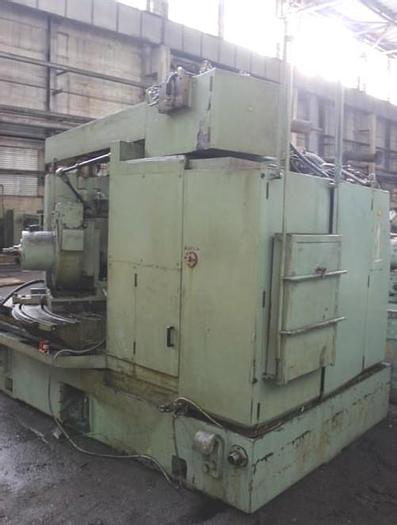

Gear Generator Spiral Bevel & Hypoid CT280.022

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerRussian
ModelCT280.022
Year1991
ConditionUsed
Stock NumberMA0285
Item conditionGood Condition
Capacity tons0

Description

Work piece maximum diameter : 800 mm,

The greatest external district module : 16 mm,

The greatest external height of a spur : 36 mm,

The greatest average conical distance : 360 mm,

The greatest width of a gear wreath : 125 mm,

The least corner of a dividing cone : 5 degree,

Number of spur : 5-150,

The greatest hypoid displacement :- up : 125 mm, down : 125 mm,

Distance from an end face of a spindle of a wheel head of a product up to the center of a semiautomatic device : 135-600 mm,

Nominal diameter of spur-carved heads : 160; 200; 250; 315; 400; 500 mm,

The greatest radial installation of a tool spindle concerning an axis : 320 mm,

Frequency of rotation of a tool spindle : 18-172 rpm,

Time of a cycle с 7 And more,

Main electric motor power : 7,5 kW,

Total power of the installed electric motors : 17 kW,

Machine overall dimensions :-

Length : 3485 mm,

Width : 3730 mm,

Height : 2860 mm,

Machine weight : 16.4 tons.
