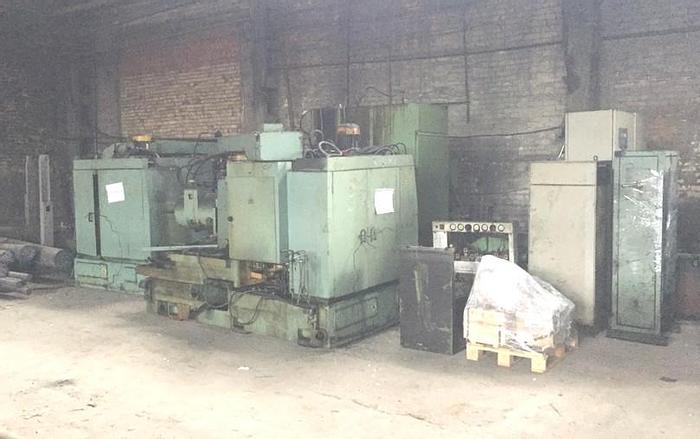

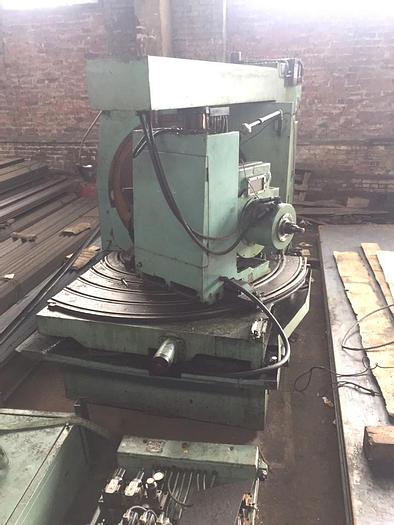

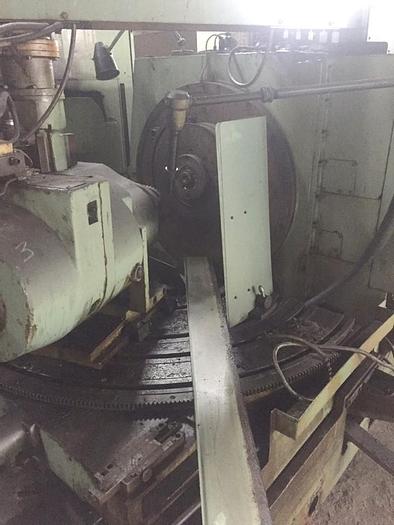

Gear Generator Spiral Bevel & Hypoid CT270

Max. gear wheel diameter : 500 mm,

Module : 8 mm,

Max. gear wheel tooth height : 22 mm,

Max. gear wheels cone distance : 220 mm,

Max. gear ring width : 80 mm,

Inclination angle of tooth : any,

Number of wheel teeth : 5...150,

Min. angle of dividing cone : 5 degrees,

Table diversion to edge : 100 mm,

Nominal diameter of gear - cutting heads : 100, 125, 160, 200, 250, 320, 400 mm,

Machine dimensions : 2885 x 2570 x 1995 mm,

Machine weight : 9 tons,

For finishing bevel and hypoid gears with circular teeth.
