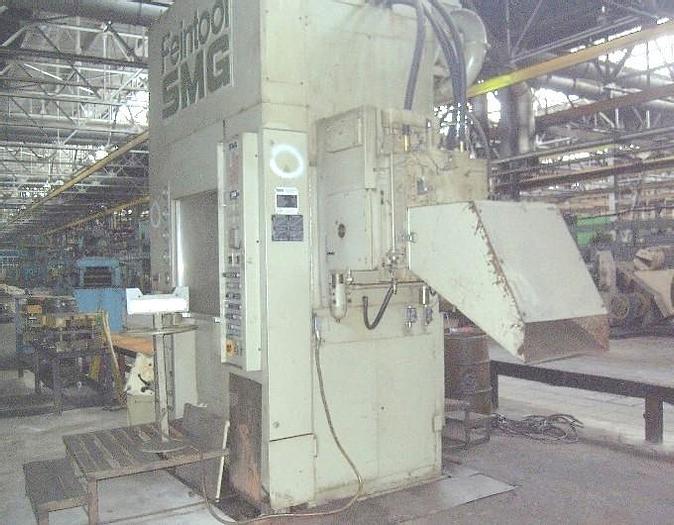

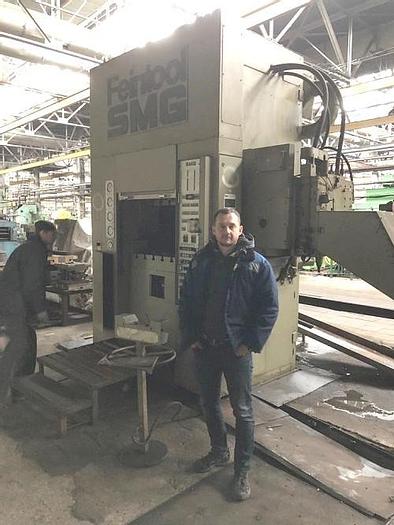

Press Fineblanking Mechanical HFA6300

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSMG Feintool
ModelHFA6300
Year1989
ConditionUsed
Stock NumberMA0318
Item conditionVery good condition
Capacity tons630

Description

Plate thickness : 16 mm,

Slider:

Total nominal force : 630 tons,

Stroke per min. : 30 mm,

Stroke: 150 mm,

Cutting speed, min : 3 mm / s,

Cutting speed, max : 50 mm / s,

Approach speed : 120 mm / s,

Return speed : 135 mm / s,

V-ring:

Nominal force: 320 ton,

Stroke: 40 mm,

Reverse slider:

Nominal force: 160 ton,

Stroke: 40 mm,

DIMENSIONS OF ACCESSORIES:

Bottom table - width: 910 mm,

Bottom table - depth: 1350 mm,

Top table - width: 900 mm,

Top table - depth: 900 mm,

Clearance, max .: 410 mm,

Belt feeder:

Type: roller feeder:

Nominal force: 6000 kN,

Leaf width, max: 450 mm,

Sheet thickness, max: 16 mm,

Feed step, min .: 1 mm,

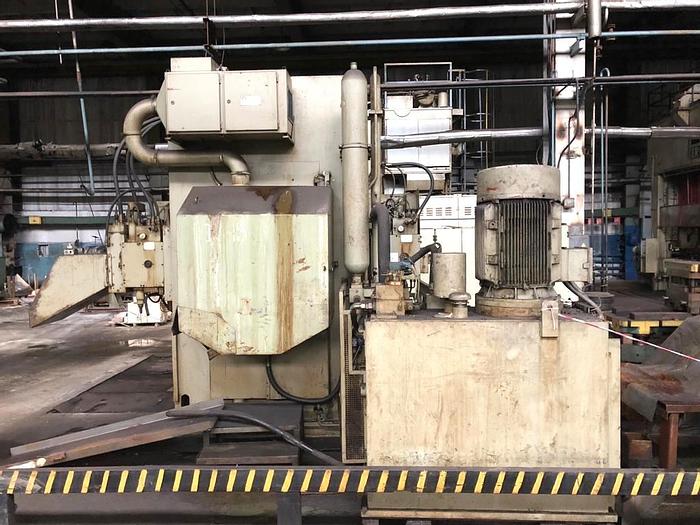

Main drive : 75 Kw.


The press is used for finishing.

Technical documentation available.

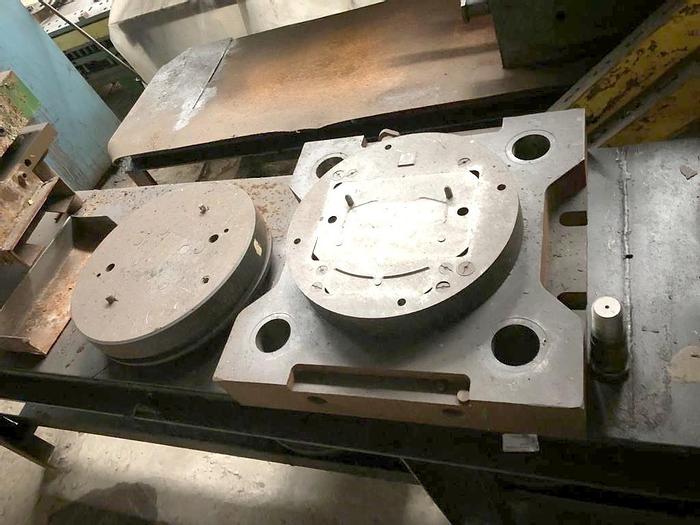

The kit includes an unwinding device for straightening the metal and a tooling for stamps.
