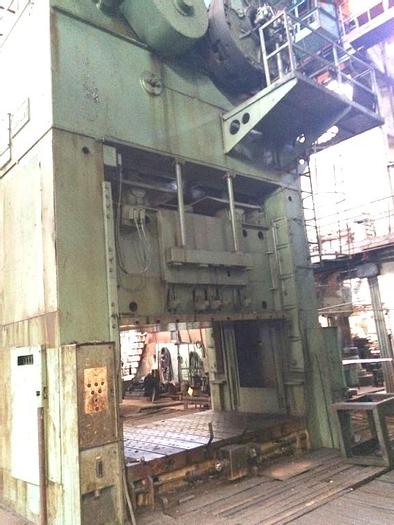

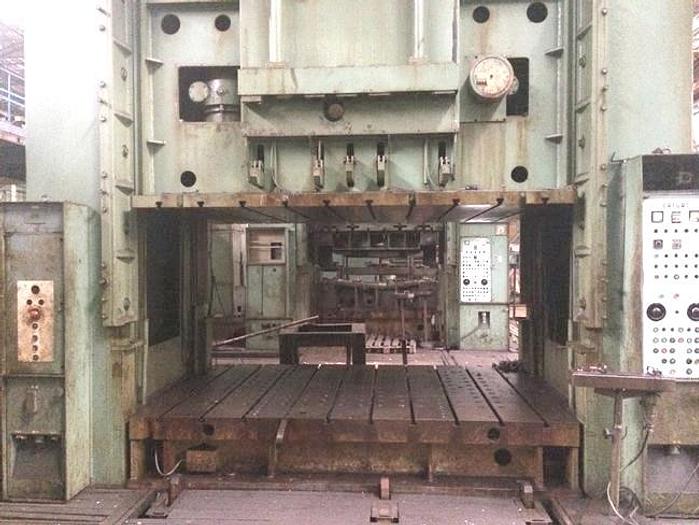

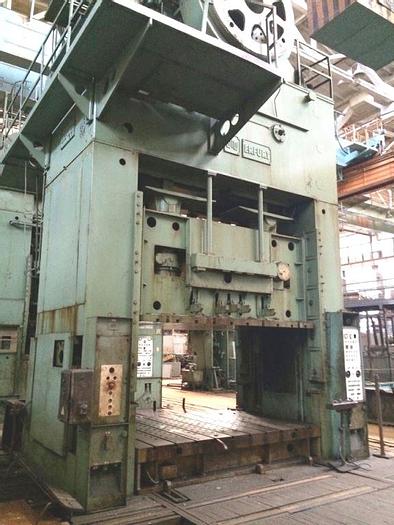

Press Sheet Stamping Mechanical PKZVIII500.1FS
![Used Press Sheet Stamping Mechanical PKZVIII500.1FS](https://i.machineryhost.com/a4b3ac0c44e7da95ed4d9ca850b95ba4/large-NA29510_PKZVIII500_1FS_1_1.jpg)
Specifications
Manufacturer | WMW Erfurt, Germany |
Model | PKZVIII500.1FS |
Condition | Used |
Stock Number | MA0321 |
Item condition | Good working condition |
Capacity tons | 500 |
Description
Capacity : 500 tons,
Slide stroke : 500 mm,
Slide adjustment : 500 mm,
Max. shut height between bolster plate and slide (stroke down, adjustment up) : 1200 mm,

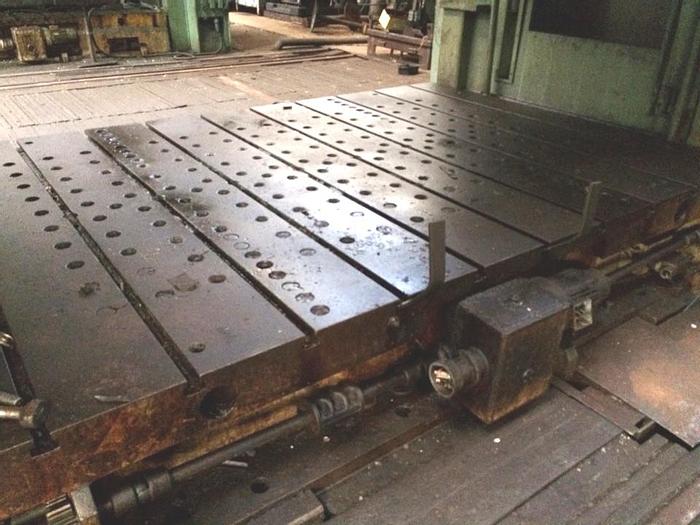

Bed area : 3150 x 2100 mm,
Slide area : 3150 x 2100 mm,
Opening in the bed : 2500 x 1600 mm,
Main motor rating : 75 kW,
Strokes per minute : 20,
Cushion force in the bolster : 100 tons,
Cushion stroke : 200 mm.
