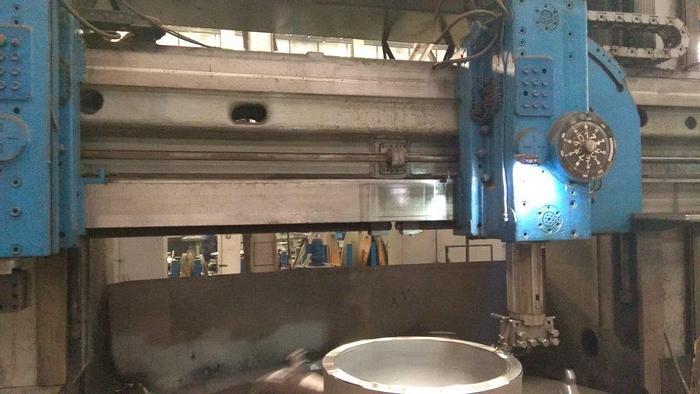

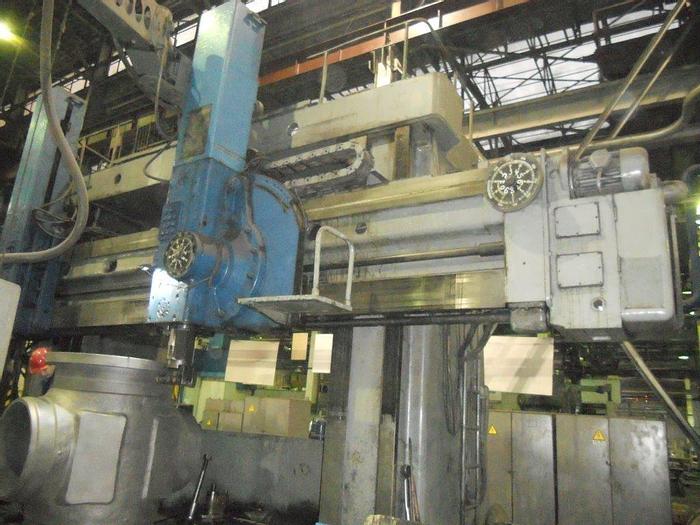

Lathe Vertical Turning 1540

Swing: 4000 mm,

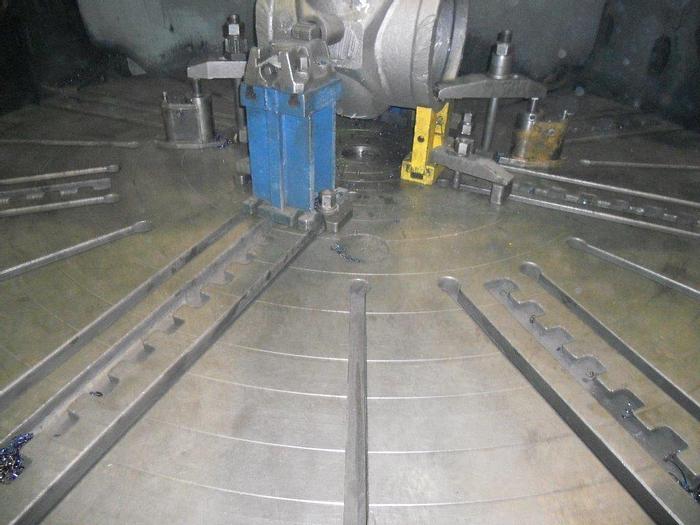

Diameter of a face plate: 4000 mm,

Height of work-piece: 2000 mm,

Max. slider stroke: 1250 mm,

Right slider type: turning,

Left slider type: combinated,

Corner of supports turn: 15 +40,

Weight of the work-piece on a faceplate: 50000 kg,

Effort of cutting to a right support: 63 kH,

Effort of cutting to the left support: 50 kH,

The max. total effort of cutting by two supports: 100 kH,

Table speeds: 0.52 - 48.7 rpm,

Feeding: 0,059 - 470 mm/min,

Rapid feeding: 2715 mm/min,

Capacity of the main drive: 63 kw,

Height above a level of a floor: 6000 mm,

Dimensions (length-width-height): 5900 x 10100 x 7200 mm,

Machine weight: 100 tons.
