Plano Miller CNC U5-1500

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSchiess Froriep
ModelU5-1500
Year2007
ConditionUsed
Stock NumberMA0330
Item conditionNot under power
Capacity tons0

Description

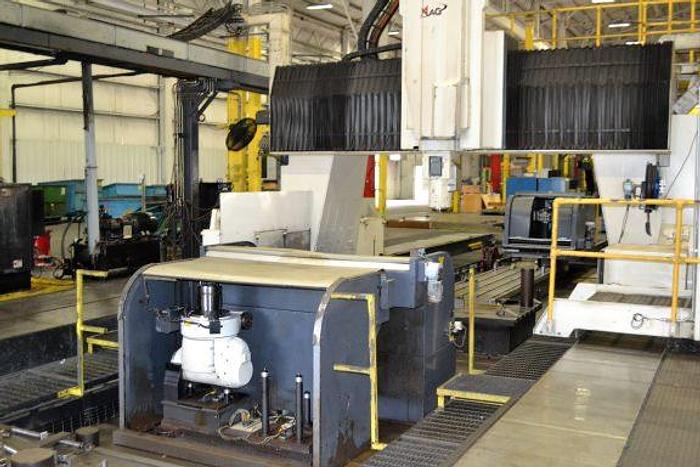

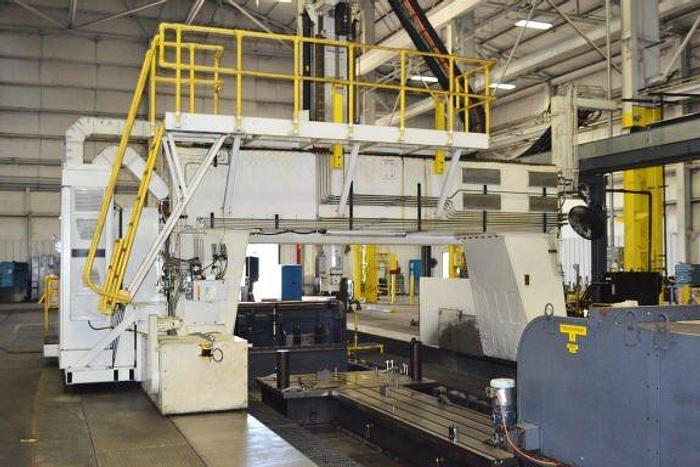

Cincinnati MAG U5-1500 CNC Travelling Gantry Rail Type Milling Machine :



X-Axis, Longitudinal Gantry Travel : 18600 mm,

Y-Axis, Head Travel : 3600 mm,

Z-Axis, Ram Vertical Travel : 1500 mm,

Distance Between Columns : 4975 mm,

Distance Across Ways : 5330 mm,

Length of Rails : 21600 mm,

Work Zones : 2,

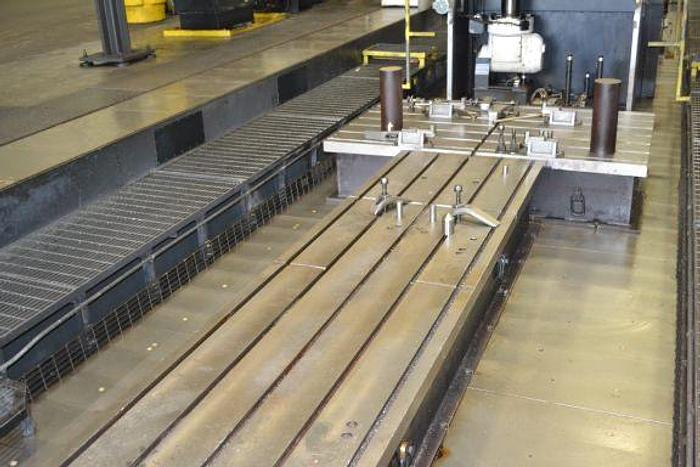

Working Surface of Each Work Zone : 2950 x 5900 mm,

Ram Cross Section : 500 x 500 mm,

Spindle Speeds, Vertical Head : 40-3000 RPM,

Spindle Speeds, Right Angle Head : 20-3000 RPM,

Spindle Drive Motor, High Torque : 70 HP,

Spindle Drive Motor, S6-60 : 85 HP,

High Range Torque : 442 Ft Lbs @ 187.5 RPM,

Low Range Torque : 1770 Ft Lbs @ 187.5 RPM,

S6-60 : 2348 Ft Lbs @ 187.5 RPM,

Spindle Taper : CAT 50,

Spindle Rotation : Prog Bi-Directional,

Speed Steps : 1 RPM Increments,

Automatic Speed Selection Ranges : 3000 RPM,

Feed Rates X, Y Axes : 600 IPM / 787 IPM,

Feed Rates Z-Axis : 500 IPM,

Floor Space, Moving Width x Length : 7675 x 26657.5 mm,

Overall Height : 6285 mm,


EQUIPPED WITH:

Siemens Sinumerik 840D CNC Control,

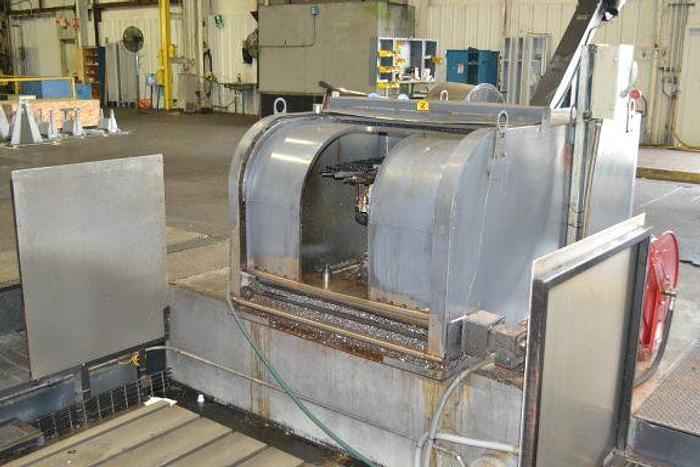

(2) 30 Position ATC (Floor Mounted),

Automatic Head Changer,

1-High Torque Vertical Spindle,

1-High Torque Right Angle Head with 1-Degree Indexing,

Thru Spindle Coolant,

Flood Coolant,

2-Station Automatic Head Changer,

5-Station Tool Rack,

Renishaw RMP60 Spindle Probe System,

Coolant & Chip Conveyor System.


NOTE:

2-Axis CNC Nutating Available at Additional Cost.
