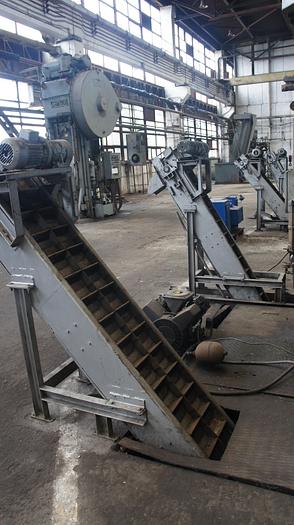

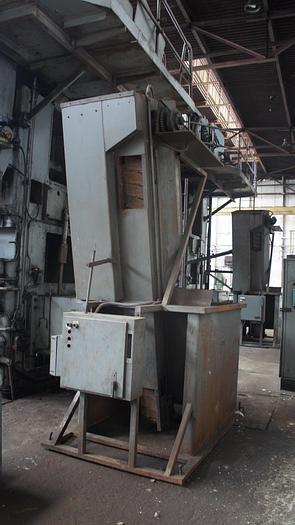

Transfer Press Line

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerVerson
ModelT-ES1-1250-66-48T
Year1981
ConditionUsed
Stock NumberMA0333
Item conditionGood Condition
Capacity tons1250

Description

This Line makes bearing cages for needle bearings through profiling, rolling and welding butt processes from metal sheet band

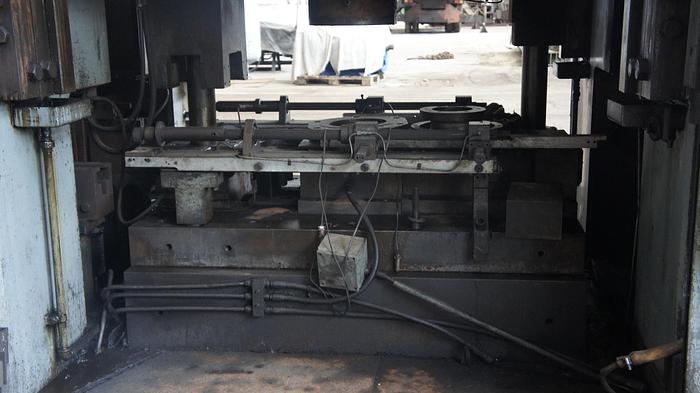

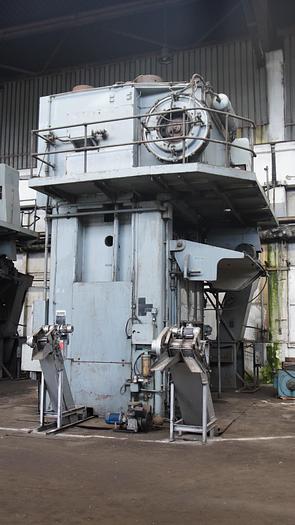

1. Mechanical Press :

Capacity : 1250 tons,

Stroke of press : 356 mm,

Forming sections : 3,

Table size : 1676 x 1220 mm,

Capacity of liftout : 5O tons,

Adjustment : 152 mm,

Capacity of cushion : 175 tons,

Stroke of cushion : 13 mm,

Stroke of liftout : 101.6 mm,

Speed : 30-50 strokes/min,

Weight : 192 tons.

Tools : Yes,

Technical documentation : Yes,

Spare parts : No,

Number of machines : 2.


Working stations automatic transfer press for bearing rings through cold extrusion for radial thrust tapered roller bearings, maximum diameter of rings 100 mm.


2. Steel strip forming and cutting needles seat machine type- BSA :

Two point eccentric press : 350 KN,

Stroke : 16 mm,

Accuracy of position : 0.02 mm,

Feeder width max. : 5O mm,

Feeder up to max length : 220 mm adjustable,

Feeder precision : ± 0.005 mm,

Capacity : 60-300 pcs/min,

No. workstation roller : 7,

Max thickness of plate : 2 mm,

Roller diam : 160 mm,

Max profile height : 45 mm,

Weight : 1.9 tons.


3. Machine for rolling and welding cages type GRM-50

Presscam : 80 KN,

Stroke : 15 mm,

Cut lengths : up to 400 mm (for max diam. 127 mm),

Aggregate force per sled : 40-80 KN,

Capacity : 132 pcs/min,

Weight : 3.6 tons.
