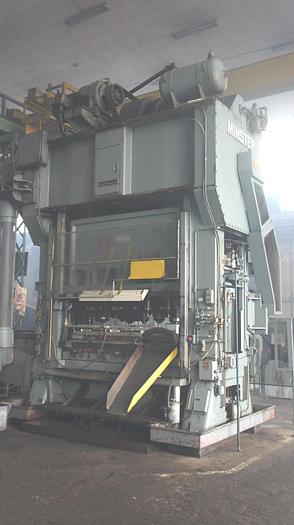

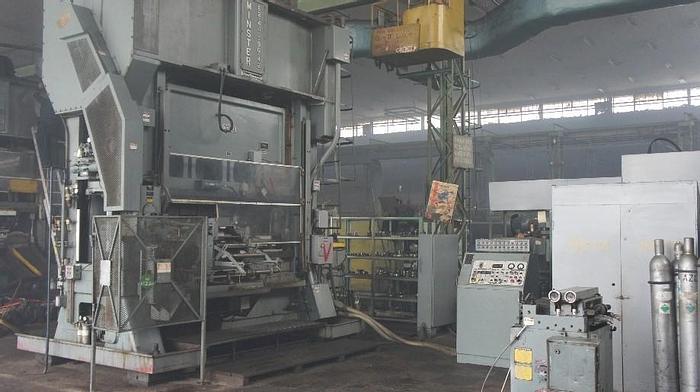

Press Transfer Mechanical E2400

Price

Contact us for price

orCall +919920651051

Specifications

ManufacturerMinster
ModelE2400
Year1981
ConditionUsed
Stock NumberMA0335
Item conditionGood working condition
Capacity tons400

Description

Forming sections : 7,

Capacity : 400 tons,

Area of slide : 2438 x 1066 mm,

Area of bolster : 2438 x 1066,

Stroke of side : 203.2 mm,

Adjustment : 152.40 mm,

Distance floor to top of bed : 914.4 mm,

Shut height on bed : 914.4,

Shut height on bolster : 762 mm,

Stroke per minute : 35-70,

Thickness of sheet : 0.8-3 mm,

Width of sheet : 50-200 mm,

Diameter range : 90-190 mm,

Quantity no : 2

Material used for cages production :TDA (double pickeld sheet),

Overall dimensions (W x L x H ) : 3400 x 5400 x 6000 mm,

Weight : 63.5 tons.

Technical Documentation is Available.

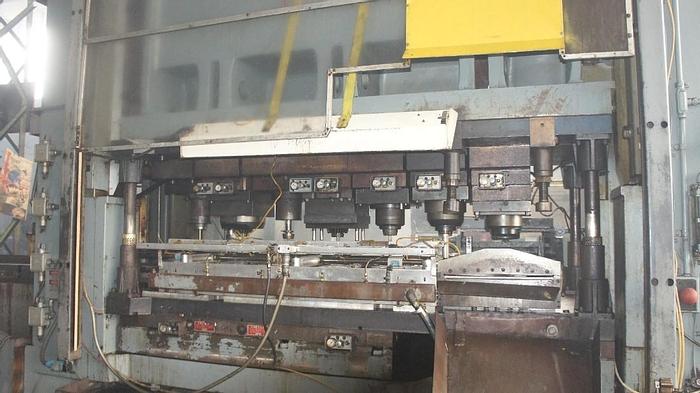

Automatic transfer press, with 7 forming sections, it makes bearing cages from metal sheet band for radial ball bearings and axial deep groove tapered roller bearings.

In our factory had been producing tapered roller bearings cages with diameter of 114 mm.
