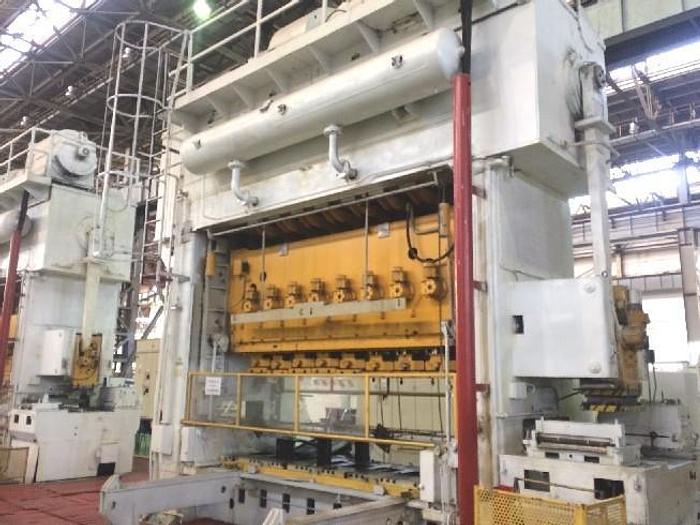

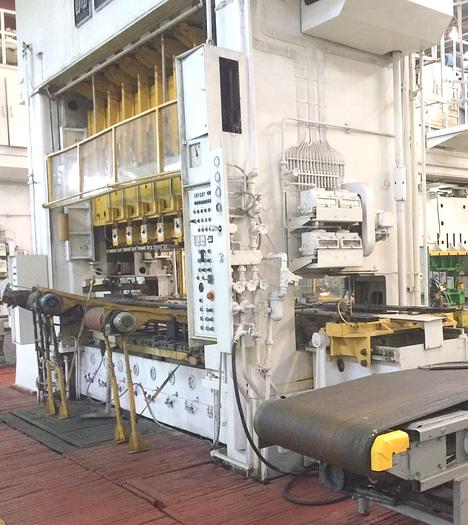

Press Transfer Mechanical PTRZSST320/9/400

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerWMW Erfurt,Germany
ModelPTRZSST320/9/400
Year1990
ConditionUsed
Stock NumberMA0340
Item conditionGood Condition
Capacity tons320

Description

Total Capacity : 320 tons,

Max. capacity of main ram between uprights : 250 tons,

Max. capacity of each die holder : 80 tons,

Max. extrusion depth : 140 mm,

Max capacity of side ram : 70 tons

Qnt. of works position :

a) Extrusion positions (between uprights) : 8,

b) Cut position (outside of uprights) : 1,

Number of strokes for continuous operation : 16-32/min,

Main motor power : 63 kW,

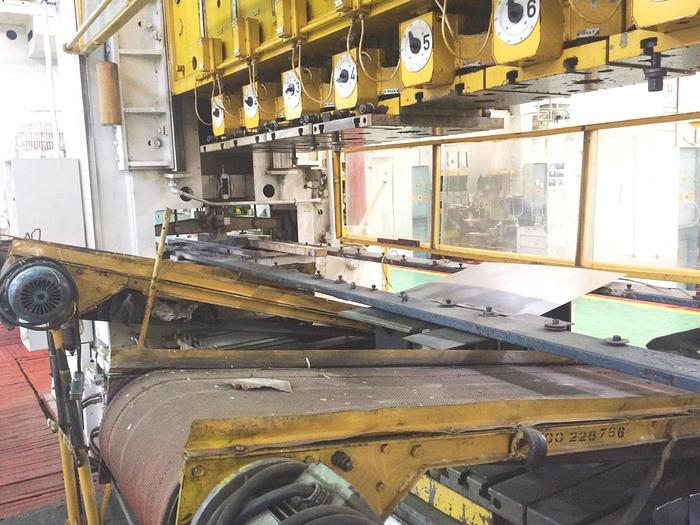

Speed of band feeding : 10 и 15 m/Min,

Distance between uprights : 4000 mm,

Distance between centers of position : 400 mm,

Stroke of main ram : 420 mm,

Max. distance between bed and die holder : 100 mm,

Thickness of stamp plate : 80 mm,

Max. distance between bed and side ram : 980 mm

Max diameter of round workspcs. : 375 mm,

Dimensions of clamp surface of :

bed : 1090 х 1730 mm,

ram : 355 х 450 mm,

stamp plate : 3300 х 1000 mm,

Max width of band : 500 mm,

Max thickness of band : 2 mm,

Max feeding stroke by one ram stroke : 400 mm,

Weight : 120 tons.

Quantity of press : 3.
