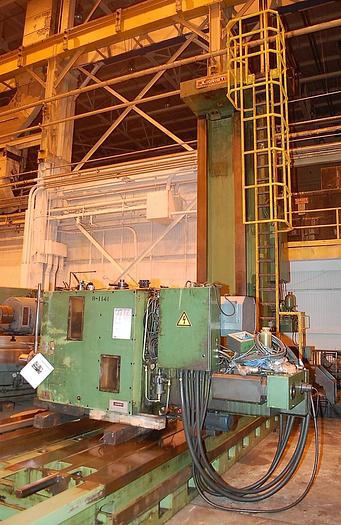

Borer Horizontal Floor Type CNC 150MP


Contact us for price

orCall +91 9920651051


Stock NumberMA0342
Item conditionDisassembled
Capacity tons150


Spindle Diameter : 150 mm,

Spindle Taper : 50 CAT,

Vertical Head Travel Y-Axis : 3000 mm,

Column Travel X-Axis : 6000 mm,

Column Infeed Travel W-Axis : 750 mm,

Spindle Travel Z-Axis : 1000 mm,

Spindle Speeds (2-Ranges) : 5-1600 RPM,

Spindle Feeds : .0012-13 mm/rev,

Feeds : 0.2-2032 mm/min,

Rapid Traverse : 3353 mm/min,

Floor Space L x W : 13919 mm x 2896 mm,

Overall Height : 5766 mm,

Electrics : 480/3/60,

Total Installed Power : 110 KVA.

Equipped with :

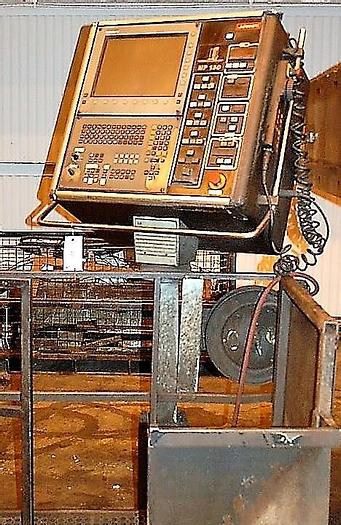

Heidenhain 426 CNC Control,

Universal Right Angle Head,

Spindle Support,

Hardened Ways,

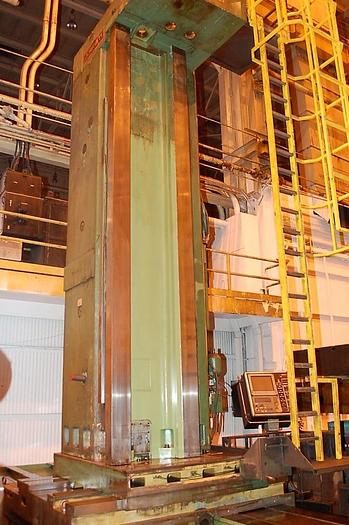

In Feeding Column,

Ball Screws on Y & Z Axes,

Flood Coolant,

Chip Conveyor,

50 KW Spindle Motor,

Technical manuals available.

Headstock, Way Surfaces, Spindle, In Good Operating Condition.

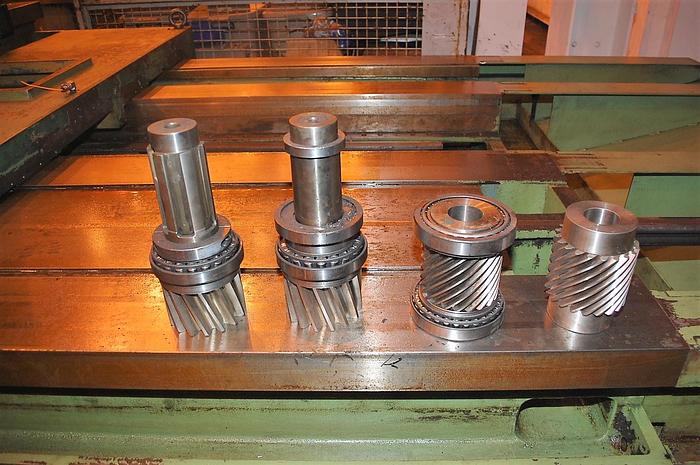

X-Axis Pinion Gear Need to Be Rebuilt. The facility was in the process of replacing the gears again when they decided to sell.

There is no rotary table with the machine.
