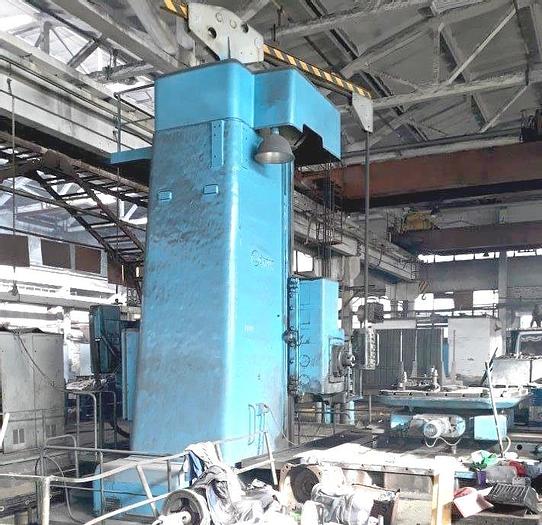

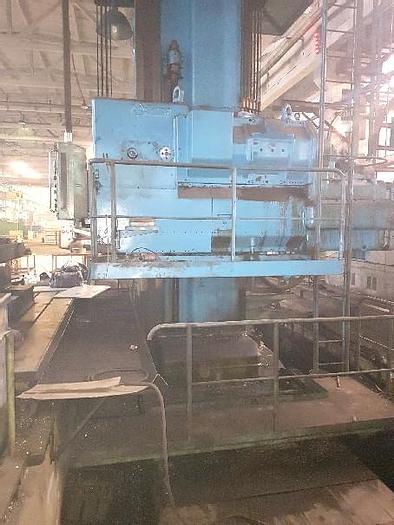

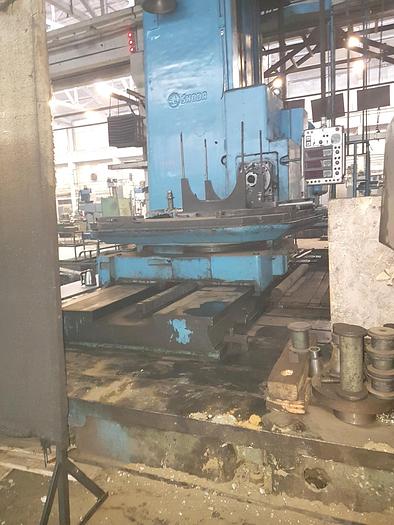

Borer Horizontal Floor Type W200H

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSkoda Czech
ModelW200H
Year1980
ConditionUsed
Stock NumberMA0345
Item conditionGood working condition
Capacity tons200

Description

Spindle diameter : 200 mm,

X travel : 4000 mm,

Y travel : 3150 mm,

Z travel : 2000 mm,

W travel : 1600 mm,

Spindle cone : 120 metric,

Max. spindle axis torque : 34300 Nm,

Frame height : 550 mm,

Slides width : 2000 mm,

Table size : 2000 x 2000 mm,

Max. table load : 25000 kg,

Quill dimensions : 450 x 450 mm,

Spindle turning speed range : 0,8...630 rpm,

Boring spindle feeds : 0,63...125 / 6,3...1250 / 12,5...2500 mm/min,

Milling head motor capacity : 77 kW,

Total power required : 180 kW,

Machine dimensions : 5900 x 13800 x 8270 mm,

Machine weight : 84000 kg.

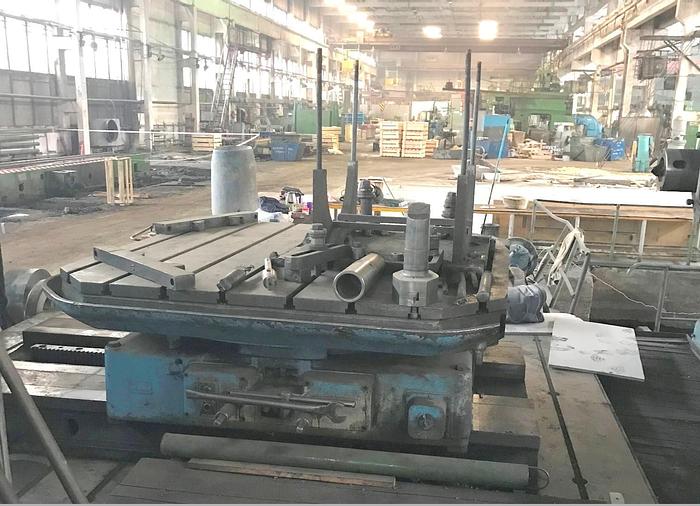

With Rotary Table : 2000 x 2000 mm,

Milling heads,

Tail-stock,

Two T-slot floor plates : 4000 x 5000 mm.

Machine can bore : 5000 mm.
