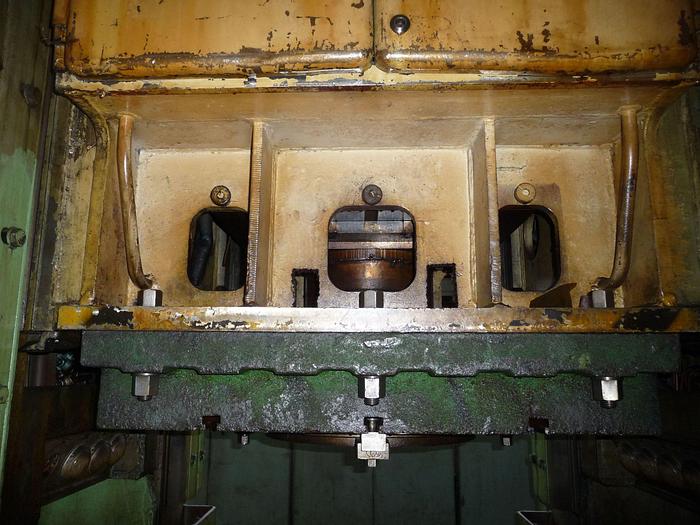

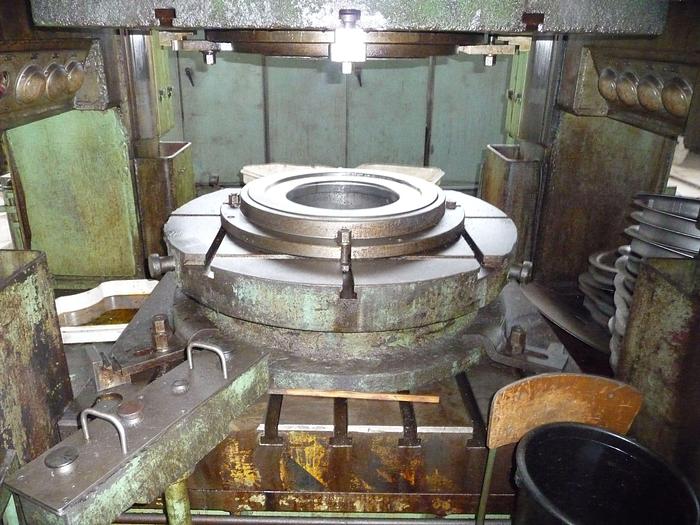

Press Sheet Stamping Mechanical Double Action KA5535

Price

Contact us for price

orCall +91 9920651051

Specifications

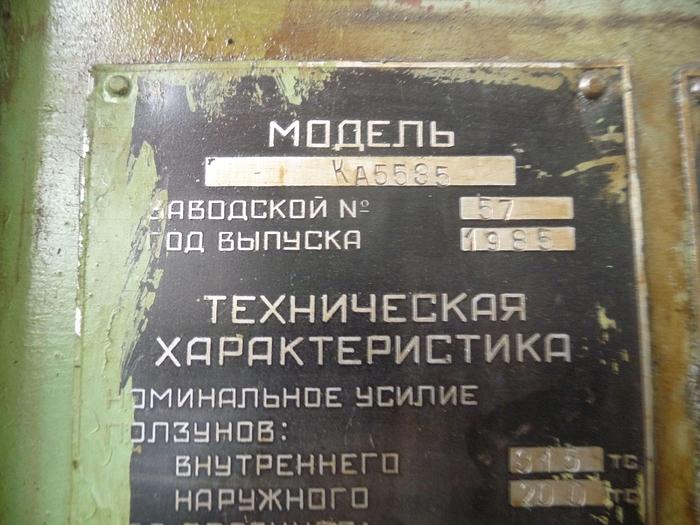

ManufacturerTMP Voronezh Russia
ModelKA5535
Year1985
ConditionUsed
Stock NumberMA0356
Item conditionGood Condition
Capacity tons315

Description

Capacity : 315 tons,

Nominal holding down force : 200 tons,

Drawing ram stroke : 630 mm,

Holding down ram stroke : 400 mm,

10-16 SPM,

Shut height for drawing ram : 720 mm,

Shut height for holding down ram : 620 mm,

Bolster plate to ram adjustment stroke : 200 mm,

Bed dimensions : 1250 x 1250 mm,

Drawing ram dimensions : 800 x 800 mm,

Holding down ram dimensions : 1250 x 1250 mm,

Bolster plate thickness : 180 mm,

Main drive motor power : 75 kW,

Overall dimensions : 3470 x 3720 x 6580 mm,

Mass 58.1 tons.
