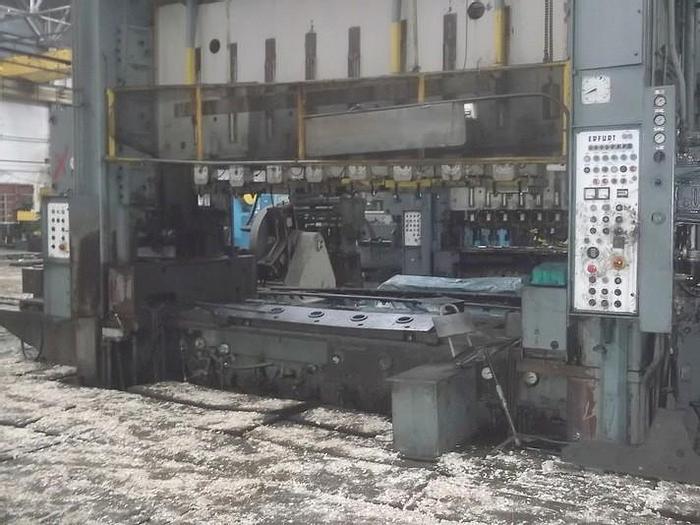

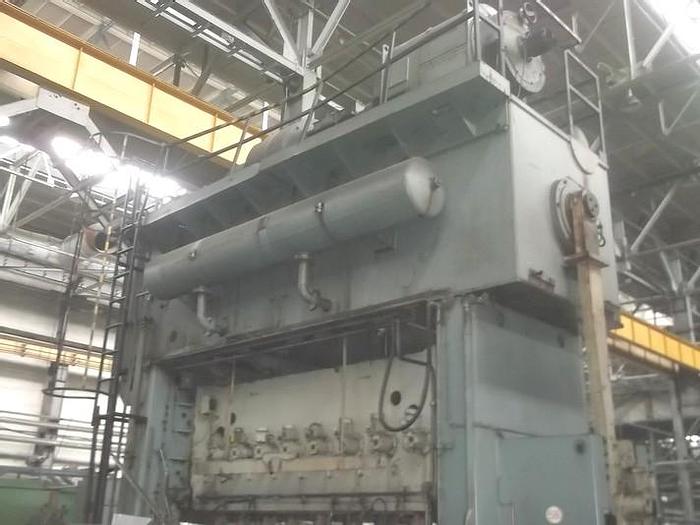

Press Transfer Mechanical PTRZSST320/9/400

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerWMW Erfurt,Germany
ModelPTRZSST320/9/400
ConditionUsed
Stock NumberMA0364
Item conditionGood Condition
Capacity tons320

Description

Capacity : 320 tons,

Max. capacity of main ram between uprights : 250 tons,

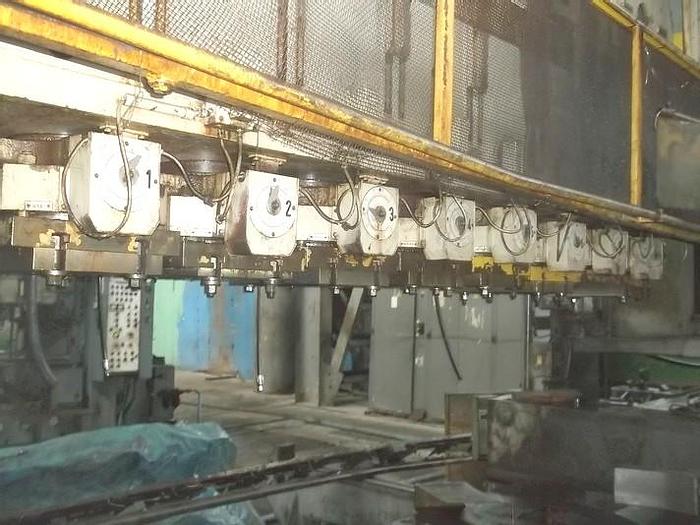

Max. capacity of each die holder : 80 tons,

Max. extrussion depth : 140 mm,

Max capacity of side ram : 70 tons,

Qnt. of worksposition:

a) Extrussion positions (between uprights): 8,

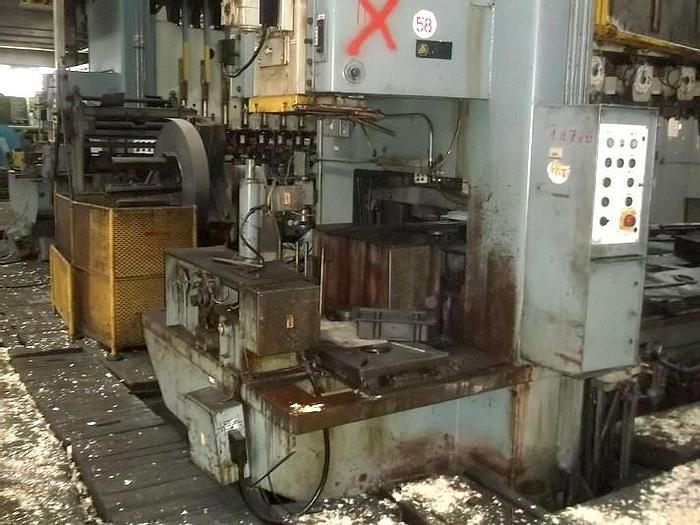

b) Cut position (outside of uprights) : 1,

Ram stroke in Min: (stepless ajust) : 16…32

Main motor power : 63 kW,

Speed of band feeding :10 и 15 m/Min,

Distence between uprights : 4000 mm,

Distance between centres of position : 400 mm,

Stroke of main ram : 420 mm,

Max. distance between bed and die holder : 100 mm,

Thickness of stamp plate : 80 mm,

Max. distance between bed and side ram : 980 mm,

Max diametr of round workspcs. : 375 mm,

Dimensions of clamp surface of:

Bed : 1090 х 1730 mm,

Ram : 355 х 450 mm,

Stamp plate : 3300 х 1000 mm,

Max width of band : 500 mm,

Max thickness of band : 2 mm,

Max feeding stroke by one ram stroke : 400 mm.
