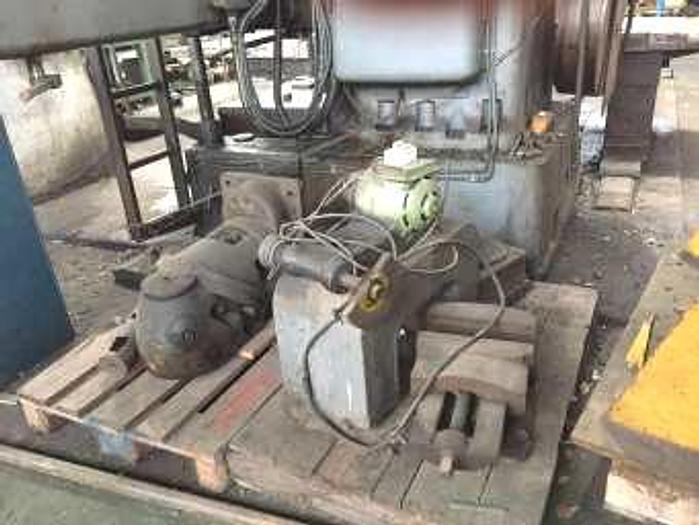

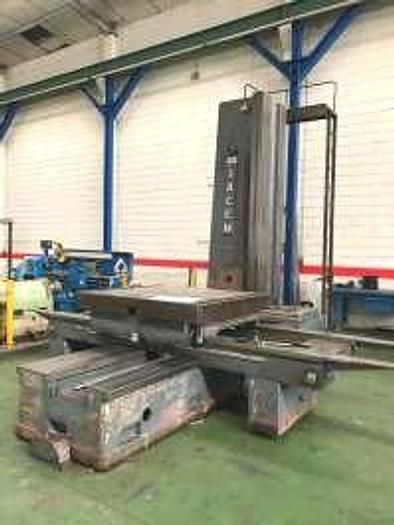

Borer Horizontal Table Type MST130

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSacem
ModelMST130
ConditionUsed
Stock NumberMA0419
Item conditionGood working condition
Capacity tons130

Description

Spindle dia : 130 mm,

Longitudinal Travel : 1100 mm,

Maximum Boring Diameter : 1300 mm,

Maximum Milling Diameter : 400 mm,

Bed Width : 1060 mm,

Rotary Table Dimensions : 1400 x 1620 mm,

Longitudinal Travel : 2100 mm,.

Cross Travel : 2000 mm,

Vertical Travel : 0-2000 mm,

Facing Head Diameter : 680 mm,

Maximum Load On The Table : 8 tons.



Speeds:

Speeds Of Main Spindle : 18,

Min. Maximum Speeds : 5 – 1000 Rpm.,

Facing Head Speeds : 18,

Min. Maximum Speeds : 5 – 175 Rpm.,

Fast Feeds : 2000 Mm./Min.

Motor Power : 25 Hp,

Approx Weight : 22.5 tons.
