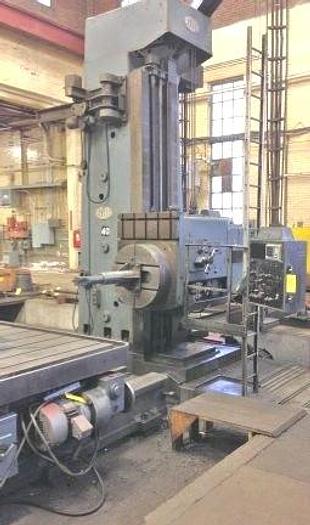

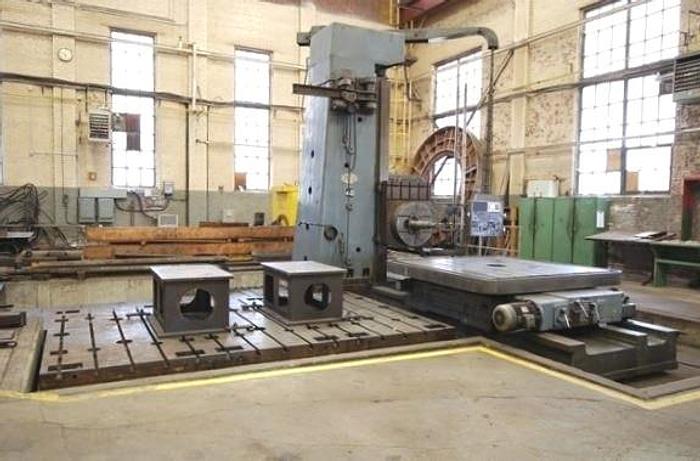

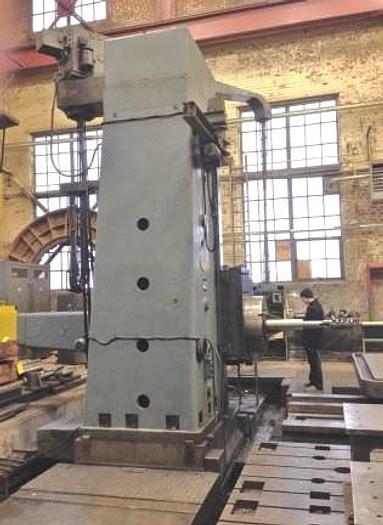

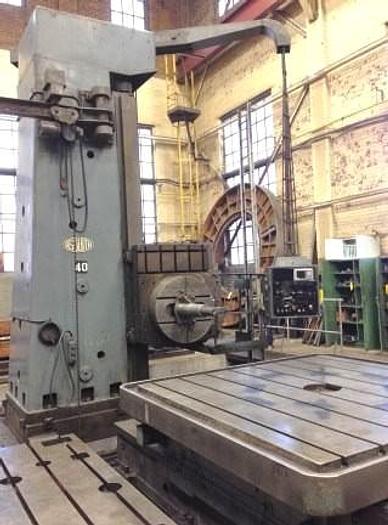

Borer Horizontal Floor Type 4FB

Price

Contact us for price

orCall +91 9819336548

Specifications

ManufacturerAsquith
Model4FB
ConditionUsed
Stock NumberMA0448
Item conditionGood Condition
Capacity tons152

Description

Spindle Diameter : 152 mm,

Spindle Taper : #50,

Headstock Vertical Travel, Y-Axis : 2438 mm,

Column Travel, X-Axis : 6096 mm,

Spindle Travel, Z-Axis : 1524 mm,

Spindle Speeds, Infinity Variable : 1.5-600 RPM,

Facing Head Speeds : 0.5-215 RPM,

Spindle Feeds : 0.004-5080 mm/rev,

Facing Head Feeds : 0.004-51 mm/rev,

Feeds, X & Y Axes : 0.018-1524 mm/min,

Milling Feeds, X & Y Axes : Inf Variable,

Rapid Traverse : 3810 mm/min,

Approximate Overall Height : 5994 mm,

Floor Space : 4572 x 10363 mm.


KITCHEN & WADE INFEEDING ROTARY TABLE:

Table Size : 2438 x 2438 mm,

Table Infeed :1829 mm,

Table Weight Capacity : 20335 KG,

Rotation Rapid Traverse :1 RPM,

Linear Feeds : 2540 mm/min,

Overall Table Height : 1105 mm,

Overall Width : 3531 mm,

Circular Milling Feeds : 0.00028-25 mm/rev,

Circular Rotation Feeds : Inf Variable.


EQUIPPED WITH:

Full Pendant Controls,

3-Axis Fagor Digital Readouts,

813 mm Diameter Facing Head 1270 mm Capacity,

Right Angle Head with 1219 mm Reach,

Infeeding Power Rotary Table,

Rotary Table Circular Milling Feeds,

Thread Cutting Attachment With Change Gears,

Hydrostatic Lubrication,

Way Covers,

22 KW Spindle Drive Motor.


FEATURES:

Infeeding Rotary Table with Milling Feeds,

Heavy Duty Facing Head,

Heavy Duty Right Angle Head.
