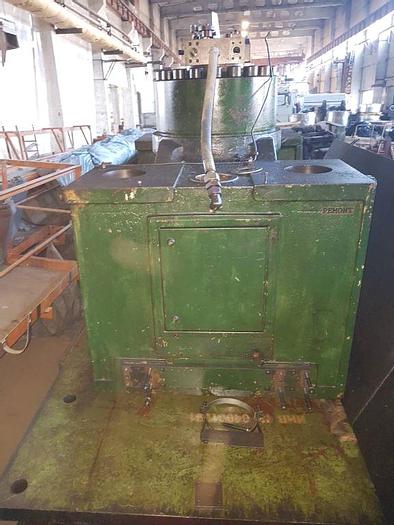

Press Fineblanking Mechanical HFA800
Sold
Specifications
| Manufacturer | Abe Seiki,Japan |
| Model | HFA800 |
| Year | 1977 |
| Condition | Used |
| Stock Number | MA0450 |
| Item condition | Good Condition |
| Capacity tons | 800 |
Description
MAIN RAM
Total force (nominal): 800 tons,
Slide stroke: 200 mm,
Bb0mnyqfes,
V-RING
Nominal force: 400 tons,
Slide stroke: 40 mm,
CLAMP
Nominal force: 200 tons,
Slide stroke: 40 mm,
TOOL AREA
Lower table width: 1000 mm,
Lower table depth: 1000 mm,
Upper table width: 1000 mm,
Upper table depth: 1200 mm,
Tool shut height: 350-450 mm,
Clamping area distance: 550 mm,
Material distance from upper table: 180-320 mm,
POWER
Total power requirement: 135 kW,
Main drive: 110 kW,
