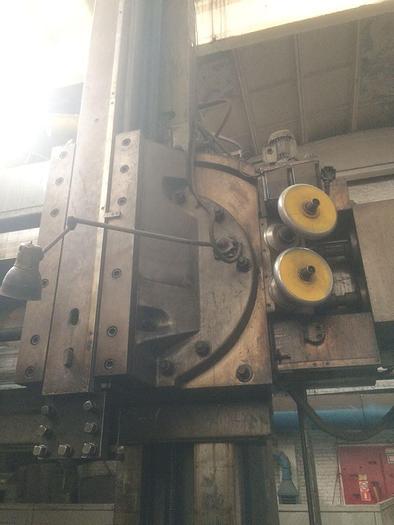

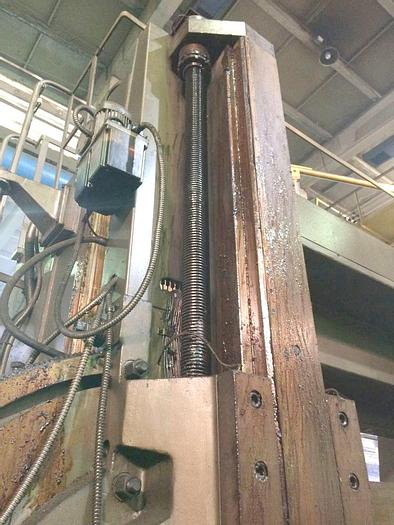

Lathe Vertical Turning 1L532

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerSedin Russia
Model1L532
Year1992
ConditionUsed
Stock NumberMA0453
Item conditionGood Condition
Capacity tons3150

Description

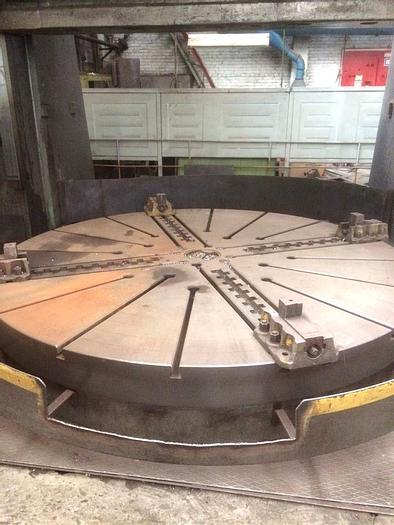

Table diameter : 2800 mm,

Swing : 3150 mm,

Max. workpiece height: 1600 mm,

Max table loading: 16 tons,

Max. ram travel: 1200 mm,

Max. horizontal travel of carriage: 1720 mm,

Carriage inclination angle: 30 dgr,

Carriage feeds number: 16,

carriages feeds range: 0.09 - 16 mm/rev,

Feeds of traversal beam: 360 mm/min,

Max. distance between ram's axis: 360 mm,

Distance between table and ram: 0 - 1780 mm,

Distance between table and lower surface of traversal beam: 400 - 1640 mm,

Revolution speeds number: 18,

Table speeds: 1.25-63 rpm,

Main engine power: 55 kW,

Dimensions: 5485 x 6120 x 4910 mm,

Total weight: 41.5 tons.
