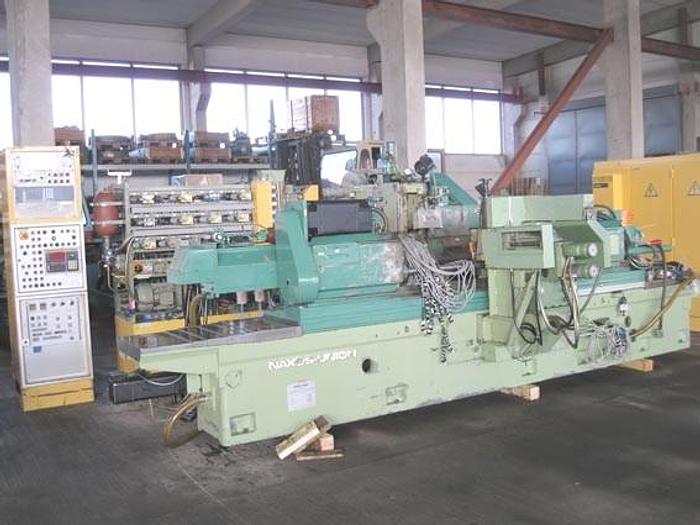

Grinder Crankshaft CNC KHSA1500NC

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerNaxos Union,Germany
ModelKHSA1500NC
Year1984
ConditionUsed
Stock NumberMA0457
Item conditionGood condition,under power
Capacity tons0

Description

Max. crankshaft length : 1500 mm,

Max. distance between holders : 1500 mm,

Min. distance between holders : 130 mm,

Max. weight of work piece : 175 kg,

Max. oscillating diameter of crankshaft : 500 mm,

Max. grinding diam with new grinding wheel diam 1060 mm : 250 mm,

Min. grinding diam with used grinding wheel diam 765 mm : 0 mm,

Stroke radius, adjustable : 60-90 mm,

Max. shaft diameter for holders : 120 mm,

Axial adjustment of grinding spindle : 10 mm,

Grinding spindle motor : 22 kW,

Motor speeds, adjustable : 900-1600 U/min,

Grinding wheel – peripherical speed : 43-45 m/s,

Max.torque of work piece engine : 65 Nm,

Workpiece speed range : 50 – 150 U/min,

Max.torque of tablemotor : 14 Nm,

Table travel speeds : to 5000 mm/min,

Space requirement : 6700 x 4800 mm,

Weight of machine : 17 tons.

Equipped with 4 grinding wheels centre, we also have new grinding wheels we can deliver with the machine.

Lots of spare parts.
