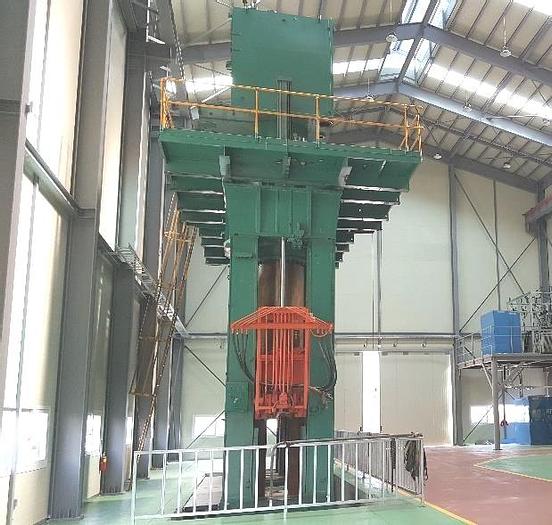

Press Extrusion Hydraulic Erie

Four columns push down Prestress column :

Forging capacity : 2000 tons,

Main ram dia : 1100 mm,

Pressing stroke : 2380 mm,

Return capacity : 200 tons,

Moving slide advance : 300 mm/sec,

Forging/ Extrusion speed : 1-40 mm/sec(Only pump),

Return speed : 1-300 mm/sec,

Daylight : 3650 mm,

Distance between columns clear width : 2000 mm × 1100 mm,

Bottom bolster size : 1900 mm × 1370 mm,

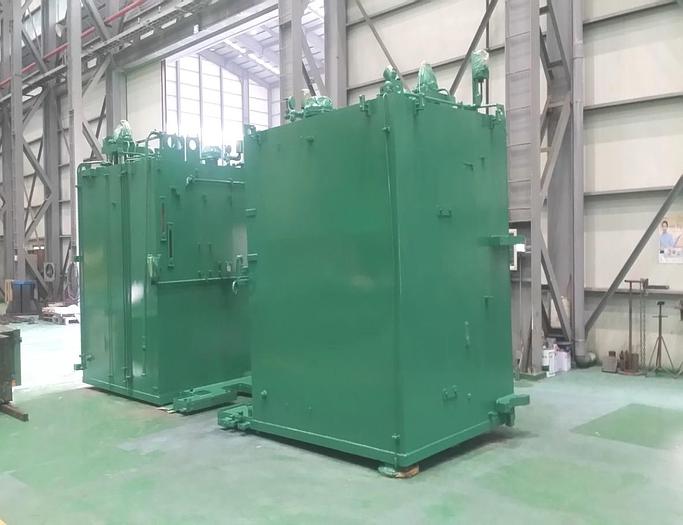

Hydraulic system :

2 sets x Oilgear PVV54 (new),

2 sets x Kawasaki LX500 (new),

2 sets x 525 Kw, 2300 volts, 1200rpm GE, Double and shaft,

Electric control : Allen-Bradley (new),

Knock out capacity : 250 tons,

Knock out stroke : 1200 mm,

Top die slide shuttle system : 3 positions x 800 mm,

Including of:

Retrofit, 2018

All hydraulic components with pumps

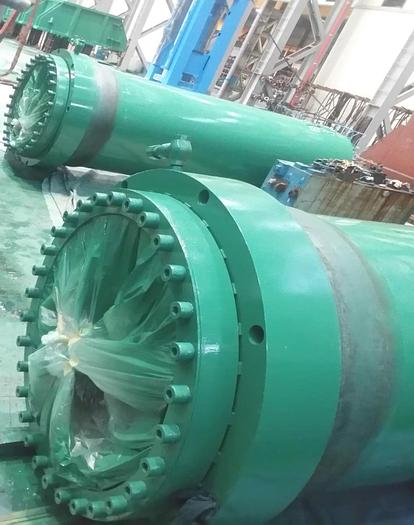

All cylinders, packing, seal

PLC Control System with HMI

With 1 year warranty

Fully Refurbishment 2020.
