Press Hydraulic SITI1500

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerMagnum
ModelSITI1500
ConditionUsed
Stock NumberMA0472
Item conditionGood working condition
Capacity tons1500

Description

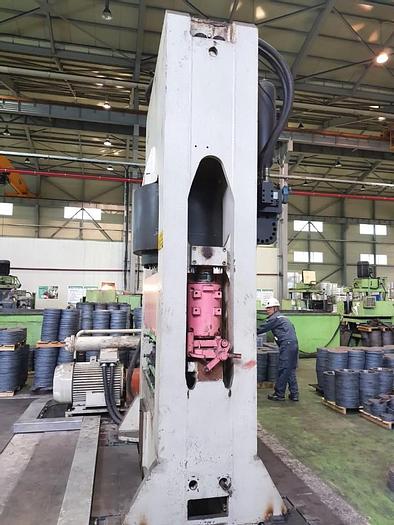

Machine is short stroke hyd press.

Capacity : 1500 tons,

Max. shakeout force : 24 tons,

Bed size - Approx : 1350 mm x 700 mm,

Die height - 720 mm,

Stroke - 210 mm,

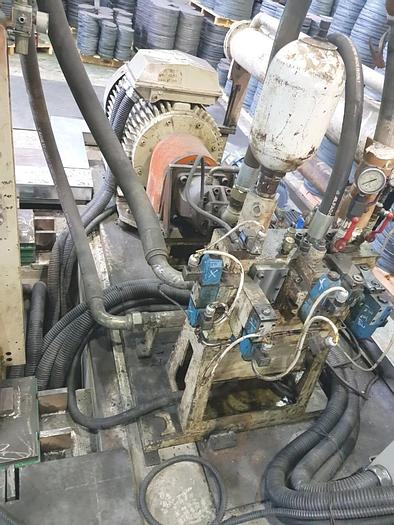

Press in the oleodynamic circuit : 145 bar - 145 MPa,

Max. pressure in the oleodynamic (Pressing Cylinder) : 360 bar - 36 MPa,

Oil capacity of the system : 500 kg,

Viscosity of the oil : 32 cSt,

Viscosity index of the oil : 163,

Max. pressurizing pressure : 15 bar,

Power of the el. motor for oleod. central unit : 975 kW,

Die heating power : 34 kW,

Optional power : 18 kW,

Oil heating power : 2 kW,

Total installed power : 1353 kW,

Total weight (without the dies) : 36000 kg.

Copy of manual book.
