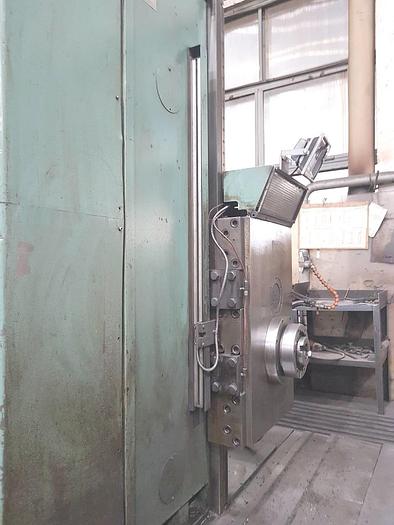

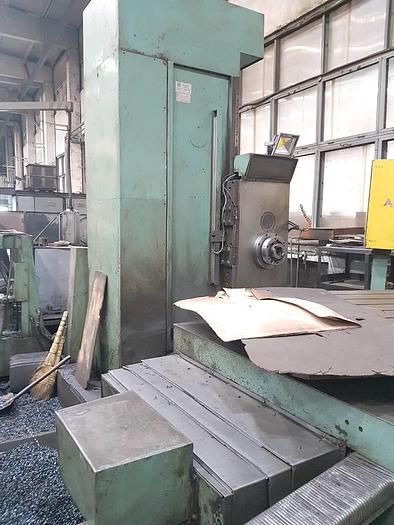

Borer Horizontal Table Type CNC Russian 2B622F4

Price

Contact us for price

orCall +91 9920651051

Specifications

ManufacturerRussian
Model2B622F4
Year1991
ConditionUsed
Stock NumberMA0515
Item conditionGood working condition
Capacity tons110

Description

Type : 2C42


Rotary table :

Dimensions of the working surface : 1250 X 1250 mm,

Table load capacity 5000 kg,


Boring spindle :

Diameter : 110 mm (130) *

ISO 50 spindle cone,

spindle speed limits (rpm) : 6 - 2000 (2500) *


The greatest displacement :

Cross table : X : 1250 mm,

Table longitudinally : Z : 1000 mm,

Spindle head vertically : Y : 1000 mm,

Spindle : W : 710 mm,

rotary table, B, hail unlimited.


Limits of innings :

X, Y, Z, W, : 1 - 9000 mm / min,

Speed fast installation displacement,

X, Y, Z, W : 9000 mm / min,

B (rpm) 3.2

The highest point on the boring bar : 1800 Hm,

Most feed force: X, Y, Z, W (H) 12 000,

Main drive power : 20 KW,

Overall dimensions :

length : 7600 mm,

width : 3750 mm,

height : 3250 mm,

Weight : 17 tons.


Milling volume,

Contour milling planes,

Machining the inner and outer cones,

Milling planes, grooves, ledges,

Drilling, reaming, countersinking and centering holes,

Boring holes and deployment,

Threading holes taps and cutter,

Turning surfaces, treatment of circumferential grooves and facing removable face plate,

Processing enclosure with four sides and when completing the corner milling head with the fifth side.
