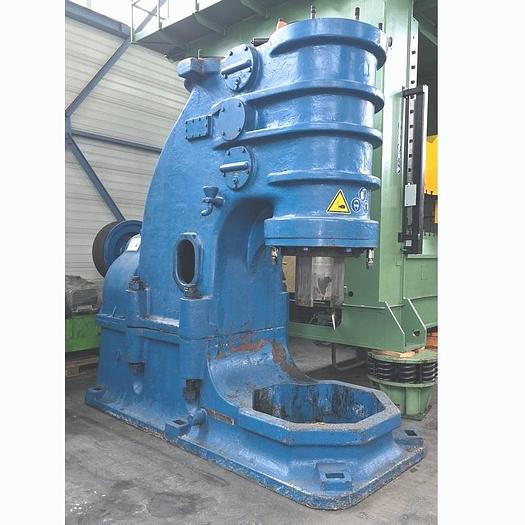

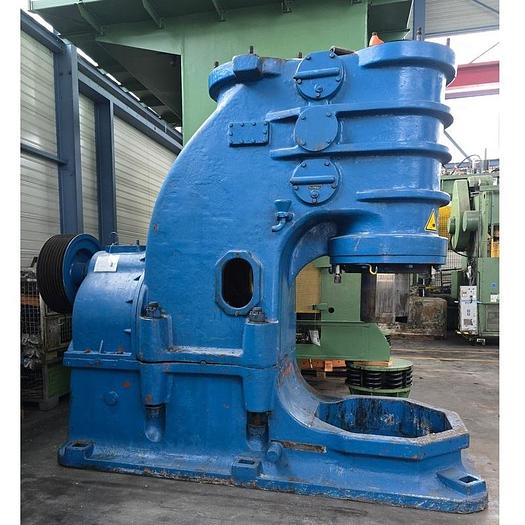

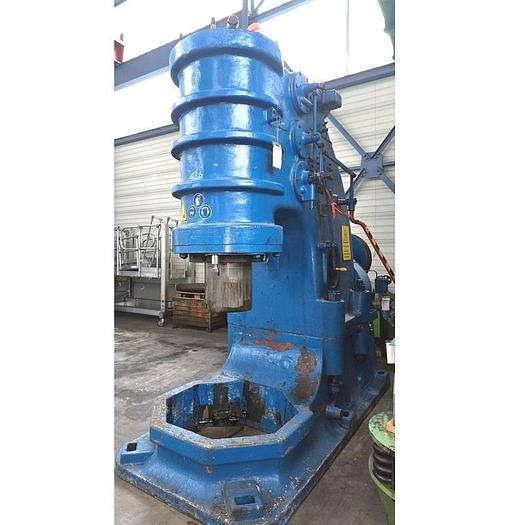

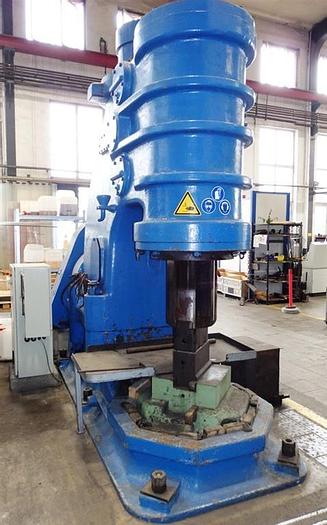

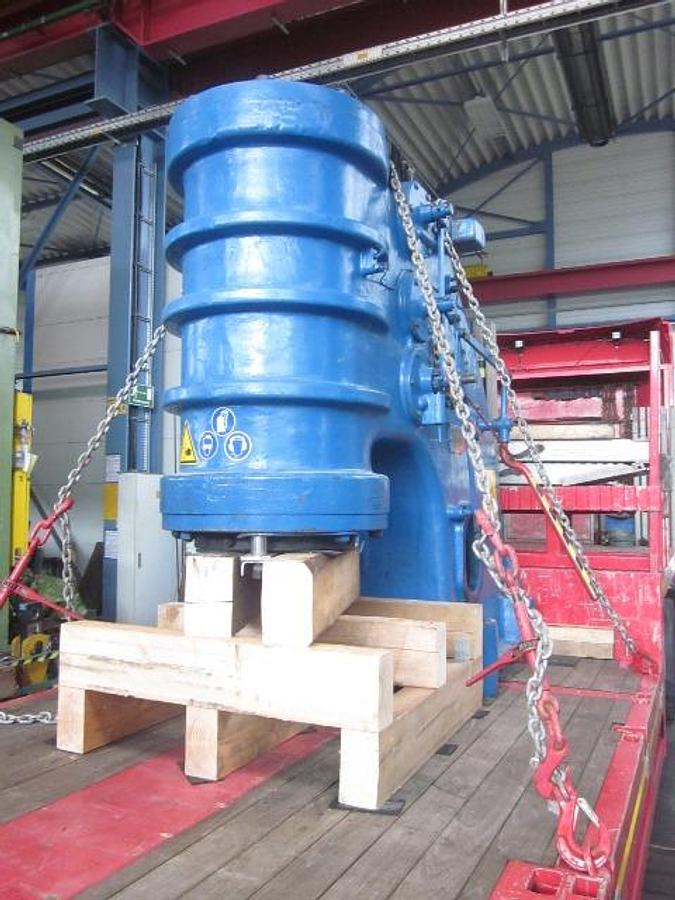

Hammer Drop Forging Open Die Beche L9

Impact energy : 2040 kJ,

Ram hammer stroke : 660 mm,

No. of strokes : 100 / min,

Ram hammer weight :7500 kg,

Distance lower die block / ram gudeway : 660 mm,

Throat : 750 mm

Steel forging - rectangular up to : 240 mm,

Steel forging - diameter up to : 270 mm,

Power requirement : 75 kW,

Weight of hammer : 16.5 tons,

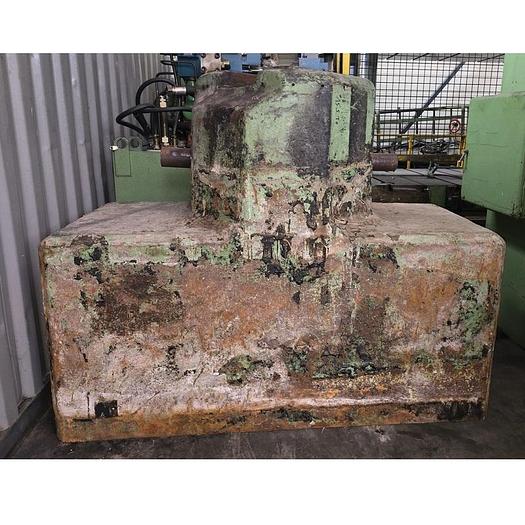

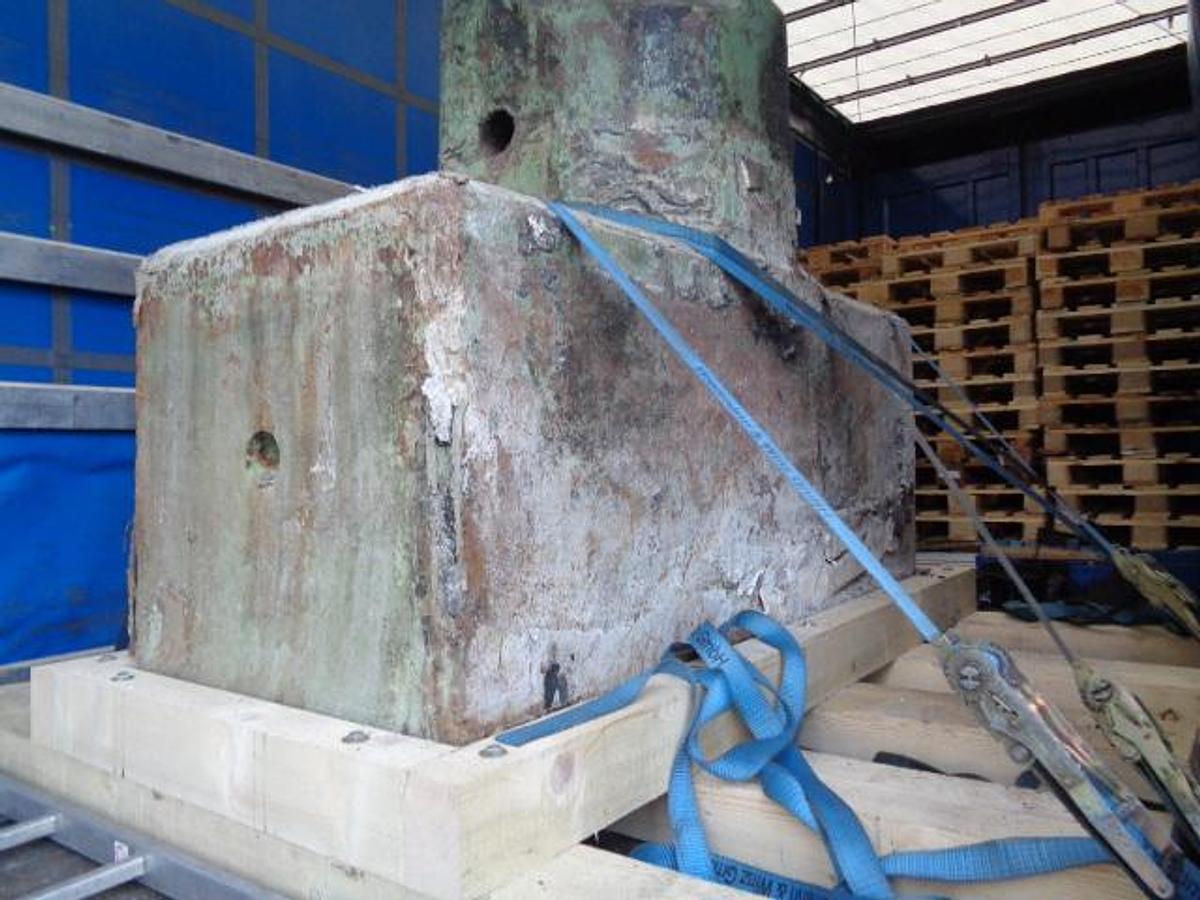

Weight of anvil : 15.5 tons,

Dimensions (W x D x H) : 3200 x 1450 x 3450 mm,

Weight : 32 tons.

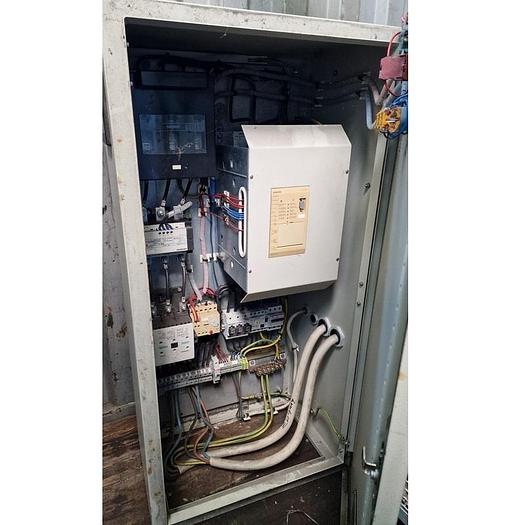

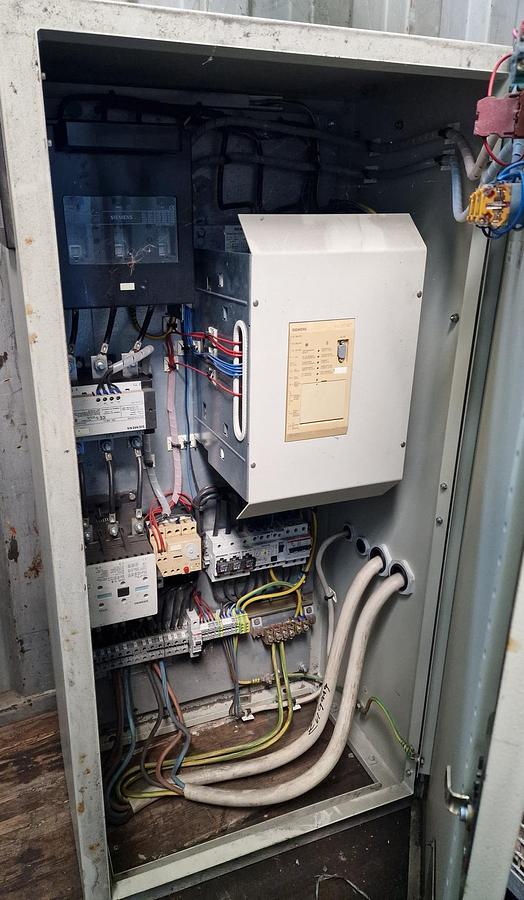

Control : konventionell.

Mode of operation pneumatic,

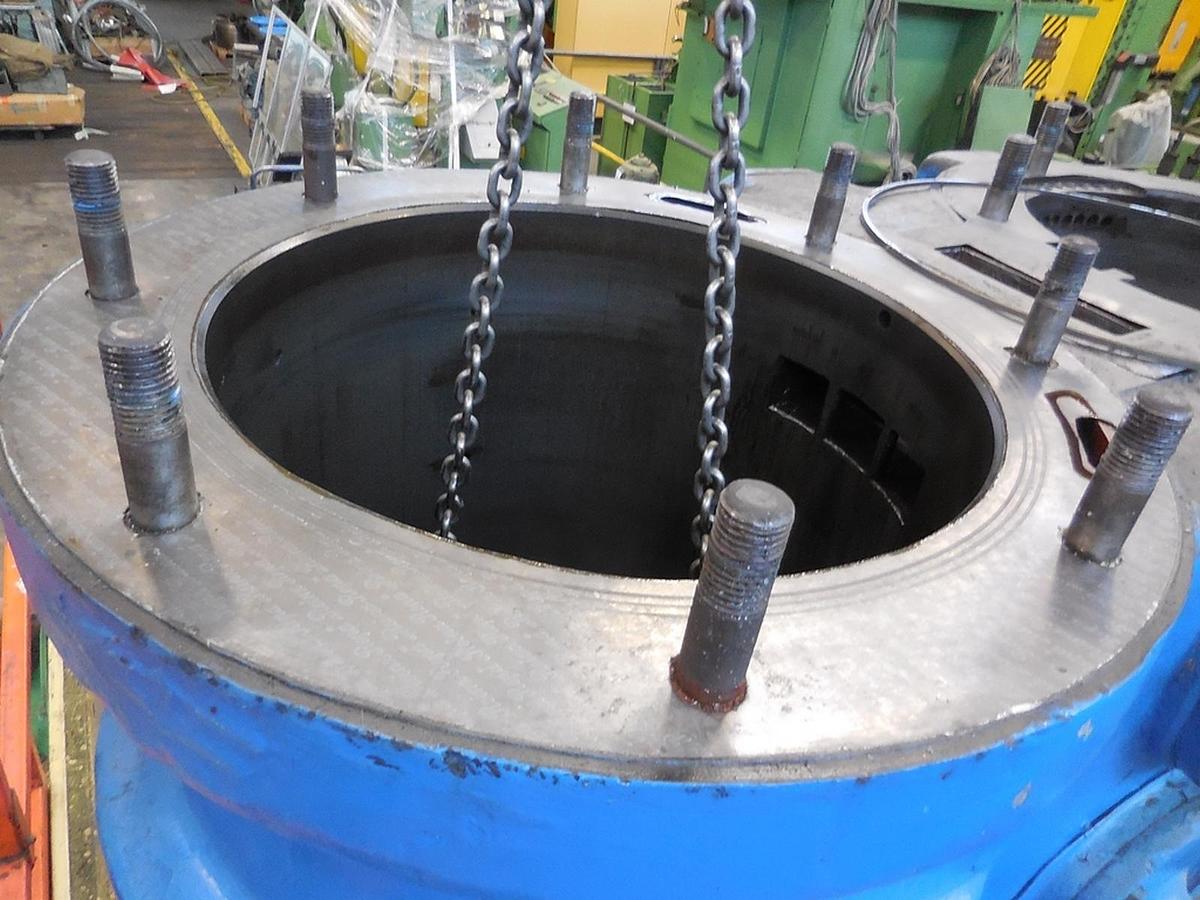

Mechanical part or complete overhaul possible on demand.
