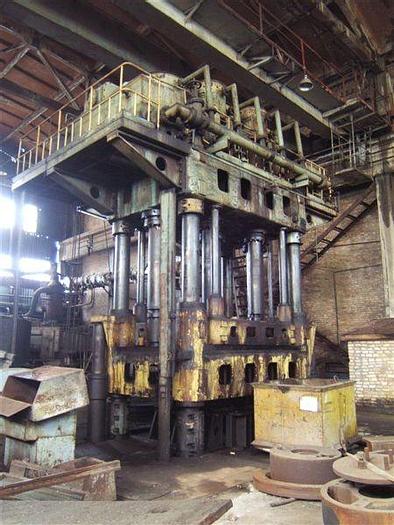

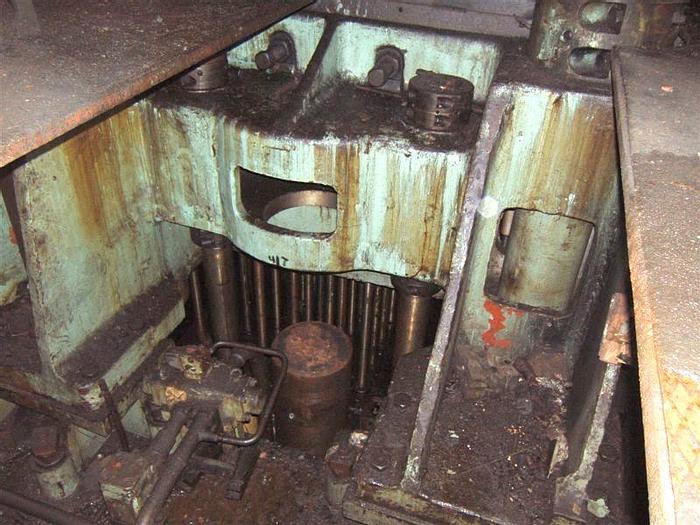

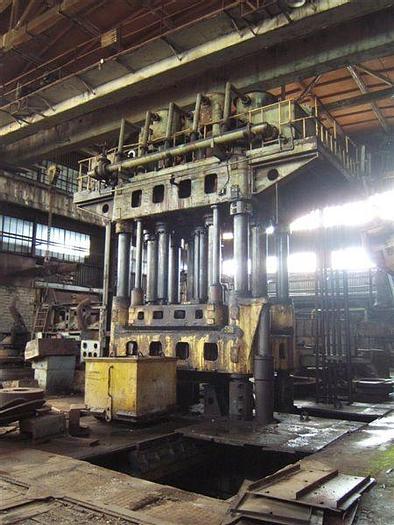

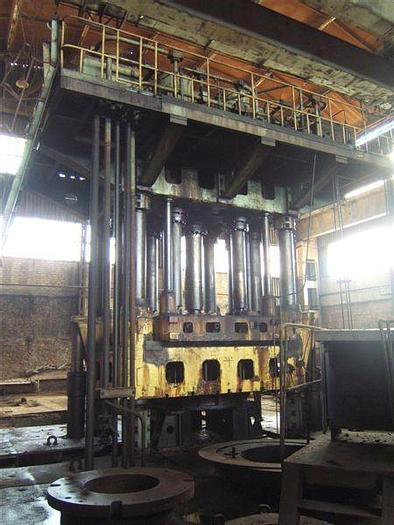

Press Sheet Stamping Hydraulic Double Action P233A

Double Action Press - Dish End applications for making bottom to vessels, reservoirs, oilers for hot and cold stamping of sheets.

The ram nominal force total 1640 tons

Drawing Ram :

1 step 280 tons,

2 step 560 tons,

3 step 800 tons,

Clamping Ram :

1 step 250 tons,

2 step 500 tons,

Nominal force of lift cylinders : 200 tons,

The ram travel : drawing ram 1700 mm, clamping ram 1700 mm,

Max clearance between table and drawing ram : 260 mm,

Table dimensions 2650 x 2650 mm,

Clear aperture between stroke limiters : 1620 x 2920 mm,

Nominal force of table travel : 50 tons,

Table travel 2650 mm,

Nominal force of hydraulic cushion (central knockout) : 250 tons,

Hydraulic cushion travel over table : 700 mm,

Permissible load on one guide pin max : 20 tons,

Rams velocity : at double action additional stroke 200 mm/s,

Working stroke (for drawing ram only) : 32 mm/s,

Back stroke : 135 mm/s, at single acting additional stroke : 200mm/s,

Working stroke 10 mm/s, Back stroke 135 mm/s,

velocity of table move 264 mm/s,

Velocity of hydraulic cushion movement : upward 95 mm/s, downwards 200 mm/s,

Velocity of side ejector : upwards 264 mm/s, downwards 275 mm/s,

Velocity of side ejector : upwards 264 mm/s, downwards 275 mm/s,

Nominal pressure : 20 MPA,

Main pump motor power : 132 kW,

Total efficiency of main pumps : 880 l/min,

Calculated total power of all electric motors : 299,5 kW,

Overall dimensions : 15220 x 8620 x 7730 mm,

Mass : 280 tons.
